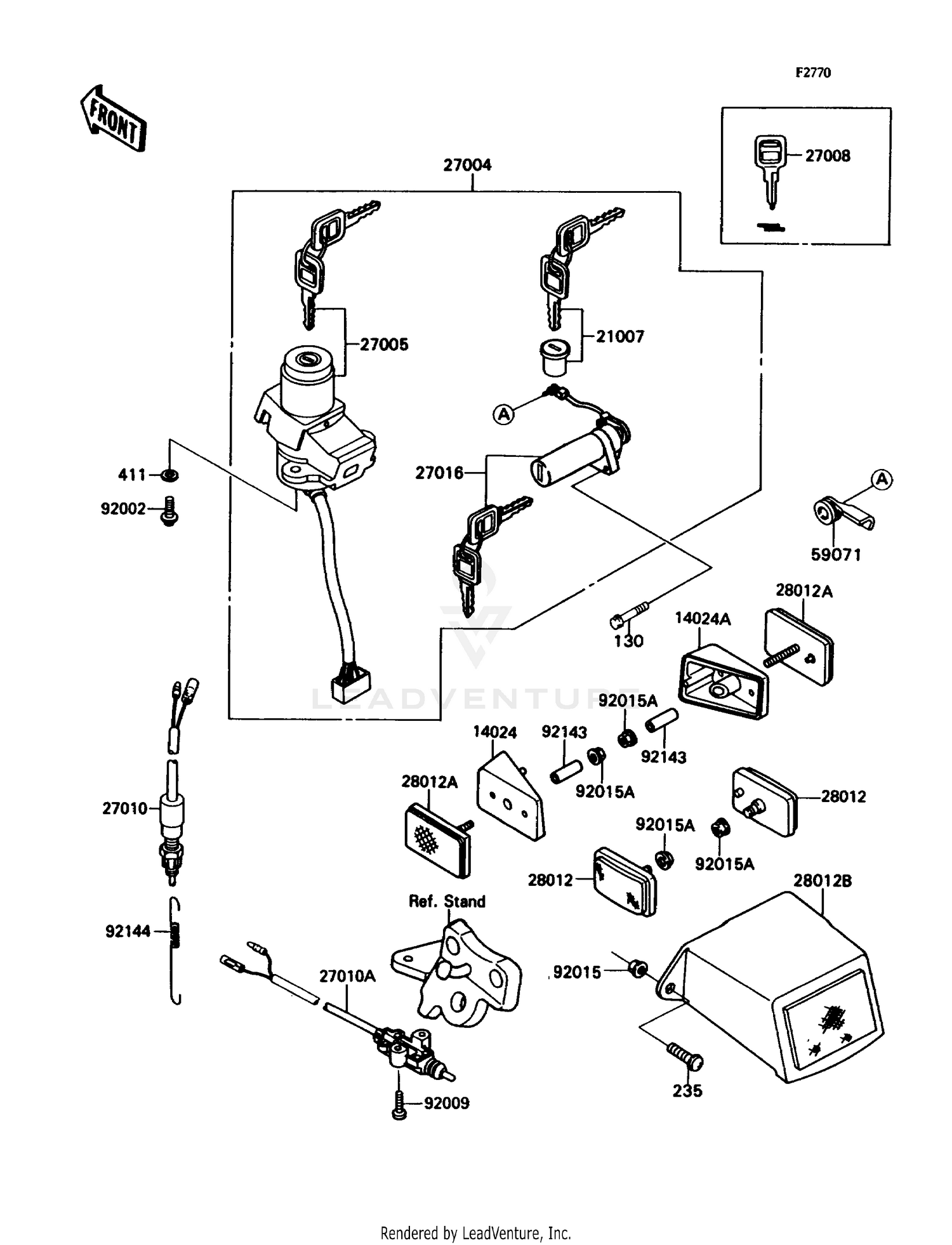

| Ref | Part Number | Description |
|---|
| 130 |
130H0530 |
BOLT-FLANGED,5X30 Price: $3.76 |
| 235 |
235C0620 |
SCREW-PAN-WP-CROS Price: $3.72 |
| 14024 |
14024-1812 |
COVER,REFLECTOR,LH Price: $11.73 |
| 14024A |
14024-1813 |
COVER,REFLECTOR,RH Price: $11.73 |
| 21007 |
21007-5037 |
ROTOR,LOCK,TANK CAP This part replaces 21007-5027. Price: $92.36 |
| 27004 |
27004-5357 |
SWITCH-ASSY Price: $373.05 |
| 27005 |
27005-5081 |
SWITCH-ASSY-IGNITION Price: $235.86 |
| 27010 |
27010-1479 |
SWITCH,REAR BRAKE This part replaces 27010-1093. Price: $30.06 |
| 27010A |
27010-1223 |
SWITCH,SIDE STAND Price: $72.14 |
| 27016 |
27016-5152 |
LOCK-ASSY., SEAT This part replaces 27016-5151. Price: $67.22 |
| 28012 |
28012-1088 |
REFLECTOR-REFLEX This part replaces 28012-1054. Price: $22.46 |
| 28012A |
28012-1064 |
REFLECTOR-REFLEX Price: $24.03 |
| 28012B |
28012-1066 |
REFLECTOR-REFLEX,RR Price: $35.90 |
| 59071 |
59071-1125 |
JOINT Price: $9.13 |
| 92002 |
92153-0967 |
BOLT,TORX,6X16 This part replaces 92002-1333. Price: $2.61 |
| 92009 |
92009-1459 |
SCREW,5X20 Price: $4.38 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM This part replaces 92015-1193. Price: $3.69 |
| 92015A |
92015-1259 |
NUT,FLANGED,5MM Price: $3.92 |
| 92143 |
92143-1231 |
COLLAR,5.6X8X25 Price: $5.33 |
| 92144 |
92144-1283 |
SPRING,REAR BRAKE SWITCH Price: $6.29 |
