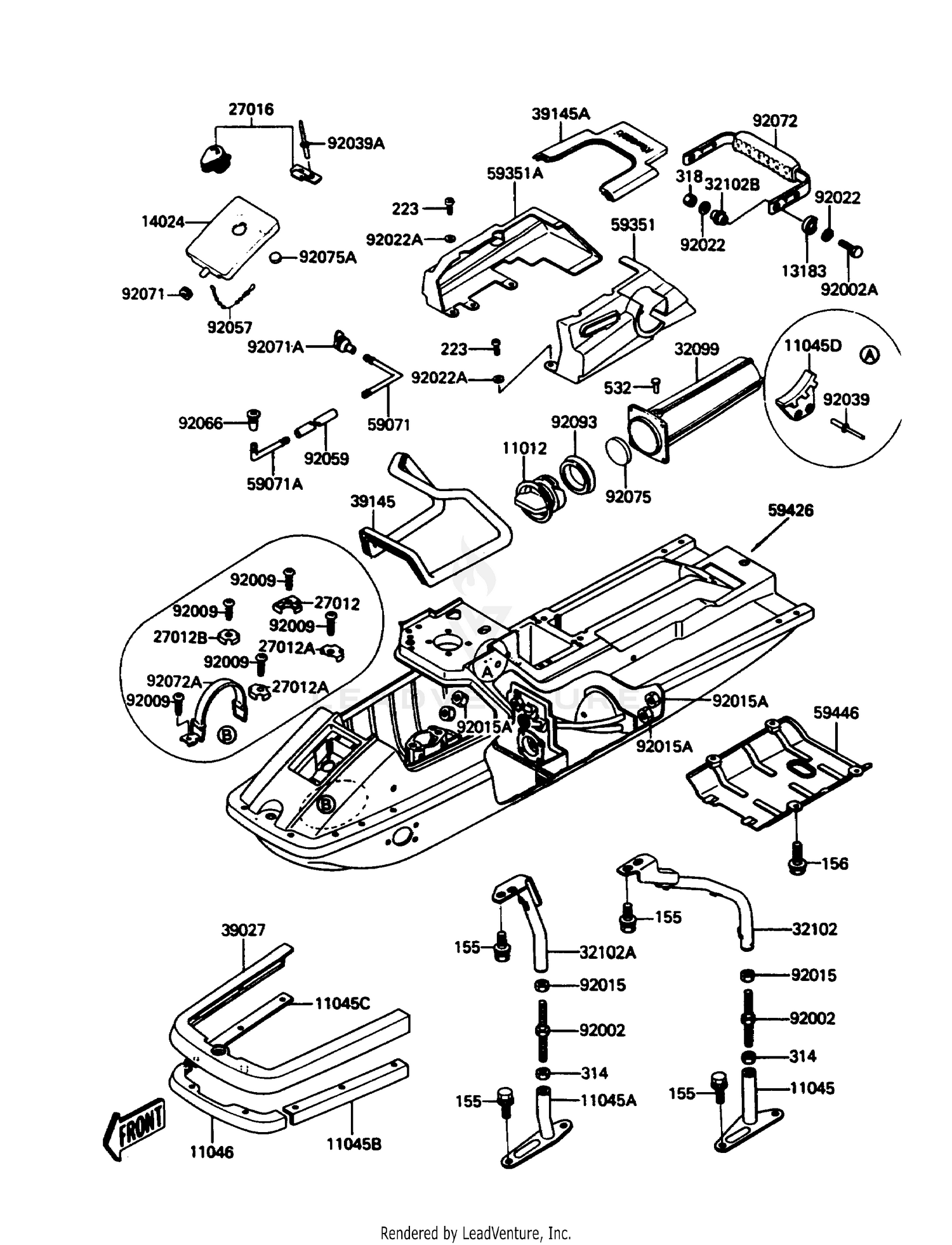

| Ref | Part Number | Description |
|---|
| 155 |
155R0816 |
BOLT-WSP-SMALL,8X16 Price: $5.35 |
| 156 |
156R0622 |
BOLT-WP,6X22 Price: $4.09 |
| 223 |
223R0620 |
SCREW-PAN-WS-CROS,6X2 Price: $4.51 |
| 314 |
314R1000 |
NUT-HEX-FINE,10MM Price: $2.02 |
| 318 |
318R0800 |
NUT-HEX-SMALL Price: $4.18 |
| 532 |
532R0508 |
RIVET-FLAT Price: $2.31 |
| 11012 |
11012-3708 |
CAP,FIRE EXT Price: $9.10 |
| 11045 |
11044-3710 |
BRACKET,DECK,LH Price: $84.10 |
| 11045A |
11044-3711 |
BRACKET,DECK,RH Price: $80.94 |
| 11045B |
11045-3711 |
BRACKET,BUMPER,LH Price: $20.48 |
| 11045C |
11045-3712 |
BRACKET,BUMPER,RH Price: $20.48 |
| 11045D |
11045-3755 |
BRACKET Price: $15.03 |
| 11046 |
11046-3818 |
BRACKET,BUMPER,CNT Price: $34.16 |
| 13183 |
13169-3714 |
PLATE Price: $12.21 |
| 14024 |
14024-3731-8C |
COVER,TANK CAP,WHITE Price: $23.12 |
| 27012 |
27012-3705 |
HOOK Price: $6.32 |
| 27012A |
27012-501 |
HOOK Price: $4.83 |
| 27012B |
27012-502 |
HOOK Price: $4.73 |
| 27016 |
27016-3705 |
LOCK-ASSY Price: $43.96 |
| 32099 |
32099-3705 |
CASE,FIRE EXT Price: $18.11 |
| 32102 |
32033-3718 |
PIPE,DECK,LH Price: $148.59 |
| 32102A |
32033-3719 |
PIPE,DECK,RH Price: $148.59 |
| 32102B |
32102-3704 |
PIPE Price: $10.90 |
| 39027 |
39027-3710 |
BUMPER-FRONT Price: $254.01 |
| 39145 |
39145-3701 |
TRIM-SEAL Price: $98.92 |
| 39145A |
39145-3702 |
TRIM-SEAL,DECK Price: $21.06 |
| 59071 |
59071-3706 |
JOINT Price: $9.32 |
| 59071A |
59071-3733 |
JOINT This part replaces 59071-3714. Price: $7.95 |
| 59351 |
59351-3708-8C |
DECK,LH Price: $43.31 |
| 59351A |
59351-3709-8C |
DECK,RH Price: $41.35 |
| 59426 |
59426-5530-8C |
HULL-COMP,J.WHITE This part replaces 59426-3774-8C. Price: $1,490.76 |
| 59446 |
59446-3703 |
COVER-JET PUMP Price: $171.88 |
| 92002 |
92002-3731 |
BOLT,10MM Price: $22.05 |
| 92002A |
92002-3742 |
BOLT,8X30 Price: $7.99 |
| 92009 |
92011-561 |
SCREW 0.22 X 0.563 Price: $0.90 |
| 92015 |
92015-3737 |
NUT,10MM Price: $6.58 |
| 92015A |
92015-3738 |
NUT,20MM Price: $7.31 |
| 92022 |
92022-3730 |
WASHER,8.5X19X1.2 Price: $4.31 |
| 92022A |
92022-567 |
WASHER Price: $2.67 |
| 92039 |
92039-3002 |
RIVET Price: $5.82 |
| 92039A |
92039-3714 |
RIVET Price: $0.95 |
| 92057 |
92057-3701 |
CHAIN,COVER Price: $22.98 |
| 92059 |
92059-3731 |
TUBE,2.5X5.8X270 This part replaces 92059-3765. Price: $9.11 |
| 92066 |
92066-3706 |
PLUG Price: $5.14 |
| 92071 |
92071-3733 |
GROMMET Price: $4.14 |
| 92071A |
92071-3736 |
GROMMET Price: $10.43 |
| 92072 |
92072-3711 |
BAND,TANDEM Price: $135.72 |
| 92072A |
92072-3723 |
BAND Price: $34.19 |
| 92075 |
92075-3719 |
DAMPER Price: $9.40 |
| 92075A |
92075-3760 |
DAMPER Price: $6.12 |
