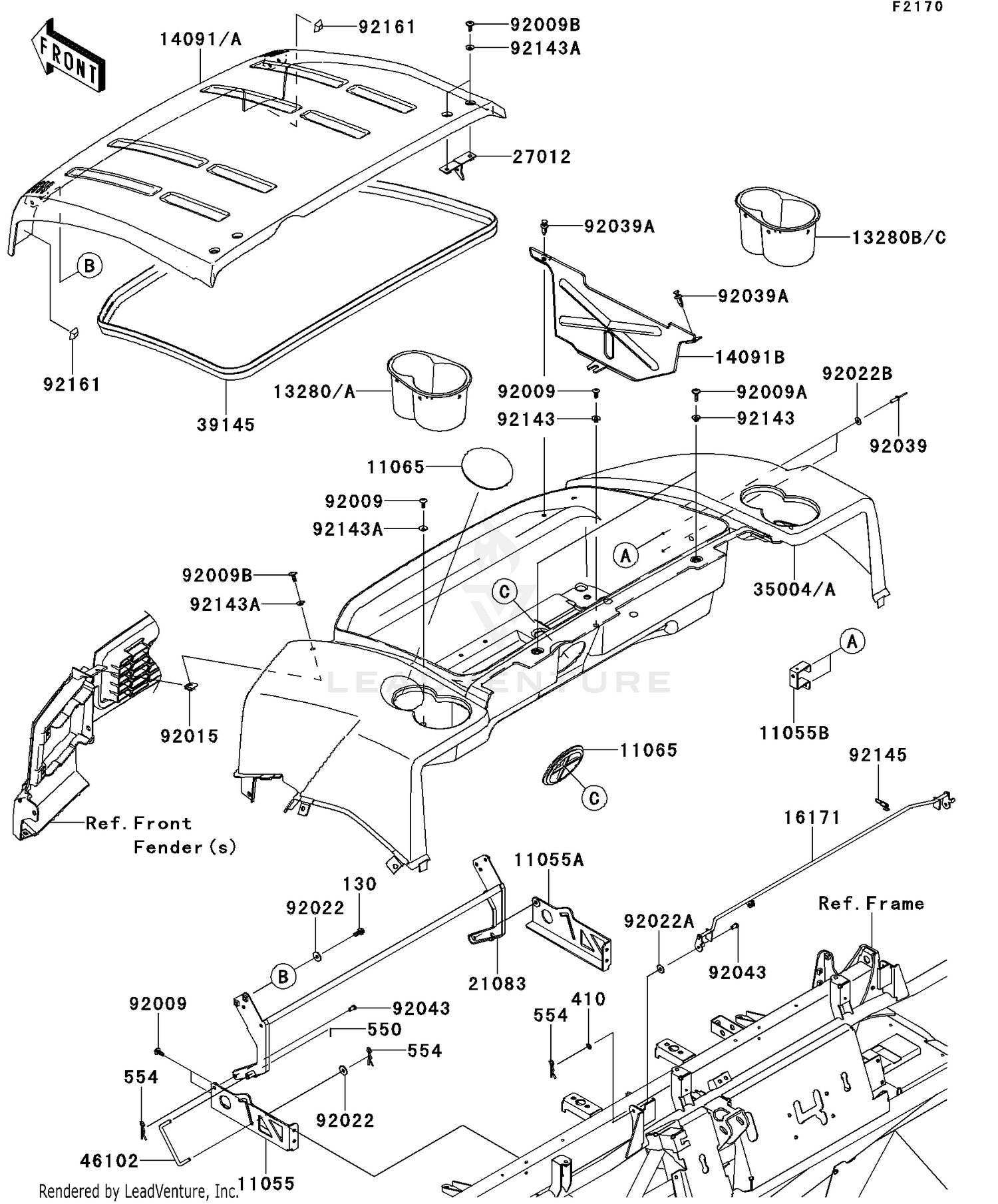

| Ref | Part Number | Description |
|---|
| 130 |
130BB0616 |
BOLT-FLANGED,6X16 Price: $2.06 |
| 410 |
410AA0600 |
WASHER-PLAIN-SMALL Price: $1.31 |
| 550 |
550AA1615 |
PIN-COTTER,1.6X15 Price: $2.51 |
| 554 |
554DA0600 |
PIN-SNAP,1.2X21.2 Price: $0.95 |
| 11055 |
11055-0037 |
BRACKET,HINGE,LH Price: $22.13 |
| 11055A |
11055-0038 |
BRACKET,HINGE,RH Price: $22.13 |
| 11055B |
11055-0124 |
BRACKET,RESERVOIR TANK Price: $4.78 |
| 11065 |
11065-1053-6Z |
CAP,F.BLACK Price: $8.40 |
| 13280 |
13280-0265-16L |
HOLDER,CUP HOLDER,LH,D.R.RED Price: $13.63 |
| 13280A |
13280-0265-286 |
HOLDER,CUP HOLDER,LH,W.GREEN Price: $14.01 |
| 13280B |
13280-0266-16L |
HOLDER,CUP HOLDER,RH,D.R.RED Price: $13.63 |
| 13280C |
13280-0266-286 |
HOLDER,CUP HOLDER,RH,W.GREEN Price: $14.01 |
| 14091 |
14091-0829-16L |
COVER,FRONT FENDER,D.R.RED Price: $177.69 |
| 14091A |
14091-0829-286 |
COVER,FRONT FENDER,W.GREEN Price: $268.02 |
| 14091B |
14091-1715 |
COVER,RESERVOIR TANK Price: $30.42 |
| 16171 |
16171-0013 |
LINK Price: $35.19 |
| 21083 |
21083-0051 |
ARM,HOOD Price: $75.54 |
| 27012 |
27012-0119 |
HOOK,HOOD Price: $5.68 |
| 35004 |
35004-0096-16L |
FENDER-FRONT,CNT,D.R.RED Price: $330.10 |
| 35004A |
35004-0096-286 |
FENDER-FRONT,CNT,W.GREEN Price: $345.47 |
| 39145 |
39145-0032 |
TRIM-SEAL,L=2350 Price: $46.93 |
| 46102 |
46102-0103 |
ROD Price: $4.09 |
| 92009 |
92009-1166 |
SCREW,TAPPING,6X16 Price: $5.52 |
| 92009A |
92009-1256 |
SCREW,6X22,BLACK Price: $2.78 |
| 92009B |
92009-1694 |
SCREW,6X16 This part replaces 92009-1621. Price: $3.92 |
| 92015 |
92015-1678 |
NUT,CLAMP,6MM Price: $5.52 |
| 92022 |
92022-1346 |
WASHER,6.5X20X1.6,BLACK Price: $0.49 |
| 92022A |
92022-1545 |
WASHER,7X18X1.2 Price: $1.03 |
| 92022B |
92022-1949 |
WASHER,4.3X12.5X1 Price: $3.60 |
| 92039 |
92039-1150 |
RIVET Price: $3.92 |
| 92039A |
92039-0776 |
RIVET This part replaces 92039-1229. Price: $1.19 |
| 92043 |
92043-1626 |
PIN,6X9 Price: $2.26 |
| 92143 |
92143-1057 |
COLLAR Price: $5.00 |
| 92143A |
92143-1087 |
COLLAR Price: $4.31 |
| 92145 |
92145-0215 |
SPRING Price: $4.55 |
