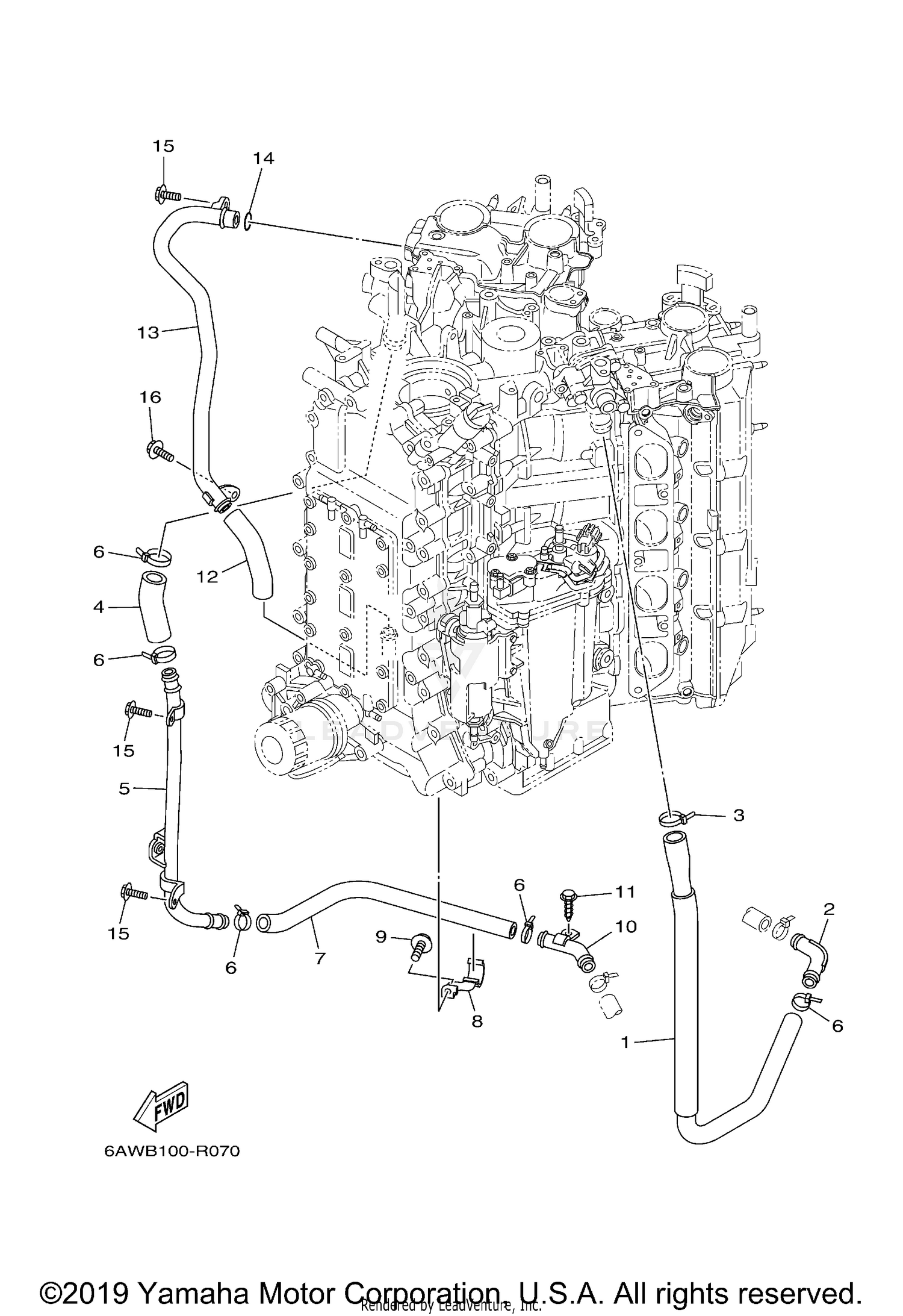

CYLINDER CRANKCASE 4
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AW-1243A-00-00 | HOSE 1 Price: $150.00 |
| 2 | 6AW-12477-00-00 | PIPE 7 Price: $47.25 |
| 3 | 90465-11M59-00 | CLAMP Price: $7.10 |
| 4 | 6AW-1243E-00-00 | HOSE 2 Price: $24.20 |
| 5 | 6AW-12484-00-00 | PIPE 4 Price: $187.50 |
| 6 | 90465-11M59-00 | CLAMP Price: $7.10 |
| 7 | 6AW-1244G-00-00 | HOSE, 4 Price: $33.30 |
| 8 | 6AW-12491-10-00 | CLAMP 1 Price: $18.30 |
| 9 | 97E95-06514-00 | BOLT, HEXAGON W/W Price: $1.25 |
| 10 | 6AW-12476-00-00 | PIPE 6 Price: $109.60 |
| 11 | 90109-06M86-00 | BOLT Price: $1.81 |
| 12 | 6AW-1244J-00-00 | HOSE 6 Price: $26.15 |
| 13 | 6AW-11378-00-00 | HOSE 2 Price: $160.45 |
| 14 | 93210-20802-00 | O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 15 | 95D95-06014-00 | BOLT, FLANGE DEEP Price: $5.35 |
