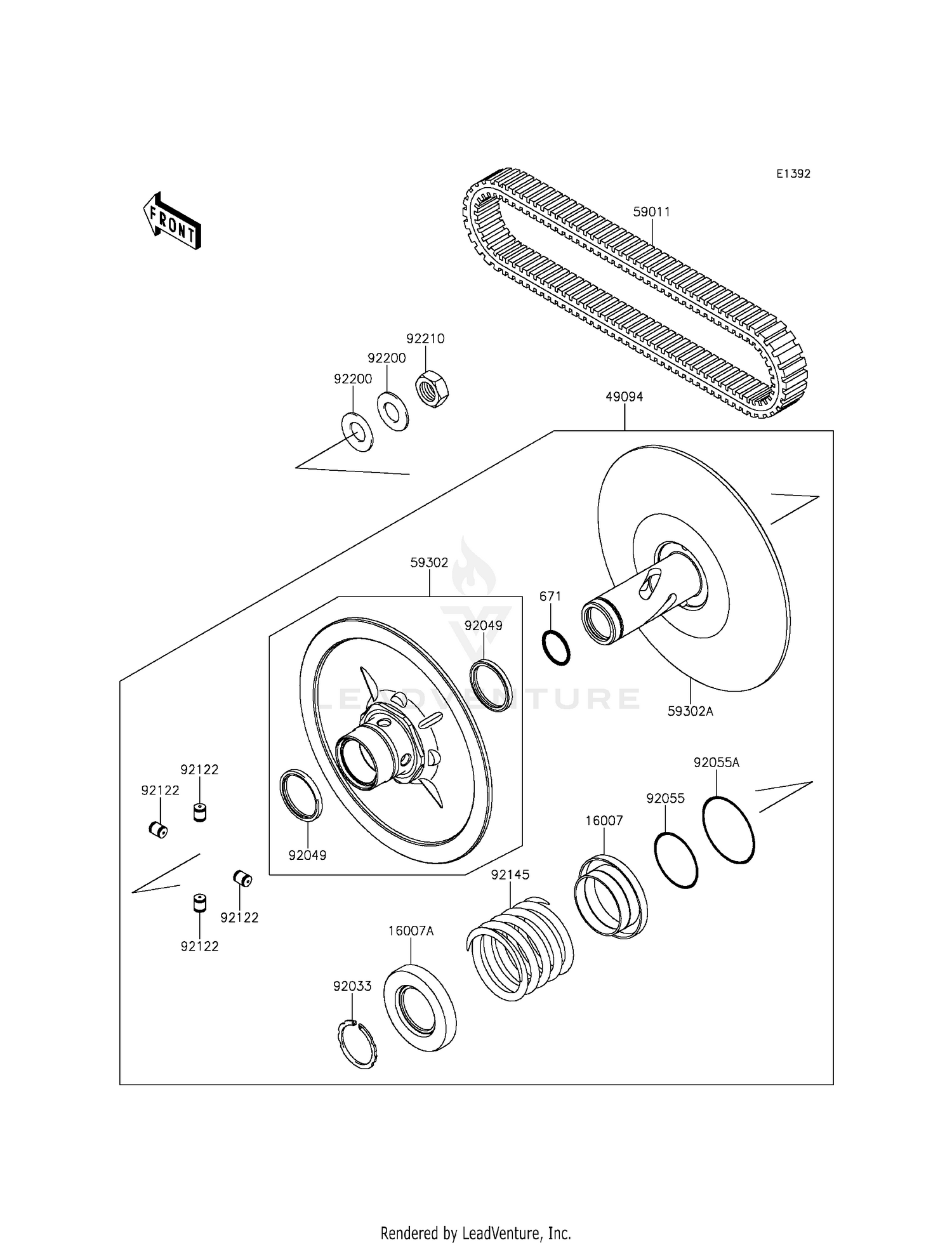

| Ref | Part Number | Description |
|---|
| 671 |
671D2530 |
O RING Price: $5.79 |
| 16007 |
16007-0049 |
SEAT-SPRING,MOVABLE Price: $17.14 |
| 16007A |
16007-0050 |
SEAT-SPRING,FIXED Price: $14.76 |
| 49094 |
49094-0127 |
CONVERTER-ASSY-DRIVEN This part replaces 49094-0086. Price: $693.62 |
| 59011 |
59011-0040 |
BELT,CVT Price: $165.38 |
| 59302 |
59302-0042 |
SHEAVE-COMP,MOVABLE Price: $350.16 |
| 59302A |
59302-0138 |
SHEAVE-COMP,FIXED This part replaces 59302-0043. Price: $350.16 |
| 92033 |
92033-1317 |
RING-SNAP Price: $6.12 |
| 92049 |
92049-1528 |
SEAL-OIL Price: $16.41 |
| 92055 |
92055-0752 |
RING-O,46.4X3.1 Price: $4.41 |
| 92055A |
92055-0753 |
RING-O,59.5X2.4 Price: $4.10 |
| 92122 |
92122-0043 |
ROLLER Price: $13.49 |
| 92145 |
92145-0959 |
SPRING Price: $53.52 |
| 92200 |
92200-1505 |
WASHER Price: $5.00 |
