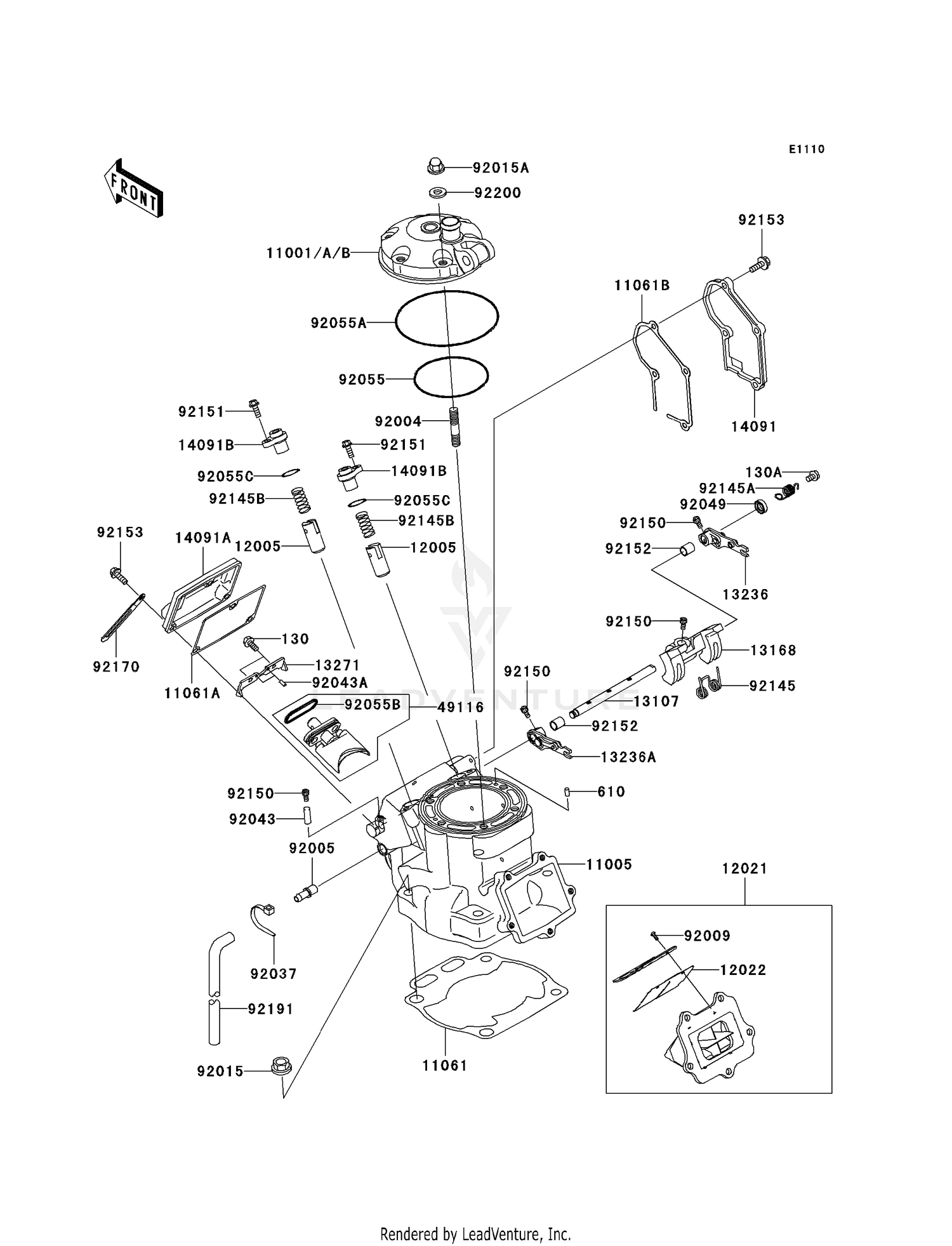

| Ref | Part Number | Description |
|---|
| 130 |
130BA0512 |
BOLT-FLANGED,5X12 This part replaces 130G0512. Price: $2.22 |
| 130A |
130BB0508 |
BOLT-FLANGED This part replaces 130L0508. Price: $5.68 |
| 610 |
610A0408 |
ROLLER,4X8 Price: $4.31 |
| 11001 |
11001-0107 |
HEAD-CYLINDER This part replaces 11001-0034. Price: $365.86 |
| 11005 |
11005-0054 |
CYLINDER-ENGINE Price: $943.22 |
| 11061 |
11061-0091 |
GASKET,CYLINDER BASE Price: $15.80 |
| 11061A |
11061-0092 |
GASKET,CNT Price: $8.66 |
| 11061B |
11061-0093 |
GASKET,GOVERNOR COVER Price: $9.62 |
| 12005 |
12005-0019 |
VALVE-EXHAUST Price: $28.24 |
| 12021 |
12021-0014 |
VALVE-ASSY-REED Price: $298.08 |
| 12022 |
12022-0004 |
VALVE-REED Price: $71.18 |
| 13107 |
13107-0062 |
SHAFT Price: $28.87 |
| 13168 |
13168-0058 |
LEVER,VALVE-ASSY,MAIN Price: $100.17 |
| 13236 |
13236-0054 |
LEVER-COMP,RH Price: $58.93 |
| 13236A |
13236-0081 |
LEVER-COMP,LH Price: $58.93 |
| 13271 |
13271-0518 |
PLATE Price: $9.11 |
| 14091 |
14091-0215 |
COVER,RH Price: $44.84 |
| 14091A |
14091-0217 |
COVER,CNT Price: $44.84 |
| 14091B |
14091-0437 |
COVER,SUB VALVE Price: $16.15 |
| 49116 |
49116-0007 |
VALVE-ASSY,MAIN Price: $186.81 |
| 92004 |
92004-1110 |
STUD,8X20 Price: $12.65 |
| 92005 |
92005-1127 |
FITTING,BREATHER Price: $17.17 |
| 92009 |
92009-1014 |
SCREW,REED VALVE Price: $2.49 |
| 92015 |
92015-1415 |
NUT,FLANGED,10MM This part replaces 92015-077. Price: $4.69 |
| 92015A |
92015-1151 |
NUT,CAP,8MM Price: $5.00 |
| 92037 |
92037-1173 |
CLAMP Price: $3.49 |
| 92043 |
92043-0033 |
PIN,3X8.5 Price: $1.54 |
| 92043A |
92043-0068 |
PIN,3X6.8 Price: $1.96 |
| 92049 |
92049-1238 |
SEAL-OIL,SD088144 Price: $10.46 |
| 92055 |
92055-0049 |
RING-O,73.9X1.9 Price: $11.57 |
| 92055A |
92055-0050 |
RING-O,103.3X1.9 Price: $11.57 |
| 92055B |
92055-0051 |
RING-O Price: $8.65 |
| 92055C |
92055-0058 |
RING-O,8.8X1.9 Price: $5.15 |
| 92145 |
92145-0180 |
SPRING Price: $6.75 |
| 92145A |
92145-0284 |
SPRING,MAIN,VALVE Price: $8.66 |
| 92145B |
92145-0298 |
SPRING Price: $3.30 |
| 92150 |
92150-1888 |
BOLT,SOCKET,4X8 Price: $3.32 |
| 92151 |
132BC0614 |
BOLT-FLANGED-SMALL,6X14 This part replaces 92151-1423. Price: $0.90 |
| 92152 |
92152-0264 |
COLLAR,8.1X10.0X11.2 Price: $4.33 |
| 92153 |
92153-0859 |
BOLT,5X16 Price: $2.15 |
| 92170 |
92170-1514 |
CLAMP Price: $4.31 |
| 92191 |
92191-1692 |
TUBE,5.8X10.8X225 Price: $9.24 |
