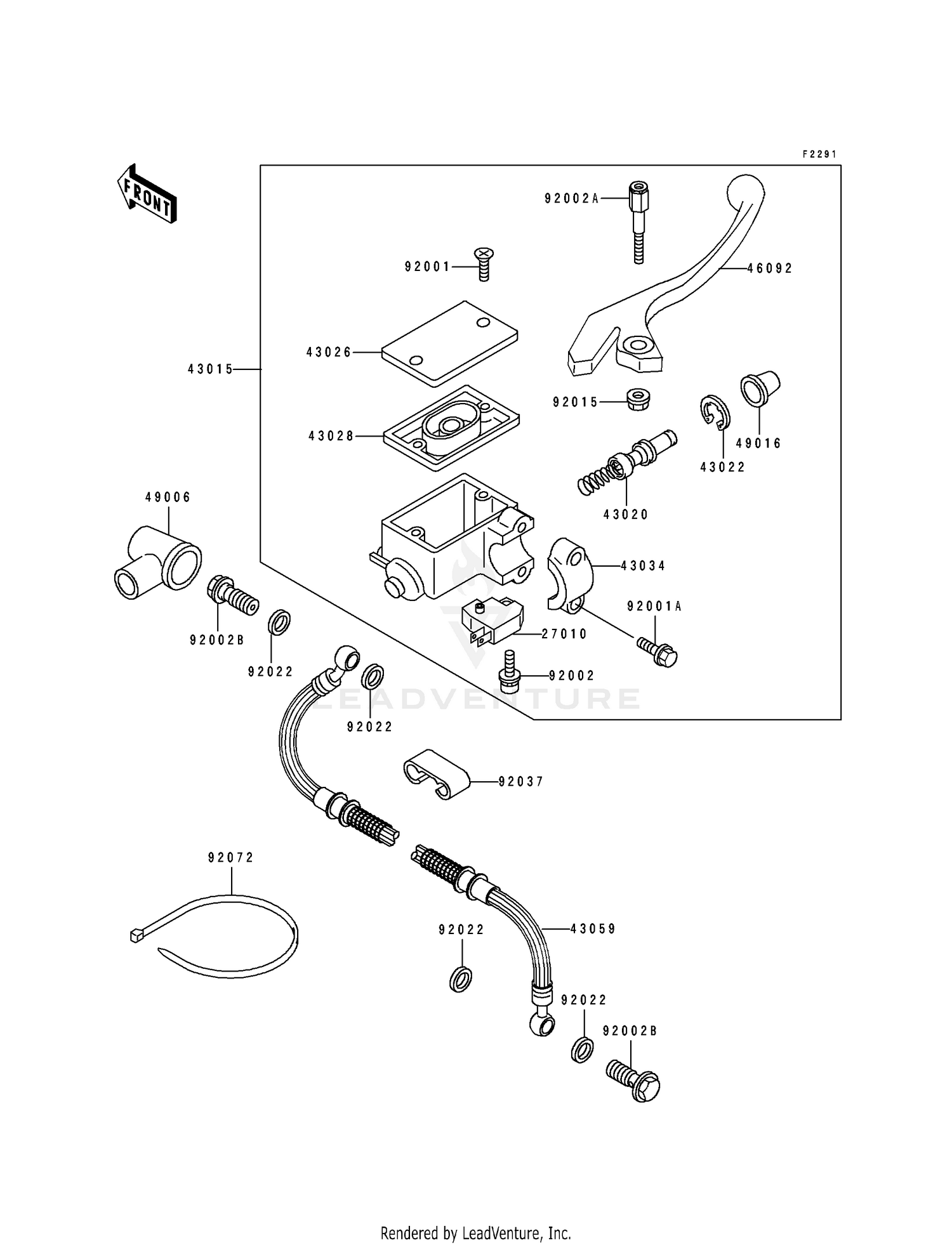

| Ref | Part Number | Description |
|---|
| 27010 |
27010-1170 |
SWITCH,BRAKE Price: $29.28 |
| 43015 |
43015-1413 |
CYLINDER-ASSY-MASTER, Price: $235.69 |
| 43020 |
43020-1056 |
PISTON-COMP-BRAKE,FR Price: $65.22 |
| 43022 |
43022-1010 |
STOPPER-BRAKE,PISTON Price: $4.65 |
| 43026 |
43026-1022 |
CAP-BRAKE Price: $51.90 |
| 43028 |
43028-1061 |
DIAPHRAGM Price: $16.18 |
| 43034 |
43034-1016 |
HOLDER-BRAKE,MASTER CYLINDER Price: $19.45 |
| 43059 |
43059-1477 |
HOSE-BRAKE,FR Price: $86.28 |
| 46092 |
46092-1135 |
LEVER-GRIP,FRONT BRAK Price: $23.84 |
| 49006 |
49006-1041 |
BOOT,DUST This part replaces 49006-1040. Price: $11.49 |
| 49016 |
49016-1044 |
COVER-SEAL,MASTER CYLINDER Price: $8.68 |
| 92001 |
92001-1727 |
SCREW,5MM Price: $4.11 |
| 92001A |
92002-1894 |
BOLT This part replaces 92001-1729. Price: $5.52 |
| 92002 |
92002-1323 |
BOLT,SCREW,4X12 Price: $3.92 |
| 92002A |
92002-1879 |
BOLT,LEVER SET Price: $20.04 |
| 92002B |
92153-0627 |
BOLT,OIL,L=23 This part replaces 92002-1888. Price: $5.48 |
| 92015 |
92015-1233 |
NUT,FLANGED,6MM,BLACK Price: $5.52 |
| 92022 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 This part replaces 43067-001. Price: $2.15 |
| 92037 |
92037-1529 |
CLAMP,BRAKE HOSE Price: $12.05 |
