| Ref | Part Number | Description |
|---|
| 100a |
503195759 |
Black, RH Pivot Support Long This part replaces 503193970. Price: $91.99 |
| 100a |
503195760 |
Black, LH Pivot Support Long This part replaces 503193969. Price: $91.99 |
| 100c |
503192647 |
Runner Pivot Price: $56.99 |
| 100d |
232581414 |
Hex. Elastic Stop Nut M8 Price: $0.58 |
| 100e |
503191608 |
Cam Axle Price: $17.99 |
| 100f |
503191190 |
RH Spring Cam Price: $15.99 |
| 100g |
503191668 |
LH Spring Cam Price: $12.99 |
| 100h |
503192426 |
LH Block Price: $16.99 |
| 100h |
503192427 |
RH Block Price: $16.99 |
| 100k |
250400005 |
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership Price: $1.09 |
| 100m |
503189488 |
Block Guide Price: $41.99 |
| 100n |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip Price: $2.99 |
| 100p |
503189148 |
Washer Price: $2.89 |
| 100q |
408200700 |
Grease Fitting Price: $3.59 |
| 100r |
503192437 |
Rode Price: $6.29 |
| 100s |
234051410 |
Flat Washer M5 Price: $0.55 |
| 100t |
503192438 |
Handle Price: $5.09 |
| 100u |
250000742 |
Torx Screw M5 X 14 Price: $1.49 |
| 100v |
293370068 |
Circlip Price: $1.00 |
| 100w |
503192436 |
Compression Spring Price: $39.99 |
| 105 |
503191279 |
Lower Shaft Price: $29.99 |
| 110 |
503189324 |
Bushing Price: $14.15 |
| 115 |
503192496 |
Washer Price: $0.79 |
| 120 |
250000605 |
Hex. Screw S.Grip M10 X 55 Price: $8.29 |
| 125 |
503194624 |
Spring This part replaces 503192282. Price: $31.99 |
| 800 |
861805547 |
Spring Support Kit This part replaces 503191183. Price: $10.99 |
| 810 |
861805547 |
Spring Support Kit This part replaces 503190754. Price: $10.99 |
| 830 |
205082554 |
Socket Screw M8 X 25 Price: $2.19 |
| 840 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 1050 |
503192360 |
Stopper Strap Price: $21.99 |
| 1060 |
250200128 |
Flat Washer 8 mm Price: $4.49 |
| 1070 |
207683044 |
Hex. Flange Screw M8 X 30 Price: $1.69 |
| 1080 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 1090 |
503193435 |
Pivot Axle Price: $41.99 |
| 1100 |
503191259 |
Center Bushing Price: $11.99 |
| 1110 |
250200143 |
Flat Washer Price: $3.29 |
| 1120 |
503193227 |
Bolt M10 X 251MM Price: $17.49 |
| 1130 |
233201466 |
Flange Elastic Nut M10 Price: $3.29 |
| 2000a |
503191752 |
Front Arm Price: $370.99 |
| 2000b |
503191556 |
Extended Bushing Price: $7.83 |
| 2000c |
408200700 |
Grease Fitting Price: $3.59 |
| 2000d1 |
503192211 |
Rocker Price: $85.99 |
| 2000d2 |
503191555 |
Swivel Bushing Price: $7.83 |
| 2000f |
503193037 |
Bushing Price: $16.18 |
| 2000g |
503189282 |
Bushing Price: $4.34 |
| 2000h |
207005044 |
Hex. Screw M10 X 1.5 X 50 Price: $3.89 |
| 2000j |
233601416 |
Elastic Locking Nut M10 X 1.5 Price: $1.69 |
| 2010 |
503191262 |
Bushing Price: $15.79 |
| 2020 |
503191215 |
Upper Shaft Price: $39.99 |
| 2030 |
503192496 |
Washer Price: $0.79 |
| 2050 |
250000605 |
Hex. Screw S.Grip M10 X 55 Price: $8.29 |
| 2070 |
503191279 |
Lower Shaft Price: $29.99 |
| 2080 |
503189324 |
Bushing Price: $14.15 |
| 2100 |
250200143 |
Flat Washer Price: $3.29 |
| 2110 |
250000605 |
Hex. Screw S.Grip M10 X 55 Price: $8.29 |
| 3000a |
503191762 |
Rear Arm Price: $98.49 |
| 3000b |
572080700 |
Bushing Price: $17.39 |
| 3000c |
503191555 |
Swivel Bushing Price: $7.83 |
| 3000d |
503191565 |
LH Cam Adjuster Price: $16.99 |
| 3000d |
503191566 |
RH Cam Adjuster Price: $16.99 |
| 3000f |
293370013 |
E-Circlip Price: $0.67 |
| 3000g |
503144300 |
Upper Axle, Pivot Arm Price: $11.65 |
| 3000h |
503191209 |
Pivot Arm Price: $129.99 |
| 3000j |
503189157 |
Washer Price: $3.39 |
| 3000k |
732601197 |
Bolt M8, Short Price: $15.99 |
| 3000m |
232581414 |
Hex. Elastic Stop Nut M8 Price: $0.58 |
| 3000n |
408200700 |
Grease Fitting Price: $3.59 |
| 3000p |
503191556 |
Extended Bushing Price: $7.83 |
| 3000q |
503191651 |
Washer Price: $8.49 |
| 3010 |
503193158 |
Black, LH Spring Square This part replaces 503192136. Price: $81.99 |
| 3010 |
503193159 |
Black, RH Spring Square This part replaces 503192137. Price: $81.99 |
| 3070a |
503193548 |
Ball Bearing Price: $17.99 |
| 3070b |
415129780 |
Retaining Ring Price: $16.49 |
| 3120 |
503191215 |
Upper Shaft Price: $39.99 |
| 3130 |
503191262 |
Bushing Price: $15.79 |
| 3140 |
503168800 |
Retaining Ring Price: $15.49 |
| 3150 |
206260844 |
Socket Set Screw M6 X 8 Price: $1.49 |
| 3170 |
503192496 |
Washer Price: $0.79 |
| 3180 |
250000605 |
Hex. Screw S.Grip M10 X 55 Price: $8.29 |
| 3190 |
503189156 |
Pivot Arm Axle Price: $21.99 |
| 3200 |
503192494 |
Washer Price: $3.29 |
| 3210 |
503192440 |
Bolt M8 X 248mm Price: $31.99 |
| 3220 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 4000 |
503191765 |
Link Rod Price: $18.49 |
| 4030 |
503190643 |
Axle Bar (Long) Price: $17.49 |
| 4060 |
503192494 |
Washer Price: $3.29 |
| 4070 |
503193372 |
Screw M8 X 90 Price: $4.49 |
| 4080 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 4090 |
503190643 |
Axle Bar (Long) Price: $17.49 |
| 4100 |
503192494 |
Washer Price: $3.29 |
| 4120 |
503193372 |
Screw M8 X 90 Price: $4.49 |
| 4130 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 5000a |
503192266 |
Center Shock Price: $164.49 |
| 5000b |
505073625 |
Adjustment Cam Price: $13.49 |
| 5000c |
503191882 |
Black, Spring Price: $63.99 |
| 5000d |
503193663 |
Protector Price: $38.99 |
| 5000e |
503191872 |
Spring Guide Price: $2.39 |
| 5000f |
706200881 |
Spring Stopper Price: $13.49 |
| 5000g |
503189117 |
Urethane Bushing Price: $8.19 |
| 5000h |
503189282 |
Bushing Price: $4.34 |
| 5000j |
503189271 |
Bushing Price: $13.99 |
| 5010 |
207005044 |
Hex. Screw M10 X 1.5 X 50 Price: $3.89 |
| 5020 |
233601466 |
Elastic Locking Nut M10 Price: $2.19 |
| 5500 |
503193191 |
Rear Shock HPG SEAL Price: $248.99 |
| 5570 |
414936000 |
Bushing Price: $13.99 |
| 5590 |
207684044 |
Hex. Flange Screw M8 X 40 Price: $1.49 |

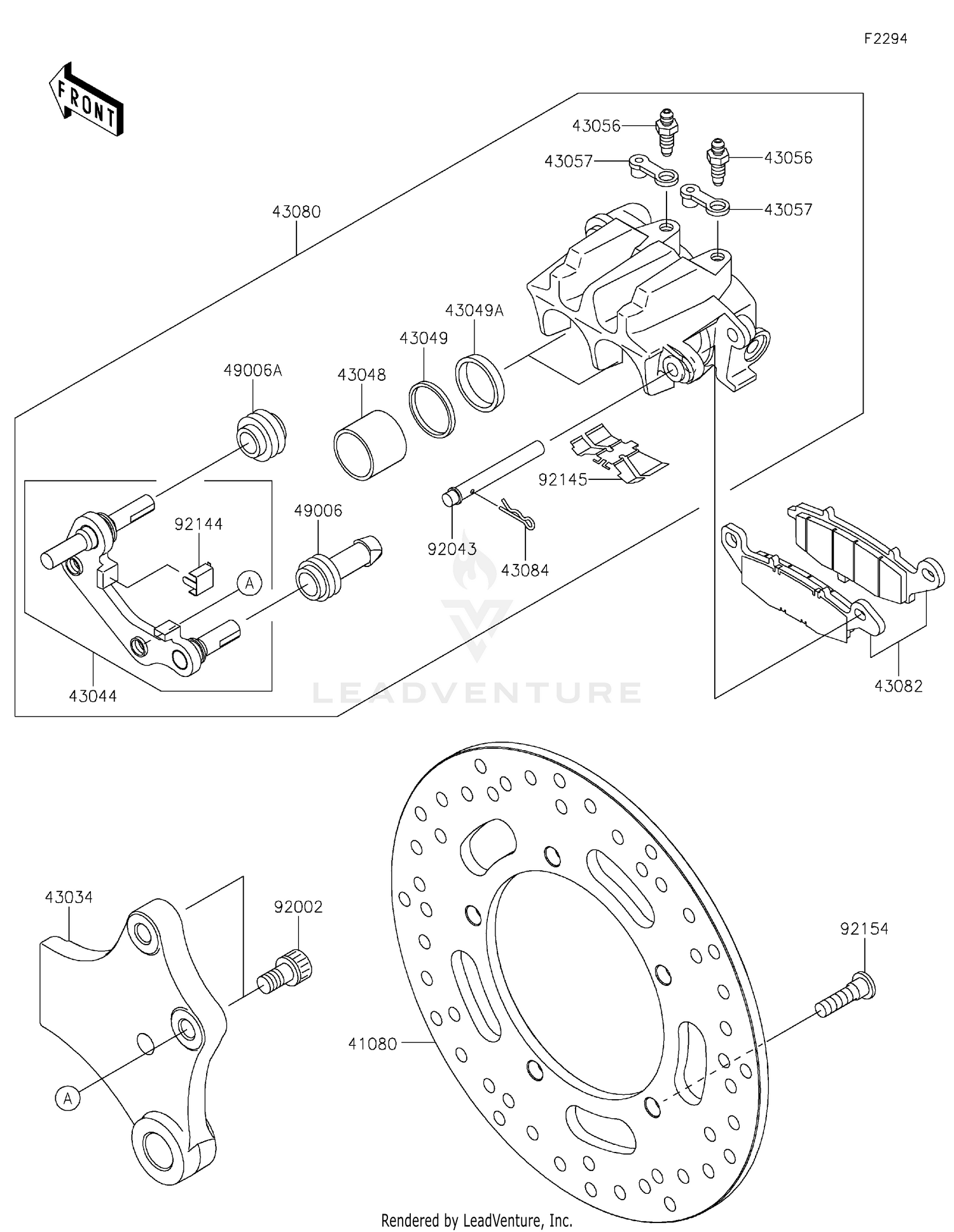

| 41080 |
41080-0093-CM |
DISC,RR,SILVER Price: $368.84 |
| 43034 |
43034-0061 |
HOLDER-BRAKE,REAR CALIPER Price: $110.36 |
| 43044 |
43044-1134 |
HOLDER-COMP-CALIPER,RR Price: $175.85 |
| 43048 |
43048-1094 |
PISTON-CALIPER Price: $59.39 |
| 43049 |
43049-1068 |
PACKING Price: $9.82 |
| 43049A |
43049-1092 |
PACKING,PISTON SEAL Price: $10.39 |
| 43056 |
43056-0007 |
BREATHER-BRAKE Price: $23.79 |
| 43057 |
43057-003 |
CAP-BREATHER Price: $2.45 |
| 43080 |
43080-5098-DJ |
CALIPER-SUB-ASSY,RR,BLACK Price: $371.03 |
| 43082 |
43082-0063 |
PAD-ASSY-BRAKE Price: $76.48 |
| 43084 |
43084-003 |
CLAMP,PAD Price: $4.31 |
| 49006 |
49006-1094 |
BOOT,CALIPER Price: $12.23 |
| 49006A |
49006-1095 |
BOOT,CALIPER Price: $7.27 |
| 92002 |
92002-1713 |
BOLT,SOCKET,10X17 Price: $7.34 |
| 92043 |
92043-1640 |
PIN,PAD Price: $6.36 |
| 92144 |
92144-1831 |
SPRING,STOPPER Price: $5.46 |
| 92145 |
92145-1382 |
SPRING,PAD Price: $16.24 |
