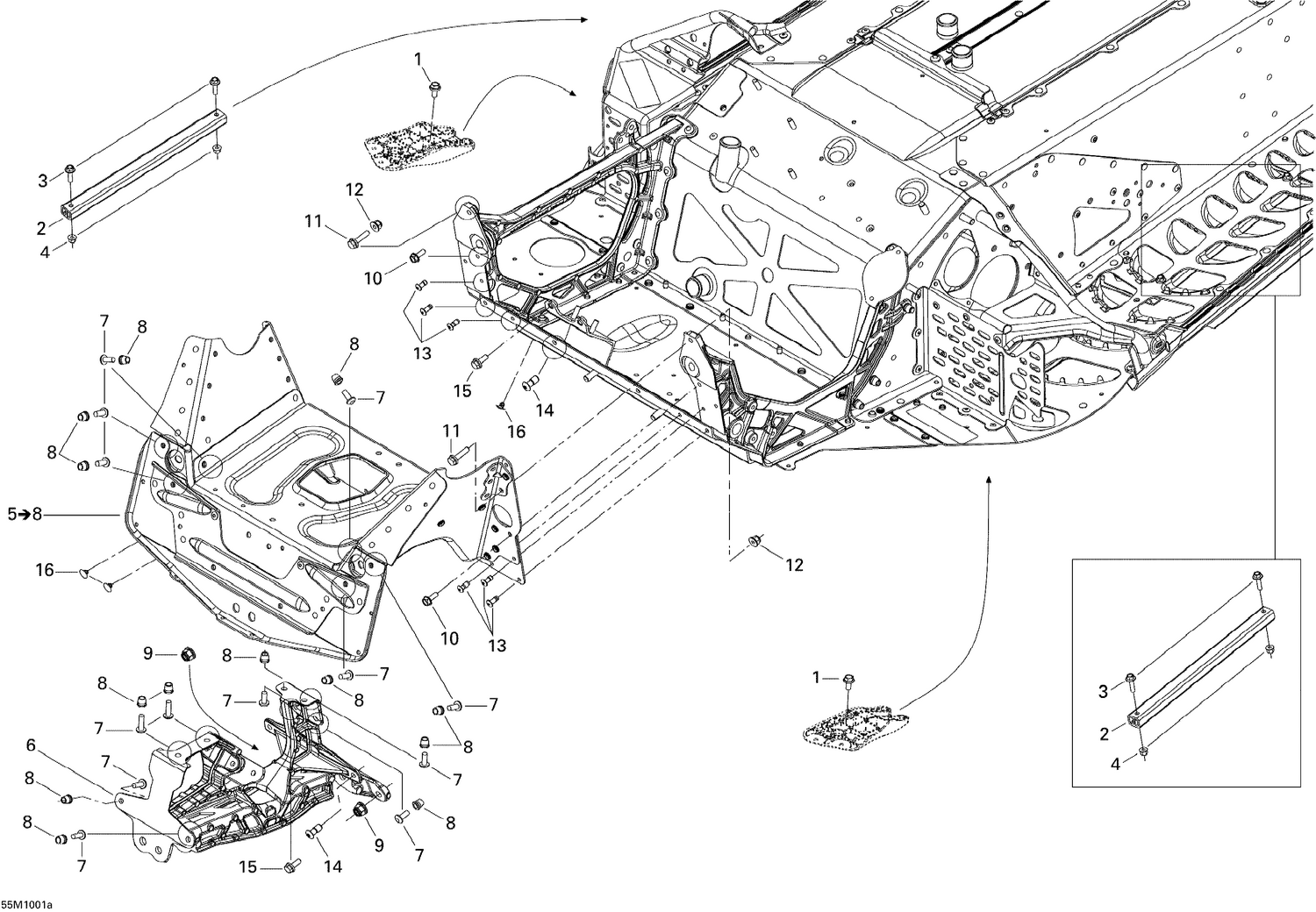

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip Price: $1.99 |
| 2 |
518325790 |
REINFORCEMENT LINK - Call your local BRP dealership Price: $30.99 |
| 3 |
207652044 |
Hex.Flange Screw M5 X 20 Price: $1.99 |
| 4 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. Price: $2.09 |
| 6 |
518327487 |
Front Suspension Support This part replaces 518325925. Price: $289.99 |
| 7 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 9 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 10 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. Price: $1.69 |
| 11 |
207662544 |
Hex. Flange Screw M6 X 25 Price: $0.66 |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 13 |
293150179 |
MONOBOLT RIVET 4.8 - Call your local BRP dealership This part replaces 293150175. Price: $1.99 |
| 14 |
293150182 |
Monobolt Rivet 6.4 Price: $3.19 |
| 15 |
207661644 |
Hex. Flange Screw M6 X 16 Price: $0.76 |
