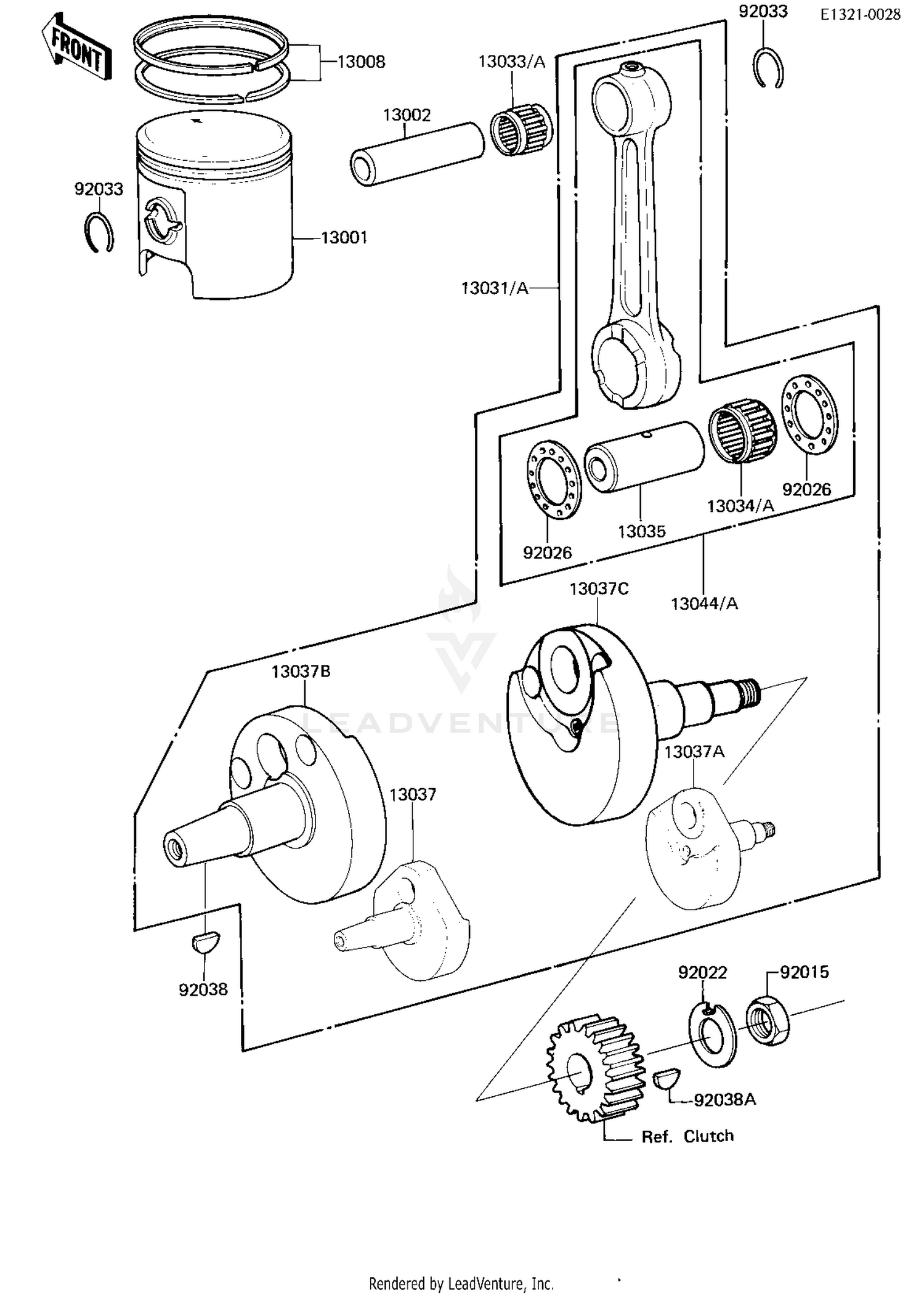

| Ref | Part Number | Description |
|---|
| 13001 |
13001-1048 |
PISTON-ENGINE Price: $121.06 |
| 13002 |
13002-1004 |
PIN-PISTON Price: $7.03 |
| 13008 |
13008-5034 |
RING-SET-PISTON Price: $81.86 |
| 13031 |
13031-1032 |
CRANKSHAFT ASSY Price: $198.81 |
| 13031A |
13031-5010 |
CRANKSHAFT-COMP Price: $272.66 |
| 13033 |
13033-1004 |
BRG,NEEDLE,KBK1620198 Price: $43.28 |
| 13033A |
13033-1051 |
BEARING-SMALL END,KBK This part replaces 13033-1007. Price: $23.42 |
| 13034 |
13034-1002 |
NEEDLE BEARING,BIG EN Price: $116.13 |
| 13034A |
13034-1079 |
BEARING-BIG END This part replaces 13034-1035. Price: $66.15 |
| 13035 |
13035-1001 |
PIN,CRANK Price: $47.62 |
| 13037 |
13037-1062 |
CRANKSHAFT,L.H Price: $169.52 |
| 13037A |
13037-1063 |
CRANKSHAFT,R.H Price: $252.37 |
| 13037B |
13037-1103 |
CRANKSHAFT,LH Price: $171.60 |
| 13037C |
13037-1104 |
CRANKSHAFT,RH Price: $171.60 |
| 13044 |
13044-5017 |
CONNECTING ROD ASSY Price: $273.30 |
| 13044A |
13044-5035 |
SET-CONNECTING ROD This part replaces 13044-5018. Price: $212.58 |
| 92015 |
92015-006 |
NUT 12MM Price: $5.59 |
| 92022 |
92022-1063 |
WASHER,LOCK Price: $8.01 |
| 92026 |
92026-011 |
WASHER SIDE Price: $9.89 |
| 92033 |
92036-004 |
CIRCLIP PISTON PIN Price: $0.65 |
| 92038 |
92038-001 |
KEY,WOODRUFF Price: $4.96 |
