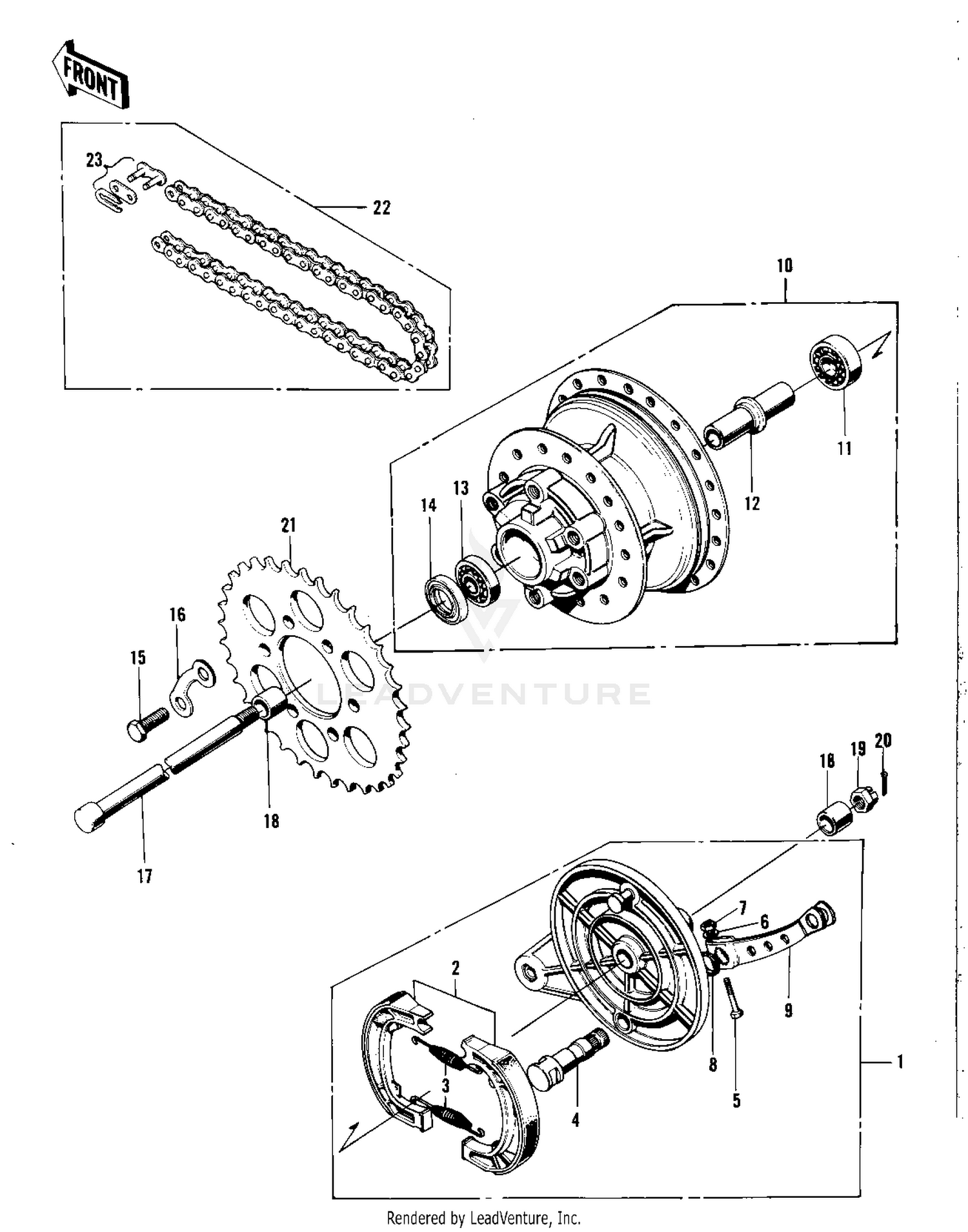

| Ref | Part Number | Description |
|---|
| 1 |
42006-016-21 |
PANEL-ASY,RR BRK,BLK Price: $155.93 |
| 2 |
41048-1107 |
SHOE-BRAKE This part replaces 42019-011. Price: $37.39 |
| 3 |
42020-004 |
SPRING-BRAKE SHOE Price: $8.51 |
| 4 |
42026-021 |
CAM SHAFT,REAR BRAKE Price: $22.25 |
| 5 |
112G0640 |
BOLT-UPSET,6X40 Price: $3.42 |
| 6 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 7 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 8 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 9 |
42029-037 |
LEVER,REAR BRAKE CAM Price: $36.94 |
| 10 |
42005-019 |
DRUM ASSY-REAR BRAKE Price: $217.01 |
| 11 |
601B6303Z |
BEARING BALL #6303Z Price: $24.50 |
| 13 |
601B6303 |
BEARING-BALL,#6303C3 Price: $8.29 |
| 14 |
654A254708 |
OIL SEAL FRONT AXLE Price: $29.28 |
| 15 |
92001-087 |
BOLT-HEX HEAD,10X25 Price: $6.22 |
| 16 |
92088-007 |
WASHER LOCK Price: $13.51 |
| 17 |
42031-030 |
AXLE-REAR Price: $30.72 |
| 18 |
42032-031 |
COLLAR-REAR AXLE Price: $7.96 |
| 19 |
92015-1947 |
NUT,CASTLE,16MM This part replaces 42045-014. Price: $9.91 |
| 20 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 21 |
42041-112 |
REAR SPROCKET,43T Price: $107.66 |
| 21 |
42041-113 |
REAR SPROCKET,45T Price: $127.14 |
| 21 |
42041-114 |
REAR SPROCKET,47T Price: $117.13 |
| 22 |
695X5296 |
DR CHAIN 525X96H This part replaces 695Z5296. Price: $18.61 |
