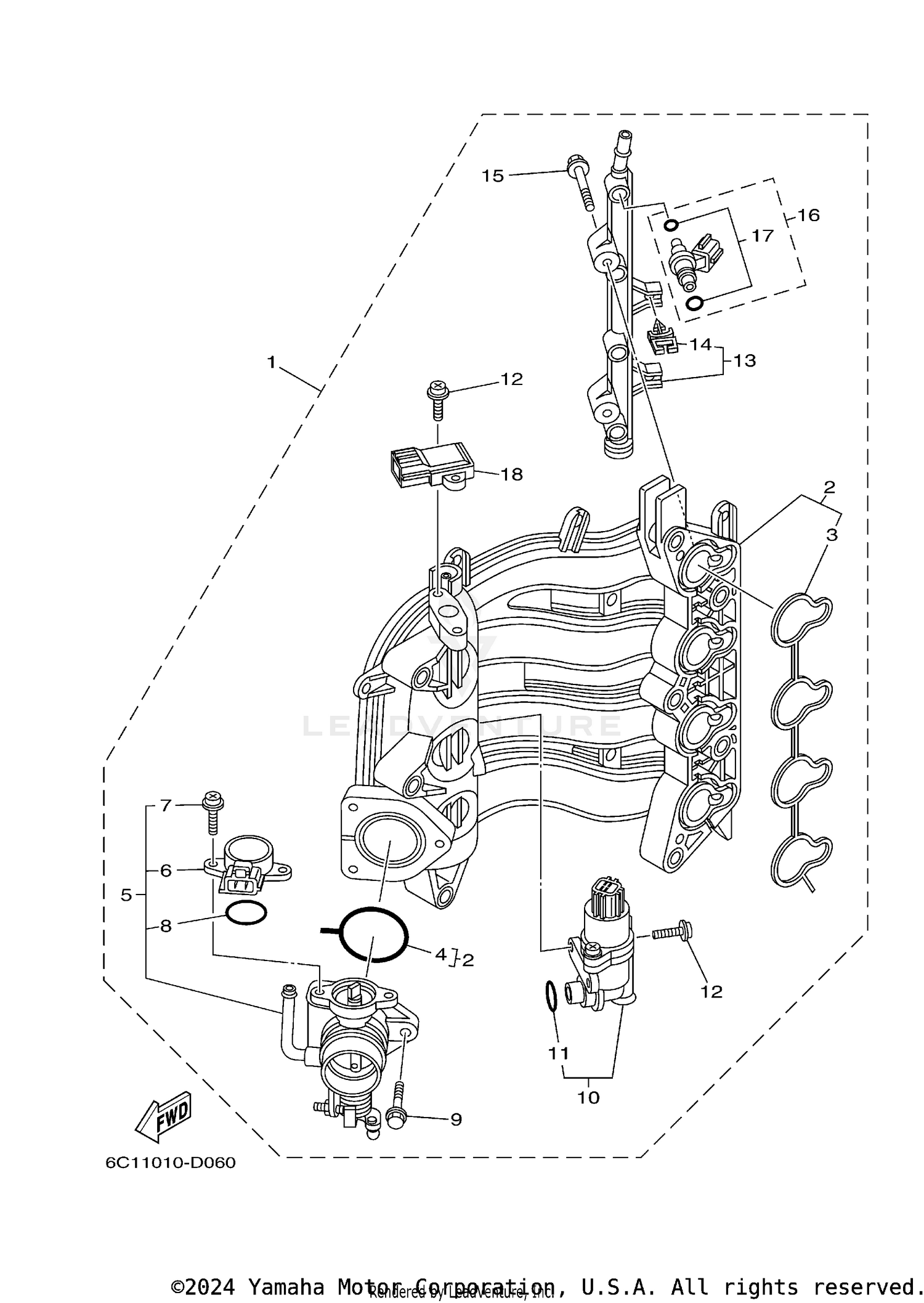

INTAKE 1
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6C5-14200-03-00 | INTAKE ASSY Price: $2,121.35 |
| 2 | 6C5-13641-01-00 | MANIFOLD, INTAKE 1 Price: $512.65 |
| 3 | 6C5-13645-00-00 | GASKET, MANIFOLD 1 Price: $37.75 |
| 4 | 6C5-13557-00-00 | GASKET Price: $21.25 |
| 5 | 6C5-13750-00-00 | THROTTLE BODY ASSY Price: $567.00 |
| 6 | 6C5-85885-00-00 | THROTTLE SENSOR ASSY Price: $183.30 |
| 7 | 6C5-81145-00-00 | SCREW 1 Price: $4.60 |
| 8 | 6C5-8182L-00-00 | O-RING 1 Price: $7.70 |
| 9 | 6C5-14496-00-00 | BOLT Price: $5.65 |
| 10 | 6C5-13105-03-00 | CONTROL VALVE ASSY Price: $326.65 |
| 11 | 6C5-1319C-00-00 | O-RING Price: $8.10 |
| 12 | 6C5-81146-10-00 | SCREW 2 Price: $6.75 |
| 13 | 6C5-13161-00-00 | PIPE, DELIVERY 1 Price: $230.50 |
| 14 | 90464-07M56-00 | CLAMP Price: $3.40 |
| 15 | 6C5-14446-00-00 | BOLT Price: $6.70 |
| 16 | 6C5-13761-00-00 | INJECTOR Price: $231.60 |
| 17 | 6C5-1410B-00-00 | PACKING KIT Price: $15.20 |
