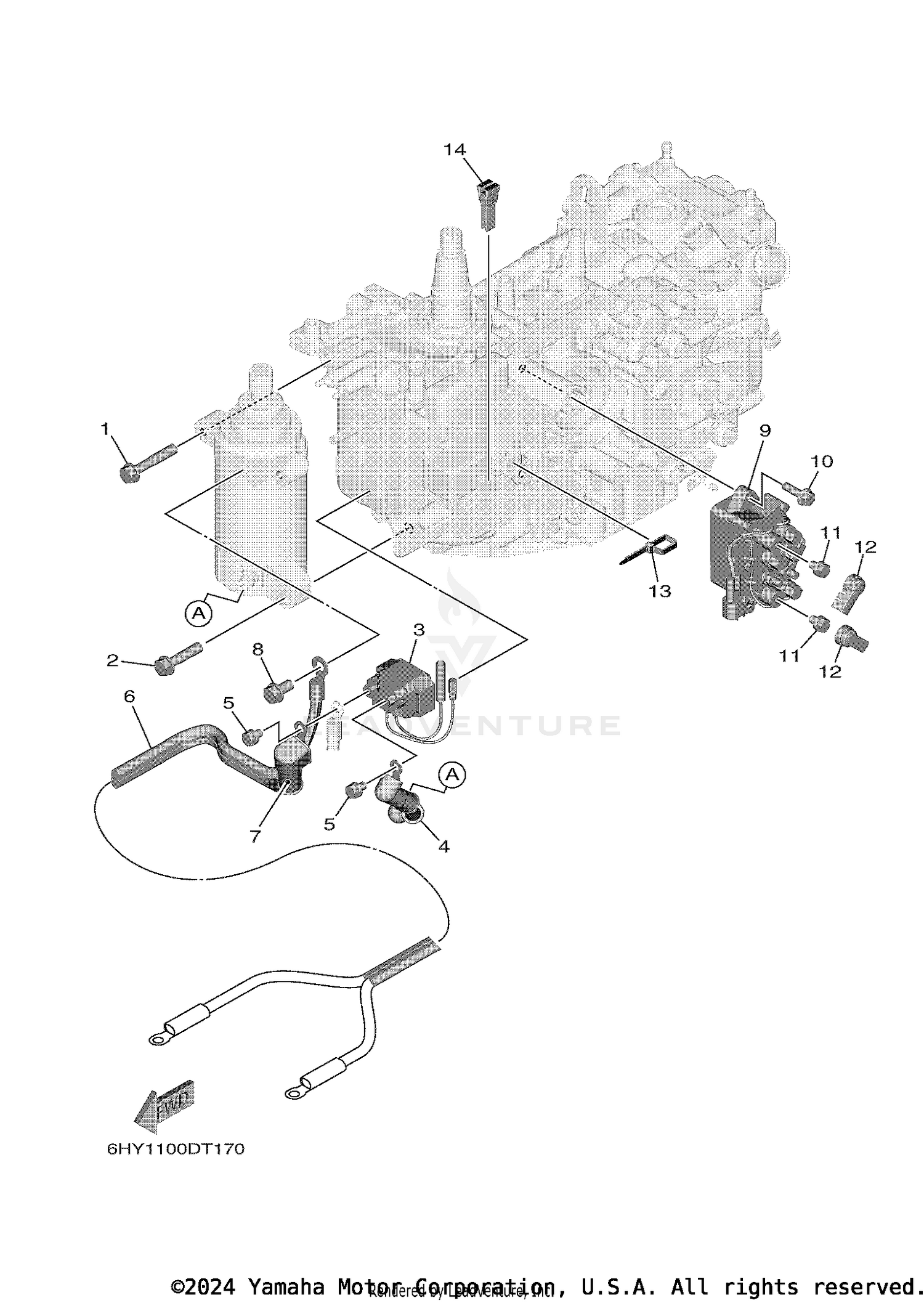

ELECTRICAL 3
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 97513-08545-00 | BOLT, WITH WASHER Price: $2.99 |
| 2 | 97513-08535-00 | BOLT, WITH WASHER Price: $1.99 |
| 3 | 6FM-81940-00-00 | STARTER RELAY ASSY Price: $111.75 |
| 4 | 6AH-82117-01-00 | WIRE, LEAD Price: $27.30 |
| 5 | 97E95-06610-00 | BOLT, HEXAGON W/W Price: $1.00 |
| 6 | 6FM-82105-01-00 | BATTERY CABLE (L: Price: $168.35 |
| 7 | 6P2-82119-00-00 | COVER, LEAD WIRE Price: $12.55 |
| 8 | 97E95-08516-00 | BOLT, HEXAGON W/W Price: $1.35 |
| 9 | 63P-W8195-00-00 | RELAY ASSY Price: $479.70 |
| 10 | 95D95-06020-00 | BOLT, FLANGE DEEP Price: $5.35 |
| 11 | 97E95-06610-00 | BOLT, HEXAGON W/W Price: $1.00 |
| 12 | 6P2-8183X-00-00 | CAP, TERMINAL Price: $6.70 |
| 13 | 90465-13M11-00 | CLAMP Price: $8.49 |
