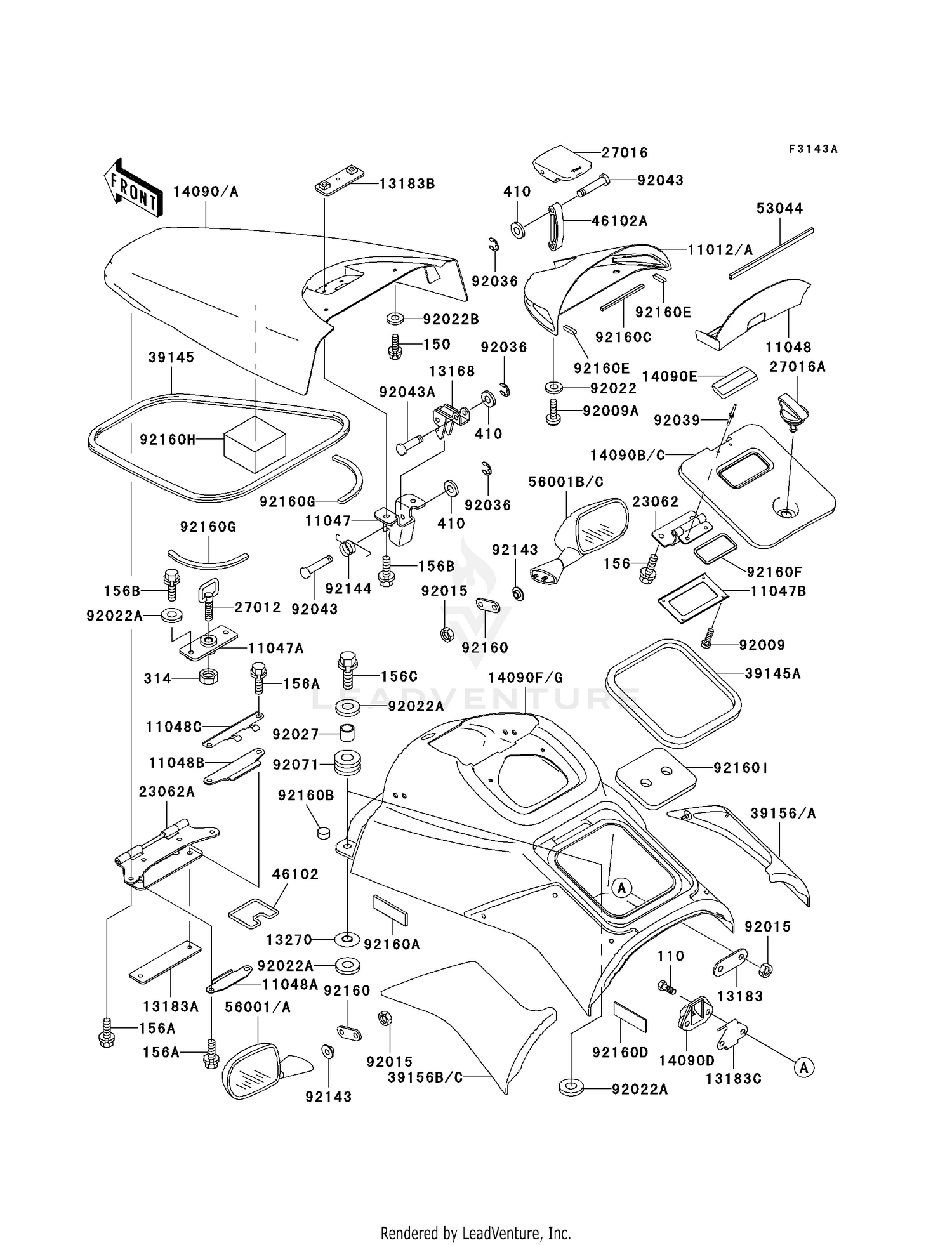

| Ref | Part Number | Description |
|---|
| 110 |
110R0616 |
BOLT 6X16 Price: $4.22 |
| 150 |
150R0620 |
BOLT-WS,6X20 Price: $3.53 |
| 156 |
156R0612 |
BOLT-WP,6X12 Price: $3.90 |
| 156A |
156R0618 |
BOLT-WP,6X18 Price: $3.73 |
| 156B |
156R0620 |
BOLT-WP,6X20 Price: $3.65 |
| 156C |
156R0630 |
BOLT-WP,6X30 Price: $4.41 |
| 314 |
314R1000 |
NUT-HEX-FINE,10MM Price: $2.02 |
| 410 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 11012 |
11012-3763-23 |
CAP,HATCH COVER, VIO Price: $71.49 |
| 11047 |
11047-3732 |
BRACKET,SEAT SIDE LOC Price: $34.05 |
| 11047A |
11047-3788 |
BRACKET,HATCH COVER H Price: $42.30 |
| 11047B |
11047-3789 |
BRACKET,METER HOLDER Price: $21.54 |
| 11048 |
11048-3702 |
BRACKET,HATCH COVER Price: $42.30 |
| 11048A |
11048-3712 |
BRACKET,HATCH COVER H Price: $10.36 |
| 11048B |
11048-3732 |
BRACKET,HATCH COVER H Price: $14.44 |
| 11048C |
11048-3733 |
BRACKET,HATCH COVER H Price: $10.36 |
| 13168 |
13168-3720 |
LEVER,HATCH LOCK Price: $34.12 |
| 13183 |
13183-3754 |
PLATE Price: $2.13 |
| 13183A |
13183-3781 |
PLATE,HINGE BRACKET Price: $21.20 |
| 13183B |
13183-3792 |
PLATE,HATCH LOCK Price: $16.29 |
| 13183C |
13183-3832 |
PLATE,STORAGE LOCK Price: $6.58 |
| 13270 |
13270-3730 |
PLATE Price: $5.65 |
| 14090 |
14090-3722-23 |
COVER, HATCH, VIOLET Price: $232.46 |
| 14090B |
14090-3723-23 |
COVER,STORAGE,VIOLET Price: $55.64 |
| 14090D |
14090-3729 |
COVER,STORAGE LOCK Price: $10.75 |
| 14090E |
14090-3731 |
COVER,HINGE Price: $19.18 |
| 14090F |
14090-3741-23 |
COVER,HANDLE, VIOLET Price: $455.28 |
| 23062 |
23062-3706 |
BRACKET-COMP,HINGE Price: $51.20 |
| 23062A |
23062-3707 |
BRACKET-COMP,HATCH CO Price: $84.43 |
| 27012 |
27012-3769 |
HOOK,HATCH COVER LOCK Price: $26.53 |
| 27016 |
27016-3727 |
LOCK-ASSY,HATCH COVER Price: $50.60 |
| 27016A |
27016-3729 |
LOCK-ASSY,STORAGE COV Price: $94.69 |
| 39145 |
39145-3736 |
TRIM-SEAL,FRONT HATCH Price: $40.65 |
| 39145A |
39145-3737 |
TRIM-SEAL,L=784 Price: $31.94 |
| 39156 |
39156-3767-K1 |
PAD,HANDLE COVER,RH,Y Price: $54.37 |
| 39156B |
39156-3768-K1 |
PAD,HANDLE COVER,LH,Y Price: $54.37 |
| 46102 |
46102-3720 |
ROD,HATCH COVER HINGE Price: $13.05 |
| 46102A |
46102-3721 |
ROD,CONNECTION Price: $44.31 |
| 53044 |
53044-3728 |
TRIM,L=100 Price: $5.59 |
| 56001 |
56001-3701-RE |
MIRROR-ASSY,LH,J.S.VI Price: $194.68 |
| 56001B |
56001-3702-RE |
MIRROR-ASSY,RH,J.S.VI Price: $194.68 |
| 92009 |
92009-3762 |
SCREW,TAPPING,4X14 Price: $2.12 |
| 92009A |
92009-3789 |
SCREW,5X16 Price: $2.97 |
| 92015 |
92015-3767 |
NUT,6MM Price: $4.69 |
| 92022 |
92022-3041 |
WASHER,5X16X1.5 Price: $4.18 |
| 92022A |
92022-3714 |
WASHER,6.2X20X2 Price: $4.18 |
| 92022B |
92022-567 |
WASHER Price: $2.67 |
| 92027 |
92027-3705 |
COLLAR,6.2X10X10 Price: $8.86 |
| 92036 |
92036-518 |
RING-SNAP Price: $1.56 |
| 92039 |
92039-3703 |
RIVET Price: $4.69 |
| 92043 |
92043-3732 |
PIN,6X27.5 Price: $9.97 |
| 92043A |
92043-3738 |
PIN,6X20 Price: $8.96 |
| 92071 |
92071-3716 |
GROMMET Price: $4.96 |
| 92143 |
92143-3749 |
COLLAR Price: $5.23 |
| 92144 |
92144-3731 |
SPRING Price: $5.56 |
| 92160 |
92160-1089 |
DAMPER,MIRROR Price: $7.29 |
| 92160A |
92160-3720 |
DAMPER Price: $13.43 |
| 92160B |
92160-3775 |
DAMPER Price: $7.99 |
| 92160C |
92160-3807 |
DAMPER Price: $2.41 |
| 92160D |
92160-3811 |
DAMPER,HANDLE COVER Price: $4.97 |
| 92160E |
92160-3812 |
DAMPER,HATCH COVER CA Price: $2.41 |
| 92160F |
92160-3816 |
DAMPER,METER Price: $7.99 |
| 92160G |
92160-3817 |
DAMPER Price: $9.30 |
| 92160H |
92160-3824 |
DAMPER Price: $9.52 |
