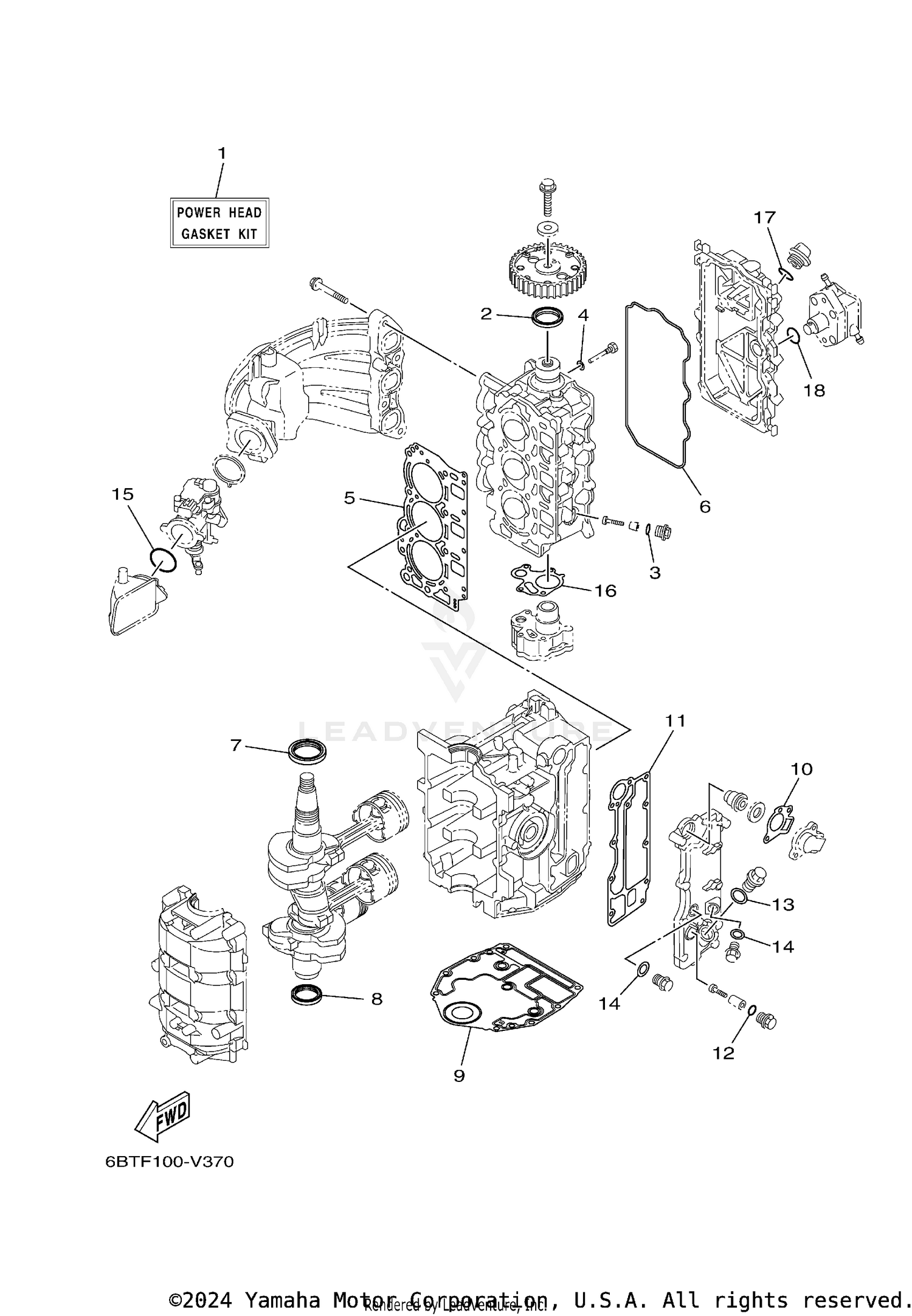

REPAIR KIT 1
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BG-W0001-03-00 | POWER HEAD GASKET KIT Price: $305.45 |
| 2 | 93102-37M40-00 | OIL SEAL Price: $14.90 |
| 3 | 93210-13M63-00 | O-RING Price: $4.75 |
| 4 | 90430-06014-00 | GASKET Price: $8.60 |
| 5 | 6BG-11181-00-00 | GASKET, CYLINDER HEAD 1 Price: $65.80 |
| 6 | 6BG-11356-00-00 | SEAL, CYLINDER 2 Price: $24.65 |
| 7 | 93102-43M42-00 | OIL SEAL Price: $18.30 |
| 8 | 93101-35002-00 | OIL SEAL Price: $21.60 |
| 9 | 6BG-11351-02-00 | GASKET, CYLINDER Price: $73.85 |
| 10 | 62Y-12414-01-00 | GASKET, COVER Price: $10.15 |
| 11 | 6BG-41114-00-00 | GASKET, EXHAUST OUTER COVER Price: $24.65 |
| 12 | 93210-13M63-00 | O-RING Price: $4.75 |
| 13 | 90201-186F1-00 | WASHER, PLATE Price: $10.49 |
| 14 | 90430-14115-00 | GASKET Price: $3.00 |
| 15 | 93210-42159-00 | O-RING Price: $7.70 |
| 16 | 6C5-13329-00-00 | GASKET, PUMP COVER Price: $6.75 |
| 17 | 93210-24235-00 | O-RING This part replaces 93210-24M79-00. Price: $8.49 |
