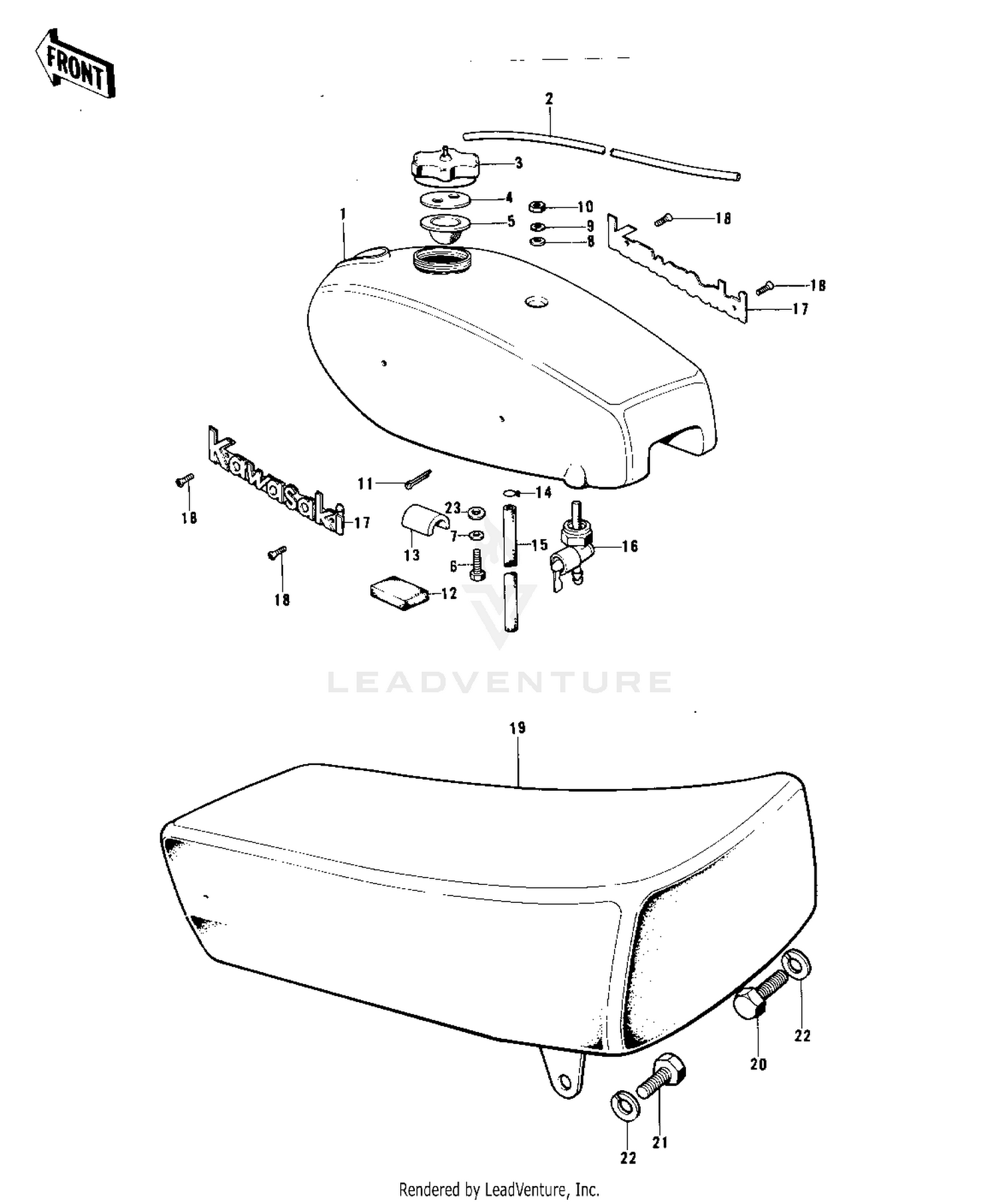

| Ref | Part Number | Description |
|---|
| 1 |
51001-097 |
TANK-FUEL, Price: $252.22 |
| 2 |
700Q051000 |
TUBE-PVC This part replaces 700Q05280. Price: $1.24 |
| 3 |
51049-1002 |
CAP,FUEL TANK Price: $14.80 |
| 4 |
51058-004 |
WASHER,FUEL TANK CAP Price: $7.13 |
| 5 |
51059-012 |
GASKET,FUEL TANK CAP Price: $7.39 |
| 6 |
92003-149 |
BOLT,FUEL TANK FITT Price: $20.13 |
| 7 |
92075-203 |
DAMPER RUBBER Price: $7.97 |
| 8 |
92075-121 |
DAMPER RUBBER,RR FEND Price: $4.56 |
| 9 |
92022-044 |
WASHER,10.5X26X2.3 Price: $3.92 |
| 10 |
92019-016 |
NUT,10MM Price: $4.79 |
| 11 |
550D2540 |
PIN,COTTER,2.5X40 Price: $2.68 |
| 12 |
32103-006 |
MAT BATTERY Price: $5.56 |
| 13 |
51067-002 |
MAT FUEL TANK Price: $17.44 |
| 14 |
92037-072 |
CLAMP-PIPE Price: $7.22 |
| 15 |
92059-144 |
HOSE,FUEL Price: $97.88 |
| 16 |
51023-033 |
FUEL COCK ASSY Price: $67.46 |
| 17 |
56013-055 |
EMBLEM,FUEL TANK Price: $31.54 |
| 18 |
221AB0306 |
SCREW-CSK-CROS This part replaces 221B0306A. Price: $0.74 |
| 19 |
53001-085 |
SEAT ASSY Price: $188.71 |
| 20 |
92003-166 |
BOLT,HEX HEAD,10MM Price: $13.21 |
| 21 |
112B1020 |
BOLT-UPSET,10X20 Price: $3.71 |
| 22 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
