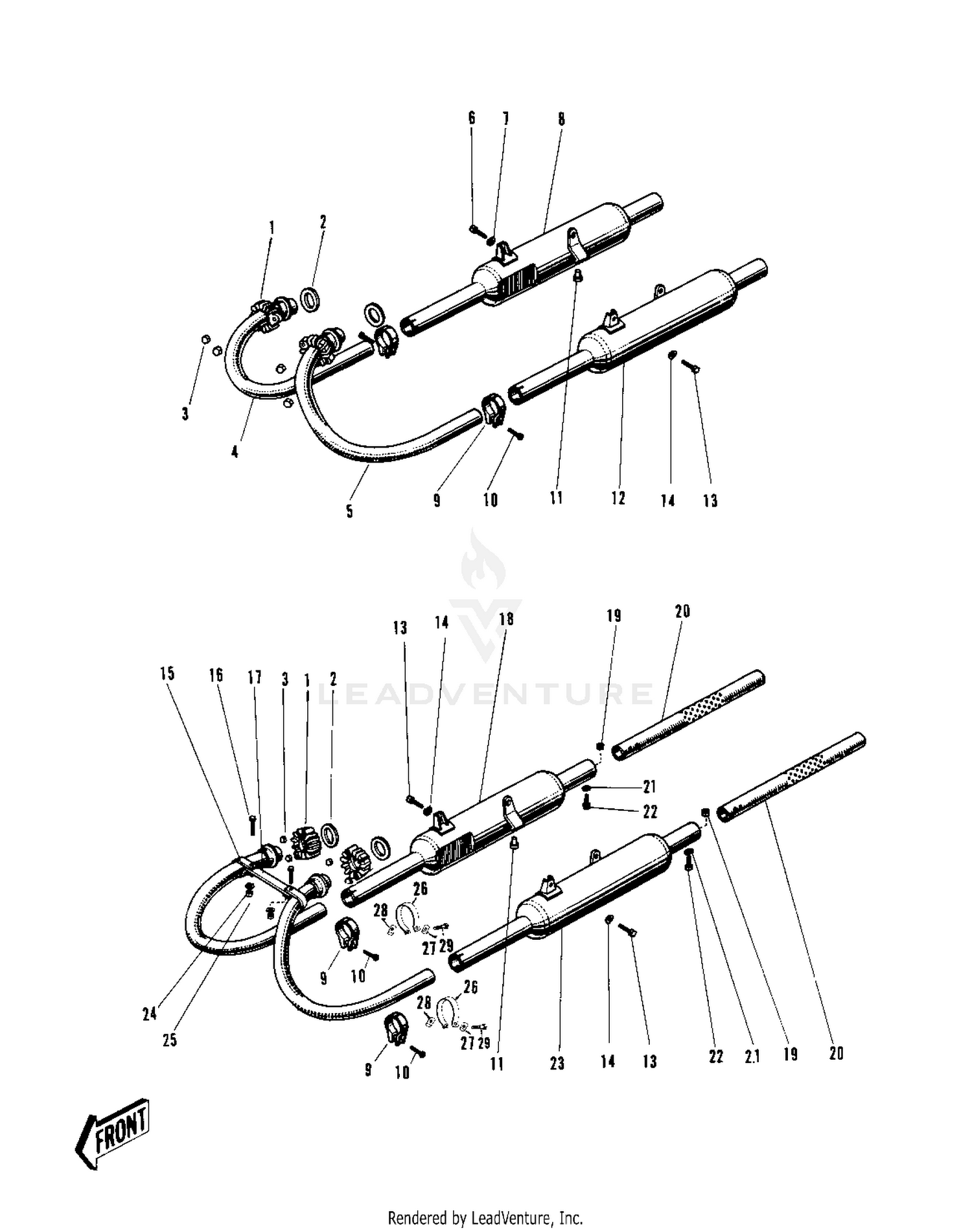

| Ref | Part Number | Description |
|---|
| 1 |
18069-019 |
JOINT EXHAUST PIPE Price: $15.46 |
| 2 |
18067-013 |
GASKET,EXHAUST PIPE HOLDER This part replaces 11009-1840. Price: $5.15 |
| 3 |
92020-007 |
NUT FUEL TANK FRONT This part replaces 92015012. Price: $7.63 |
| 4 |
18049-073 |
PIPE-EXHAUST,R.H Price: $144.66 |
| 5 |
18049-072 |
PIPE-EXHAUST,L.H Price: $144.66 |
| 6 |
92007-003 |
BOLT HEAD LAMP MOUNT Price: $6.64 |
| 7 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 8 |
18003-013 |
MUFFLER SET R.H Price: $79.69 |
| 9 |
92037-030 |
CLAMP Price: $4.27 |
| 10 |
220AA0625 |
SCREW-PAN-CROS,6X25 This part replaces 220B0625. Price: $2.78 |
| 11 |
92075-015 |
DAMPER Price: $5.00 |
| 12 |
18002-032 |
MUFFLER ASSY L.H Price: $78.76 |
| 13 |
92007-003 |
BOLT HEAD LAMP MOUNT Price: $6.64 |
| 14 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 15 |
92037-036 |
CLAMP EXHAUST PIPE Price: $4.57 |
| 17 |
18072-001 |
HOLDER EXHAUST PIPE Price: $9.86 |
| 19 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 20 |
18033-042 |
BAFFLE TUBE Price: $29.64 |
| 21 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 22 |
110B0608 |
BOLT HEX HEAD 6X8 Price: $0.34 |
| 24 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 25 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 26 |
92037-038 |
CLAMP Price: $24.22 |
| 27 |
21056-003 |
BAND END B Price: $26.52 |
| 28 |
21056-002 |
BAND END A Price: $26.52 |
