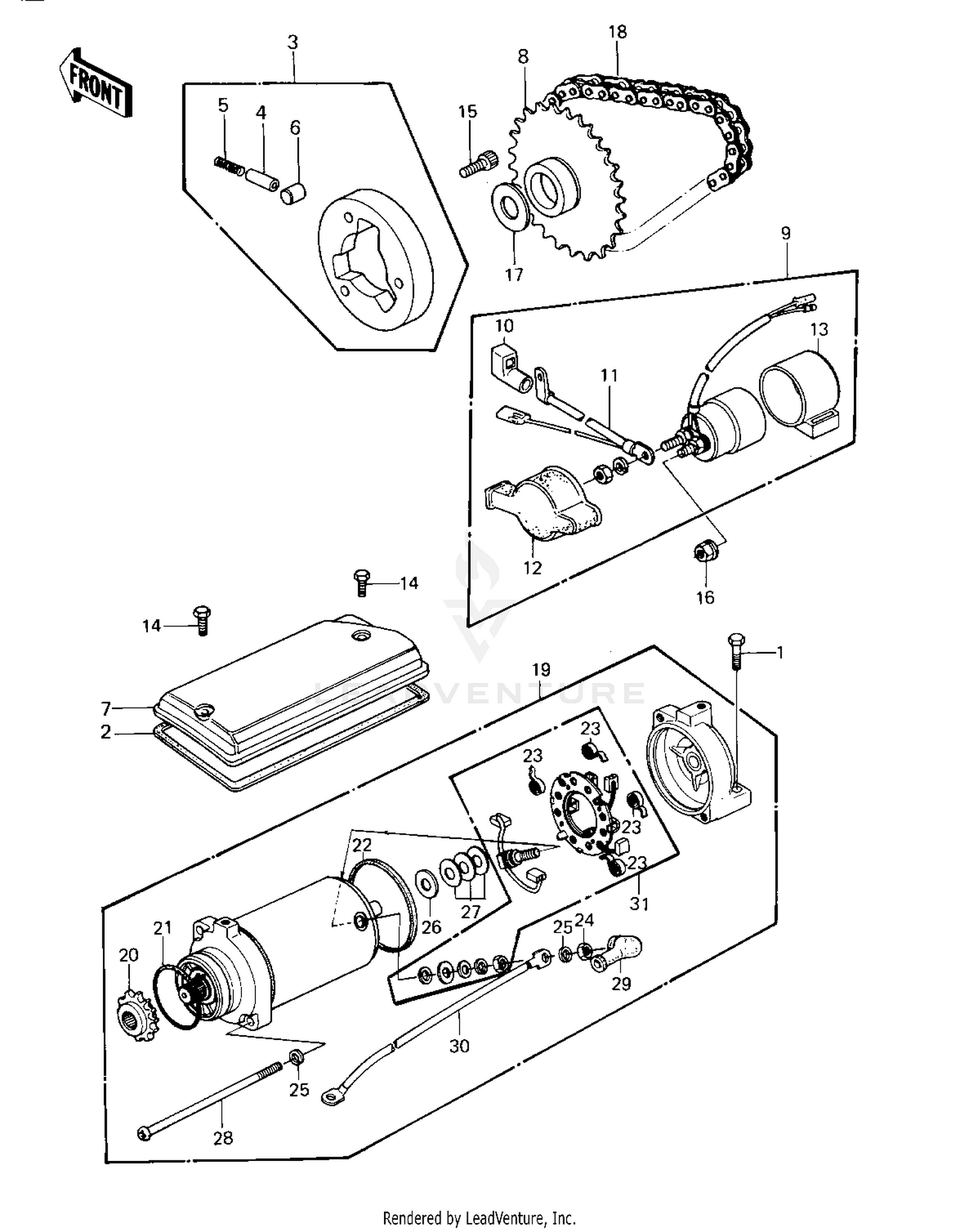

| Ref | Part Number | Description |
|---|
| 1 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 2 |
11009-1006 |
GASKET,STARTER COVER Price: $15.93 |
| 3 |
13193-1001 |
CLUTCH ASSY,STARTER Price: $225.54 |
| 4 |
92043-087 |
PIN Price: $12.76 |
| 5 |
92081-110 |
SPRING Price: $4.76 |
| 6 |
92122-004 |
ROLLER Price: $11.07 |
| 7 |
14025-1284 |
COVER,STARTER Price: $24.62 |
| 8 |
12046-1030 |
SPROCKET,ONWAY CLUTCH Price: $144.60 |
| 9 |
27010-1040 |
SWITCH,MAGNETIC Price: $182.95 |
| 10 |
21017-021 |
CAP,MAG SWTCH TERMNL Price: $13.09 |
| 11 |
26011-1107 |
WIRE LEAD MAG SWITCH Price: $31.33 |
| 12 |
21141-004 |
COVER MAGNETIC SWITCH Price: $12.80 |
| 13 |
92161-1722 |
DAMPER,MAGNETIC SWITCH This part replaces 21064-002. Price: $19.64 |
| 14 |
92001-1151 |
BOLT,6X10 Price: $5.01 |
| 15 |
120CA0816 |
BOLT-SOCKET,8X16 This part replaces 120P0816. Price: $4.45 |
| 16 |
92017-014 |
NUT,LOCK 6MM Price: $7.51 |
| 17 |
92026-1004 |
SPACER,25X40X1 Price: $7.24 |
| 18 |
92057-1009 |
CHAIN,DYNAMO Price: $49.50 |
| 19 |
21163-1236 |
STARTER-ELECTRIC This part replaces 21163-1011. Price: $765.00 |
| 20 |
21053-002 |
SPROCKET STARTNG MOT Price: $43.29 |
| 21 |
92055-1313 |
RING-O This part replaces 21027-005. Price: $8.66 |
| 23 |
21040-1002 |
SPRING,CARBON BRUSH Price: $11.17 |
| 24 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 25 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 26 |
92022-1132 |
WASHER,9.1X18X0.8 Price: $6.22 |
| 27 |
21025-011 |
WASHER,9.1X18X0.2 Price: $6.22 |
| 28 |
92009-1097 |
SCREW,PAN HEAD,6X119 Price: $18.58 |
| 29 |
21017-020 |
CAP,STARTING MOTOR Price: $8.42 |
| 30 |
26010-035 |
WIRE STRTER MOT LEAD Price: $45.78 |
