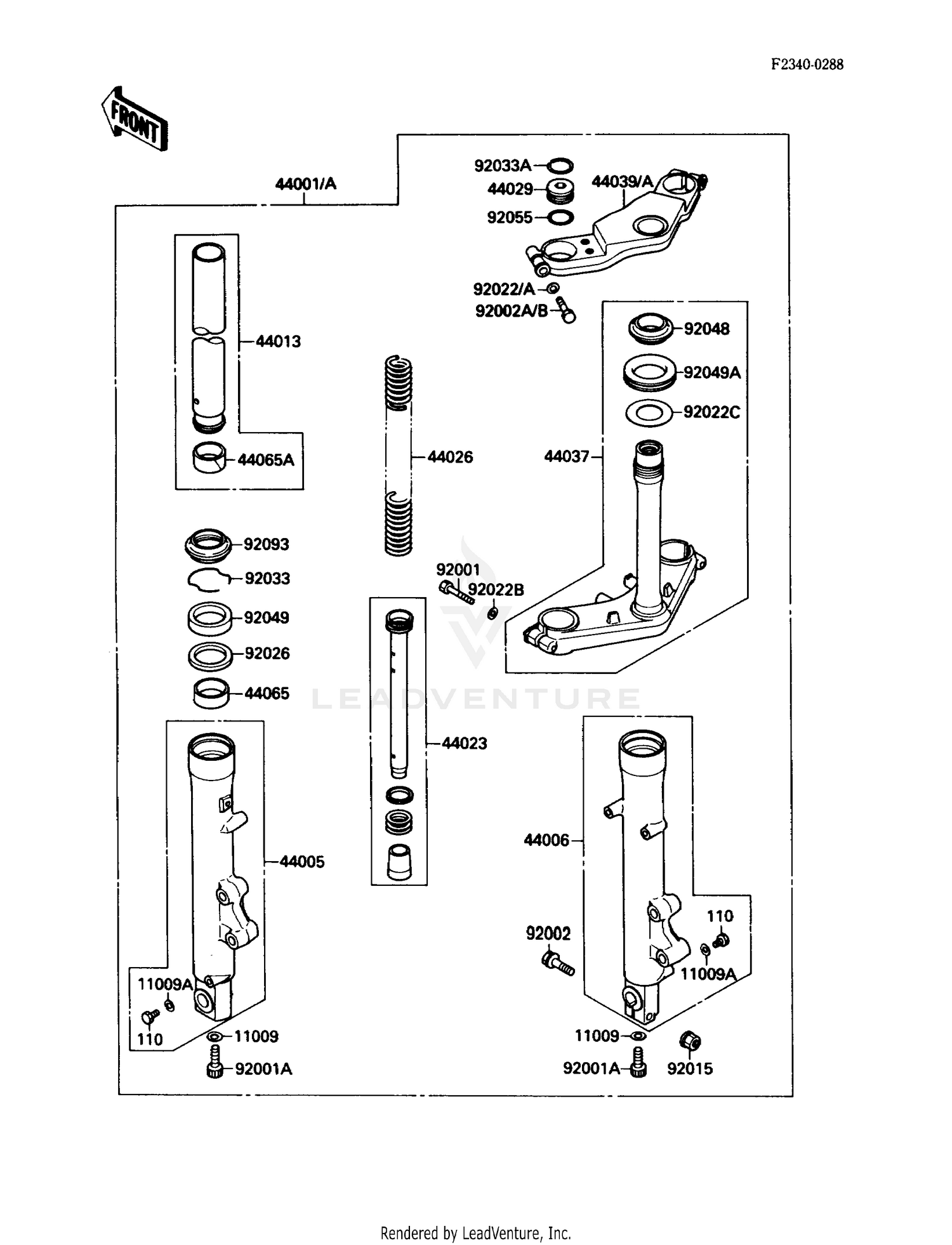

| Ref | Part Number | Description |
|---|
| 11009 |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11009A |
44045-052 |
GASKET,DRAIN PLUG Price: $6.10 |
| 44001 |
44001-1652 |
FORK-FRONT Price: $1,631.98 |
| 44005 |
44005-1261 |
PIPE-LEFT FORK OUTER Price: $368.44 |
| 44006 |
44006-1258 |
PIPE-RIGHT FORK OUTER Price: $404.18 |
| 44013 |
44013-1262 |
PIPE-FORK INNER Price: $302.65 |
| 44023 |
44023-1058 |
CYLINDER-COMP-FORK Price: $124.22 |
| 44026 |
44026-1366 |
SPRING-FRONT FORK Price: $64.63 |
| 44029 |
44029-1124 |
SEAT-FORK SPRING Price: $41.44 |
| 44037 |
44037-1212 |
HOLDER-FORK UNDER Price: $323.15 |
| 44039 |
44039-1161 |
HOLDER-FORK UPPER Price: $233.74 |
| 44065 |
44065-1068 |
BUSHING-FRONT FORK Price: $24.34 |
| 44065A |
44065-1069 |
BUSHING-FRONT FORK,IN Price: $26.65 |
| 92001 |
92001-1454 |
BOLT Price: $9.63 |
| 92001A |
92001-1464 |
BOLT,FORK CYLINDER Price: $6.22 |
| 92002 |
92002-1159 |
BOLT,FLANGED,8X50 Price: $7.69 |
| 92002A |
92002-1812 |
BOLT Price: $8.16 |
| 92015 |
92210-0004 |
NUT,FLANGED,8MM This part replaces 92015-1408. Price: $5.38 |
| 92022A |
92022-1703 |
WASHER,SPRING,8MM Price: $3.42 |
| 92022B |
92022-1704 |
WASHER,SPRING,10MM Price: $3.42 |
| 92022C |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 92026 |
92026-1038 |
SPACER,FORK Price: $9.58 |
| 92033 |
92033-1193 |
RING-SNAP,FORK This part replaces 92033-1219. Price: $6.33 |
| 92033A |
92033-1220 |
RING-SNAP,FORK TOP Price: $9.24 |
| 92048 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 92049 |
92049-1226 |
SEAL-OIL,FORK Price: $22.14 |
| 92049A |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 92055 |
92055-1359 |
RING-O,FORK SPRING SE Price: $9.33 |
| 92093 |
92093-1196 |
SEAL,FORK Price: $24.34 |
