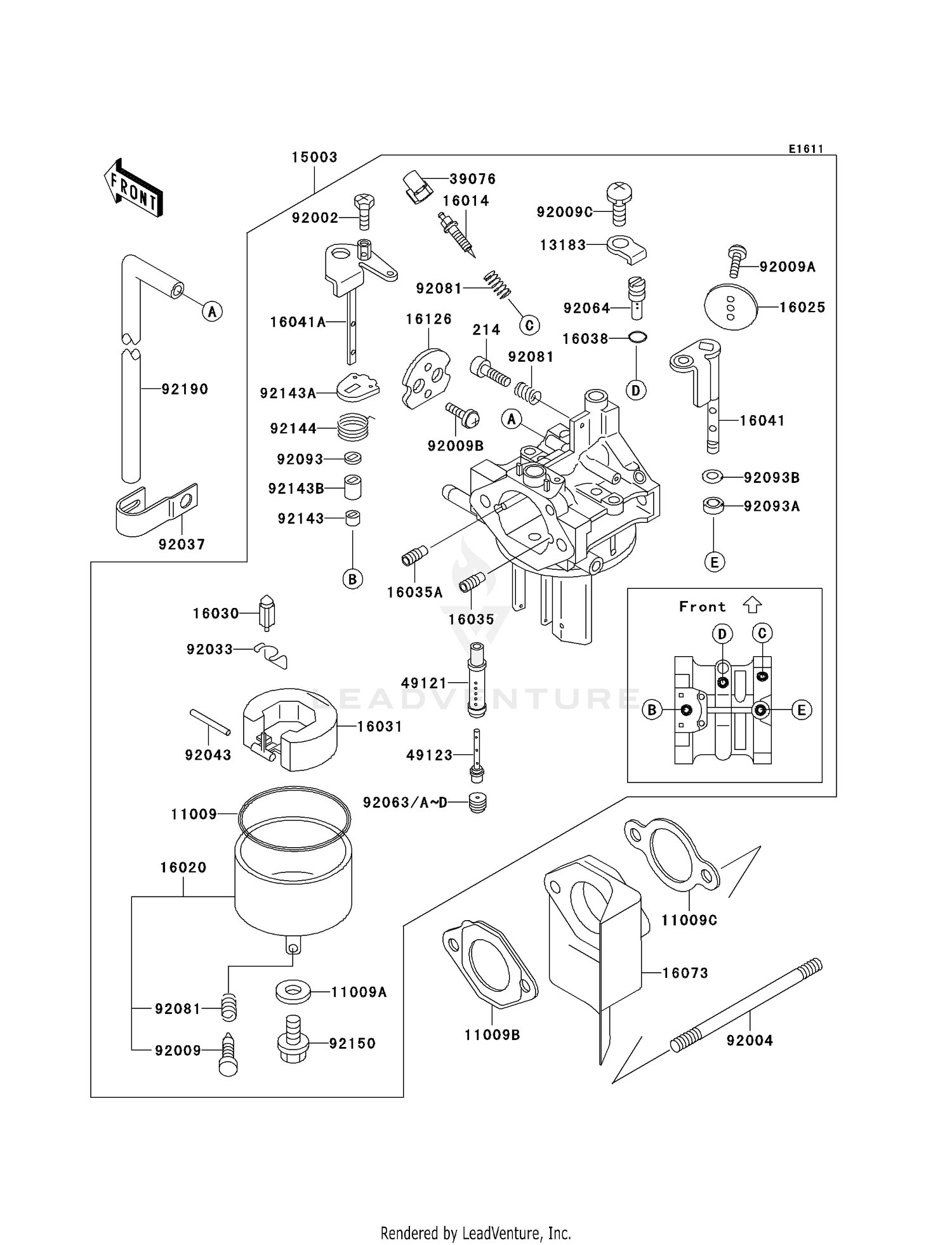

CARBURETOR
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 214 | 214AA0414 | SCREW-PAN+- This part replaces 214B0414. Price: $0.71 |
| 11009 | 11009-2024 | GASKET Price: $4.15 |
| 11009A | 11009-2025 | GASKET Price: $1.99 |
| 11009B | 11009-2827 | GASKET-CARBURETOR Price: $3.58 |
| 11009C | 11009-2939 | GASKET Price: $1.66 |
| 13183 | 13183-2252 | PLATE Price: $3.50 |
| 15003 | 15003-2589 | CARBURETOR-ASSY Price: $183.66 |
| 16014 | 16014-2076 | SCREW-PILOT AIR Price: $14.56 |
| 16020 | 16020-2005 | CHAMBER-FLOAT Price: $42.45 |
| 16025 | 16025-2165 | VALVE-THROTTLE,#165 Price: $8.13 |
| 16030 | 16030-2073 | VALVE-NEEDLE SPRING Price: $23.20 |
| 16031 | 16031-2066 | FLOAT Price: $27.00 |
| 16035 | 16035-2056 | JET-AIR #1.8 Price: $7.96 |
| 16035A | 16035-2062 | JET-AIR,#1.3 Price: $8.50 |
| 16038 | 16038-024 | O RING Price: $1.56 |
| 16041 | 16041-2203 | SHAFT-THROTTLE Price: $25.96 |
| 16041A | 16041-2209 | SHAFT-CARBURETOR,CHOK Price: $21.44 |
| 16073 | 16073-2154 | INSULATOR Price: $5.07 |
| 16126 | 16126-2207 | VALVE,CHOKE Price: $7.22 |
| 39076 | 39076-2053 | LIMITER Price: $6.29 |
| 49121 | 49121-2214 | NOZZLE-MAIN Price: $20.55 |
| 49123 | 49123-2079 | HOLDER-MAIN JET Price: $19.49 |
| 92002 | 92002-2008 | BOLT Price: $1.72 |
| 92004 | 92004-2125 | STUD-6X80 Price: $3.53 |
| 92009 | 92009-2015 | SCREW,DRAIN Price: $4.94 |
| 92009A | 92009-2080 | SCREW Price: $1.96 |
| 92009B | 92009-2081 | SCREW Price: $1.72 |
| 92009C | 92009-2244 | SCREW Price: $1.75 |
| 92033 | 92033-2067 | CLIP Price: $3.64 |
| 92037 | 92037-2081 | CLAMP Price: $2.44 |
| 92043 | 92043-2006 | PIN,FLOAT Price: $3.06 |
| 92063D | 92063-2331 | JET-MAIN,#107.5 Price: $10.56 |
| 92064 | 92064-2118 | JET-PILOT,#40 Price: $12.97 |
| 92081 | 92081-2009 | SPRING Price: $2.78 |
| 92093 | 92093-2081 | SEAL-THROTTLE SHAFT Price: $2.33 |
| 92093A | 92093-2082 | SEAL Price: $1.90 |
| 92093B | 92093-2083 | SEAL Price: $1.72 |
| 92143 | 92143-2132 | COLLAR Price: $3.47 |
| 92143A | 92143-2133 | RING Price: $3.58 |
| 92143B | 92143-2134 | RING Price: $5.03 |
| 92144 | 92144-2269 | SPRING Price: $7.75 |
| 92150 | 92150-2146 | BOLT Price: $4.11 |
