| Ref | Part Number | Description |
|---|
| 3 |
114045200 |
Hair Pin Price: $11.49 |
| 5 |
205052544 |
Socket Screw M5 X 25 Price: $1.69 |
| 6 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 Price: $2.89 |
| 8 |
250000412 |
Hex. Flange Screw M6 X 12, Scotch Grip Price: $4.19 |
| 9 |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 11 |
234051410 |
Flat Washer M5 Price: $0.55 |
| 13 |
250000418 |
Hex. Flange Screw M6 X 18, Scotch Grip Price: $4.19 |
| 14 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. Price: $1.49 |
| 15 |
250000283 |
Torx Screw M8 X 25, Scotch Grip Price: $6.39 |
| 16 |
250000533 |
Hex. Flange Screw M8 X 1.25 X 16 Price: $3.09 |
| 17 |
250200006 |
Spring Washer 14 mm Price: $7.19 |
| 18 |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 20 |
250400050 |
Spring Pin M10 X 22 Price: $3.09 |
| 21 |
250400061 |
Spring Pin M3 X 18 Price: $2.19 |
| 23 |
293150103 |
Pop Rivet 3/16" Price: $0.57 |
| 25 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 26 |
293370037 |
Circlip Price: $3.29 |
| 27 |
293370049 |
Circlip Price: $5.09 |
| 30 |
390909100 |
Avex Rivet Price: $0.30 |
| 31 |
390909200 |
Avex Rivet Price: $0.30 |
| 34 |
414817700 |
Spring, Blue/green Price: $47.99 |
| 35 |
417004308 |
Pin Price: $14.49 |
| 37 |
417005600 |
Washer Price: $4.19 |
| 38 |
417007500 |
Spring Cover Ass'y Price: $46.99 |
| 42 |
417009205 |
Guard Price: $21.99 |
| 43 |
417120000 |
Drive Pulley Bolt Price: $66.99 |
| 45 |
417127317 |
Sliding Flange Ass'y This part replaces 417126955. Price: $164.99 |
| 48 |
417127016 |
Pulley Roller Price: $25.99 |
| 49 |
417127137 |
Green, Spring Price: $42.99 |
| 51 |
417127377 |
Cam Ass'y This part replaces 417127083. Price: $164.99 |
| 53 |
417127105 |
Cam Ass'y Price: $134.99 |
| 55 |
417127116 |
Swivel Abutment Price: $9.59 |
| 56 |
417127155 |
Washer Price: $8.39 |
| 59 |
415129604 |
Calibration Ass'y Price: $22.49 |
| 68 |
417127387 |
Fix Flange Ass'y This part replaces 417127332. Price: $499.99 |
| 70 |
417127294 |
Pivot Stud Price: $14.99 |
| 72 |
417222181 |
Sliding Flange Ass'y Price: $209.99 |
| 74 |
417222758 |
Bushing Price: $22.49 |
| 78 |
417222312 |
Spring Seat Price: $9.79 |
| 81 |
417222515 |
Ramp 412 Price: $39.99 |
| 83 |
417222671 |
Lever Price: $49.99 |
| 84 |
417225070 |
Ring Gear_Starter This part replaces 417223042. Price: $244.99 |
| 85 |
417222937 |
Fixed Flange Ass'y Price: $239.99 |
| 88 |
417222947 |
Roller Price: $21.99 |
| 91 |
417222992 |
Slider Shoe Price: $4.59 |
| 92 |
417004302 |
Stopper Washer Price: $15.99 |
| 93 |
417223164 |
Lever Axle Price: $4.59 |
| 94 |
417223669 |
Governor Cup Ass'y Price: $489.99 |
| 96 |
417223501 |
Calibration Screw Price: $14.49 |
| 97 |
Not |
Available As Spare Part - Drive Pulley Ass'y |
| 98 |
417300357 |
Belt Guard Price: $93.99 |
| 99 |
417300381 |
Guide Price: $11.99 |
| 100 |
417300551 |
Drive Belt This part replaces 417300383. Price: $179.99 |
| 101 |
417300421 |
Reinforcement Plate Price: $4.49 |
| 102 |
417300423 |
Front Bracket Price: $7.49 |
| 103 |
417300430 |
Front Support Price: $14.99 |
| 104 |
417300440 |
CVT Air Duct Pulley Price: $29.99 |
| 105 |
417300445 |
Stopper Price: $10.99 |
| 106 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership Price: $31.99 |
| 107 |
504152574 |
Ball Bearing Price: $35.99 |
| 108 |
516005503 |
Decal English Price: $0.01 |
| 109 |
516005509 |
Safety Belt Guard Decal Price: $0.01 |
| 110 |
517225900 |
Flat Washer Price: $0.18 |
| 112 |
732401030 |
O-Ring Price: $1.19 |
| 113 |
250400060 |
Cotter Pin Price: $2.09 |
| 120 |
120CA0510 |
BOLT-SOCKET,5X10 Price: $1.57 |
| 130 |
130AA0608 |
BOLT-FLANGED,6X8 Price: $0.68 |
| 130A |
130BA0520 |
BOLT-FLANGED,5X20 Price: $0.92 |
| 130B |
130BA0525 |
BOLT-FLANGED,5X25 Price: $0.65 |
| 221 |
221AA0512 |
SCREW-CSK-CROS,5X12 Price: $0.74 |
| 482 |
482J5000 |
CIRCLIP-TYPE-E,5MM Price: $3.41 |
| 610 |
610A0408 |
ROLLER,4X8 Price: $4.31 |

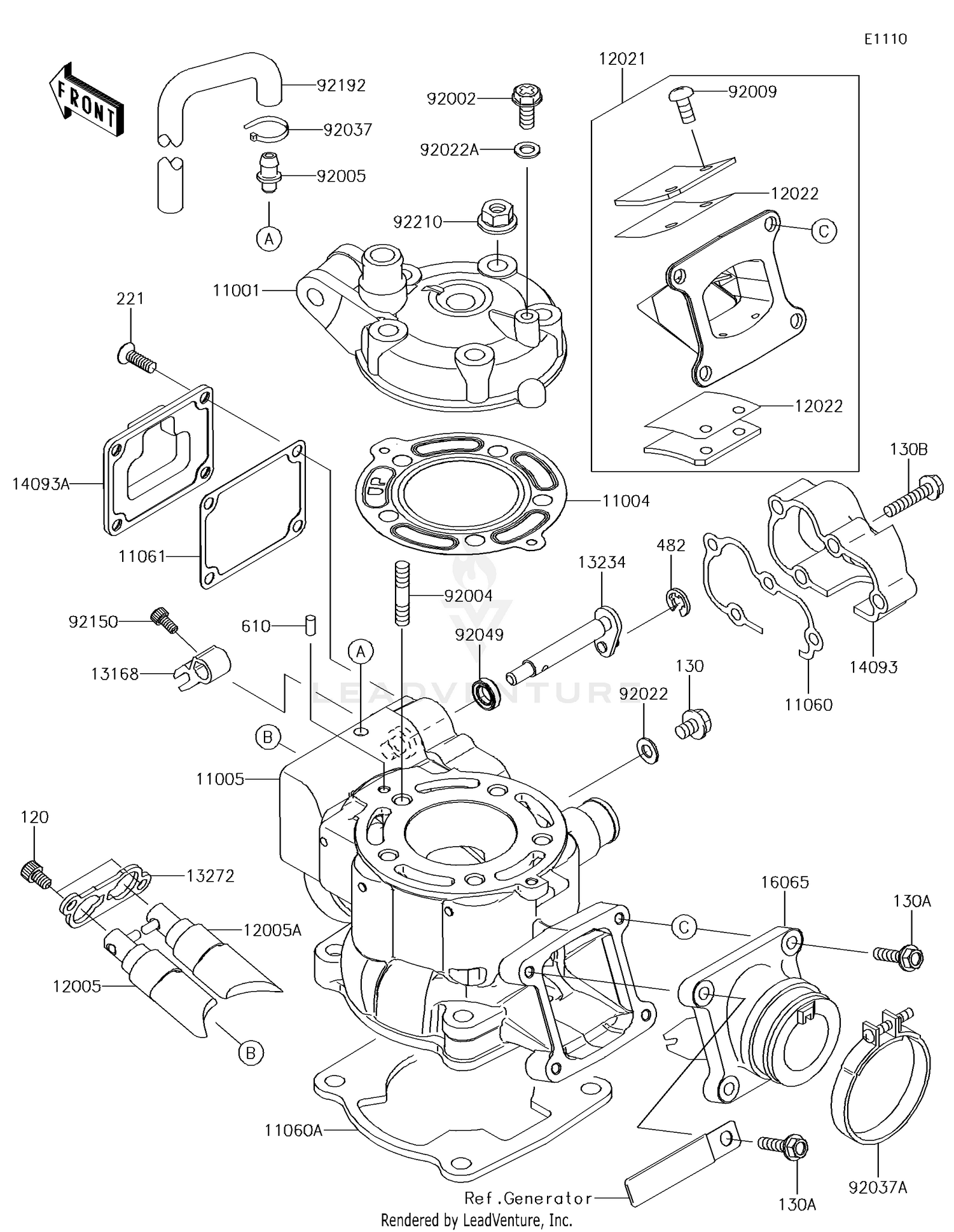

| 11001 |
11001-0771 |
HEAD-CYLINDER Price: $134.58 |
| 11004 |
11004-0760 |
GASKET-HEAD Price: $29.61 |
| 11005 |
11005-0749 |
CYLINDER-ENGINE This part replaces 11005-0621. Price: $638.24 |
| 11060 |
11060-1778 |
GASKET,GOVERNOR COVER Price: $5.85 |
| 11060A |
11060-1779 |
GASKET,CYLINDER BASE Price: $7.55 |
| 11061 |
11061-0889 |
GASKET Price: $5.62 |
| 12005 |
12005-0726 |
VALVE-EXHAUST Price: $165.91 |
| 12005A |
12005-0728 |
VALVE-EXHAUST Price: $165.91 |
| 12021 |
12021-1123 |
VALVE-ASSY-REED Price: $166.44 |
| 12022 |
12022-1084 |
VALVE-REED Price: $58.38 |
| 13168 |
13168-0779 |
LEVER Price: $34.21 |
| 13234 |
13234-0048 |
SHAFT-COMP Price: $34.67 |
| 13272 |
13272-1450 |
PLATE Price: $6.24 |
| 14093 |
14093-0003 |
COVER Price: $29.77 |
| 14093A |
14093-0046 |
COVER Price: $41.06 |
| 16065 |
16065-1372 |
HOLDER-CARBURETOR Price: $64.25 |
| 92002 |
92002-1222 |
BOLT,6X10 Price: $8.10 |
| 92004 |
92004-1253 |
STUD,8X33 Price: $4.65 |
| 92005 |
92005-0050 |
FITTING Price: $14.14 |
| 92009 |
92009-1014 |
SCREW,REED VALVE Price: $2.49 |
| 92022 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 92022A |
92022-304 |
WASHER,6.2X11X1 Price: $3.65 |
| 92037 |
92037-1173 |
CLAMP Price: $3.49 |
| 92037A |
92037-1843 |
CLAMP Price: $8.58 |
| 92049 |
92049-1238 |
SEAL-OIL,SD088144 Price: $10.46 |
| 92150 |
92150-1888 |
BOLT,SOCKET,4X8 Price: $3.32 |
| 92192 |
92192-0265 |
TUBE,L=426.3 Price: $15.06 |
