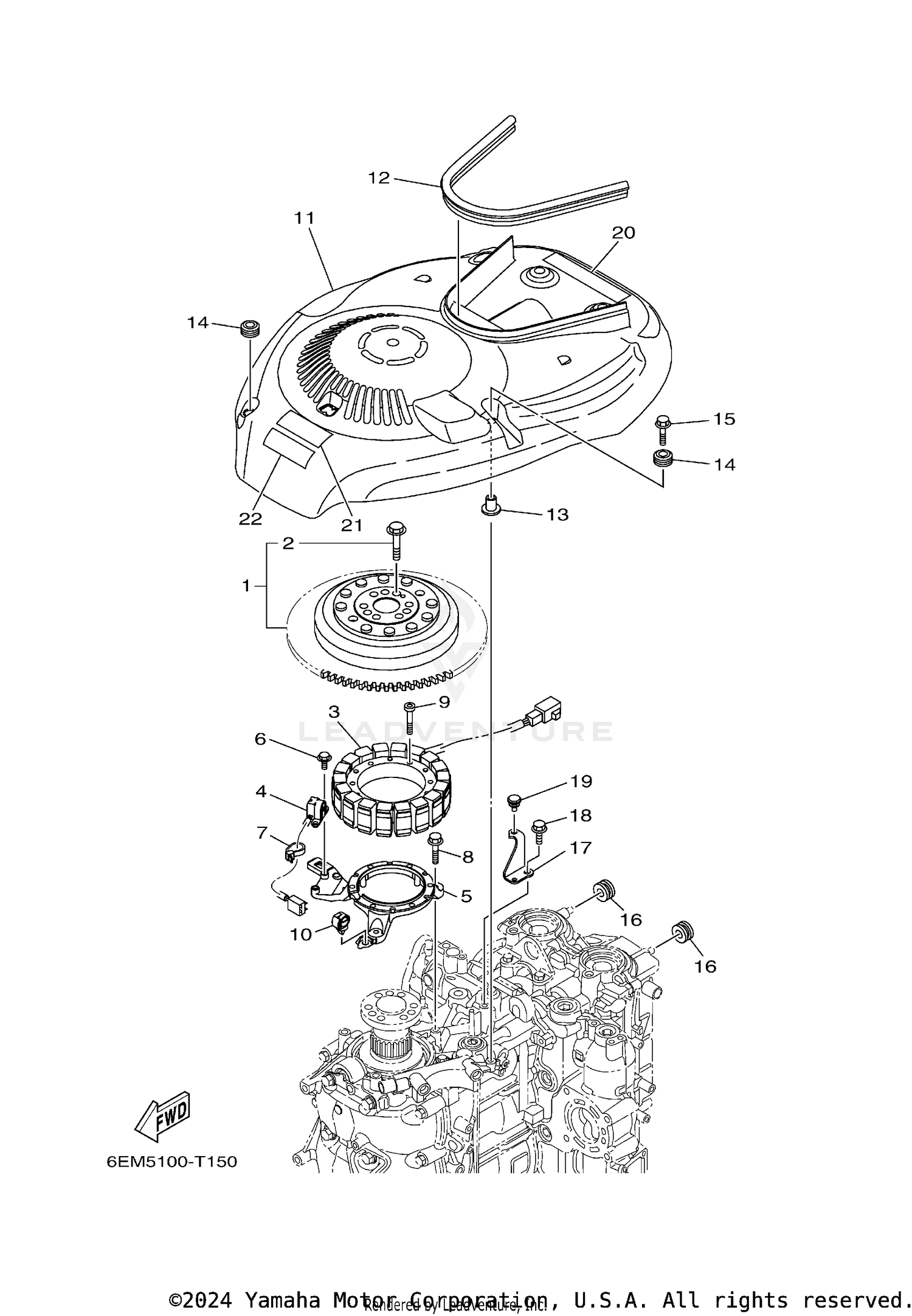

| Ref | Part Number | Description |
|---|
| 1 |
6EK-W8145-01-00 |
ROTOR ASSY WITH BOLTS Price: $877.00 |
| 2 |
6EK-W9010-00-00 |
BOLT SET Price: $79.90 |
| 3 |
6EK-81410-00-00 |
STATOR ASSY Price: $426.20 |
| 4 |
6CB-85580-01-00 |
COIL, PULSER This part replaces 6CB-85580-00-00. Price: $98.10 |
| 5 |
6EK-85561-00-00 |
BASE, MAGNETO Price: $75.50 |
| 6 |
97595-05516-00 |
BOLT, WITH WASHER Price: $1.55 |
| 7 |
90465-13M97-00 |
CLAMP Price: $3.45 |
| 8 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 9 |
91312-06035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.28 |
| 10 |
90464-13249-00 |
CLAMP Price: $3.55 |
| 11 |
6EK-81337-01-00 |
COVER, FLYWHEEL Price: $50.25 |
| 12 |
6EK-42617-00-00 |
DAMPER, FORM Price: $25.00 |
| 13 |
90387-06119-00 |
COLLAR Price: $4.80 |
| 14 |
6A0-82317-01-00 |
DAMPER, IGNITION C Price: $7.10 |
| 15 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 16 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 17 |
6EK-8132G-00-00 |
PLATE Price: $6.60 |
| 18 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 19 |
90480-06M19-00 |
GROMMET Price: $5.35 |
| 20 |
6EK-13437-62-00 |
MARK, CAUTION Price: $6.85 |
| 21 |
6EE-81994-40-00 |
LABEL, SAFETY Price: $17.10 |
