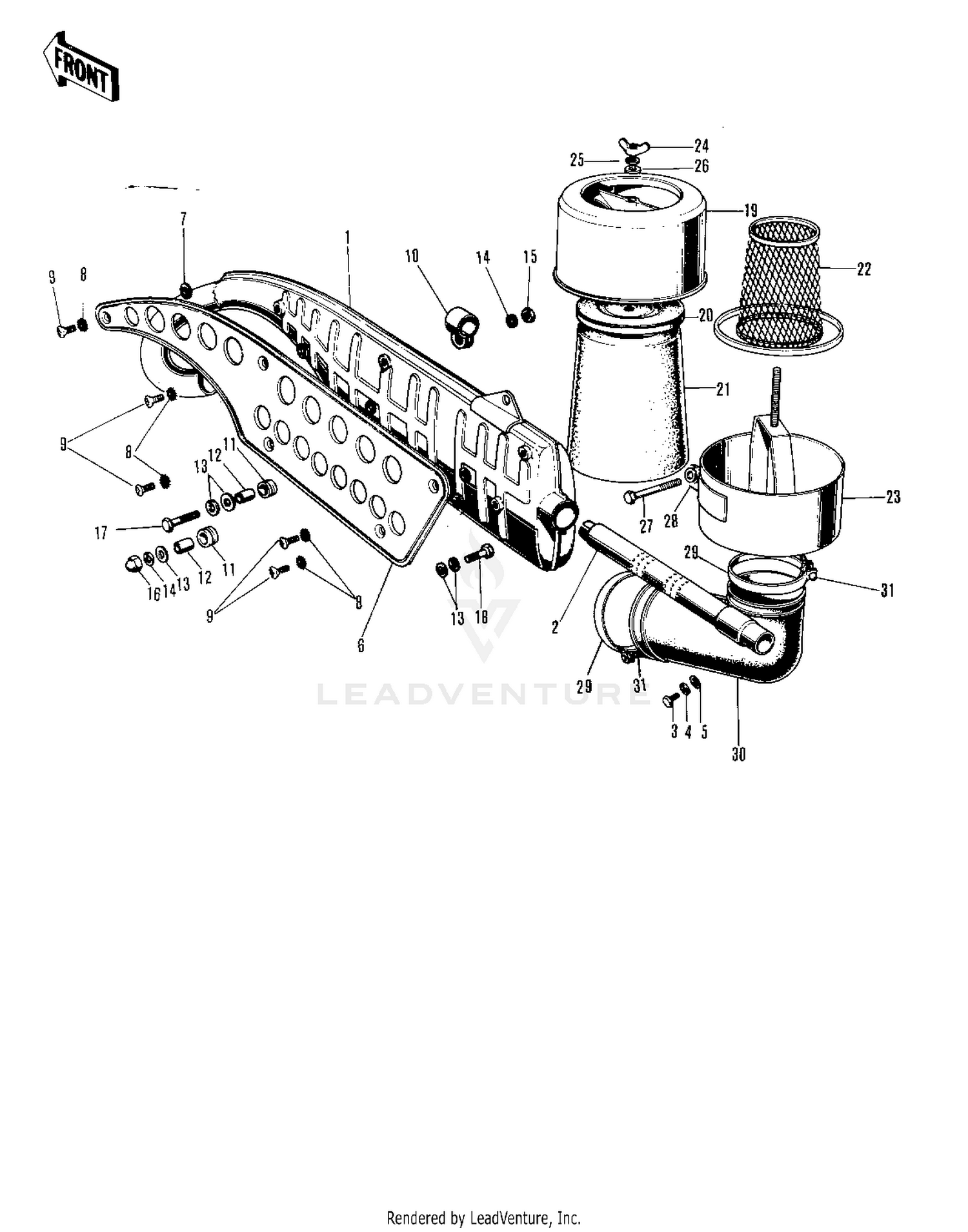

| Ref | Part Number | Description |
|---|
| 2 |
18033-040 |
BAFFLE TUBE Price: $71.81 |
| 3 |
112BA0610 |
BOLT-UPSET,6X10 This part replaces 112G0610. Price: $0.58 |
| 4 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 5 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 6 |
18064-003-21 |
COVER-MUFFLER,BLACK Price: $37.44 |
| 7 |
18065-002 |
INSULATOR HEAT Price: $4.19 |
| 8 |
463H0600 |
WASHER LOCK 6MM Price: $0.81 |
| 9 |
220E0610 |
SCREW PAN HEAD 6X10 Price: $4.97 |
| 10 |
32069-039 |
BRACKET,UPPER MUFFLER Price: $6.50 |
| 11 |
18063-005 |
DAMPER RUBBER-MUFFLER Price: $5.21 |
| 12 |
92027-102 |
COLLAR,8.8X12X10.7 Price: $1.08 |
| 13 |
92022-1564 |
WASHER,8X26X2.3 Price: $4.31 |
| 14 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 15 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 16 |
92020-007 |
NUT FUEL TANK FRONT Price: $7.63 |
| 17 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 18 |
114G0828 |
BOLT HEX HEAD 8X28 Price: $5.21 |
| 19 |
11012-016 |
CAP-AIR CLEANER Price: $26.10 |
| 20 |
11013-024 |
ELEMENT,AIR CLNR,TOP Price: $3.44 |
| 21 |
11013-023 |
ELEMENT,AIR CLNR,MAIN Price: $5.81 |
| 22 |
11014-003 |
WIRE NET-AIR CLEANER Price: $27.38 |
| 23 |
11011-011 |
BODY-AIR CLEANER Price: $26.74 |
| 24 |
92015-030 |
NUT-WING,6MM Price: $2.88 |
| 25 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 26 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 27 |
92001-1456 |
BOLT,EXCLUSIVE Price: $4.90 |
| 28 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 29 |
92037-129 |
CLAMP,AIR CLEANER Price: $16.69 |
| 30 |
11026-002 |
CONNECTOR Price: $7.37 |
