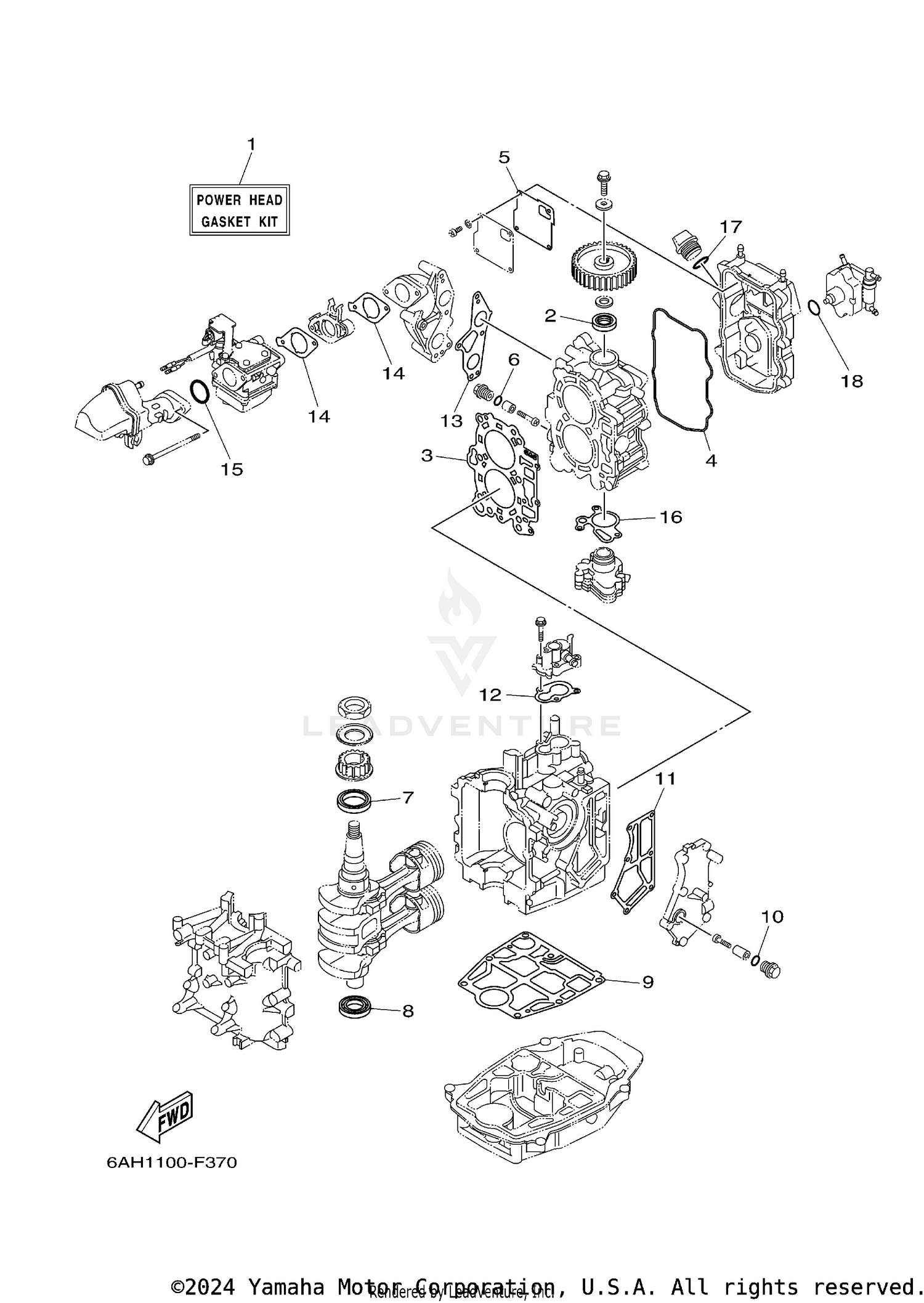

REPAIR KIT 1
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AG-W0001-01-00 | POWER HEAD GASKET KIT This part replaces 6AG-W0001-00-00. Price: $196.70 |
| 2 | 93102-22010-00 | OIL SEAL Price: $5.95 |
| 3 | 6AG-11181-10-00 | GASKET, CYLINDER HEAD 1 Price: $69.70 |
| 4 | 6AH-11356-00-00 | SEAL, CYLINDER 2 Price: $17.75 |
| 5 | 6AH-11169-00-00 | GASKET, BREATHER COVER Price: $6.85 |
| 6 | 93210-13M63-00 | O-RING Price: $4.75 |
| 7 | 93102-37004-00 | OIL SEAL Price: $22.40 |
| 8 | 93102-25014-00 | OIL SEAL Price: $20.70 |
| 10 | 93210-13M63-00 | O-RING Price: $4.75 |
| 11 | 6AH-41114-00-00 | GASKET, EXHAUST OUTER COVER Price: $20.70 |
| 12 | 6AH-12414-00-00 | GASKET, COVER Price: $5.45 |
| 13 | 6AH-13645-00-00 | GASKET, MANIFOLD 1 Price: $7.45 |
| 14 | 6AH-13646-00-00 | GASKET, MANIFOLD 2 Price: $4.50 |
| 15 | 93210-35M86-00 | O-RING Price: $5.35 |
| 17 | 93210-24235-00 | O-RING This part replaces 93210-24M79-00. Price: $8.49 |
