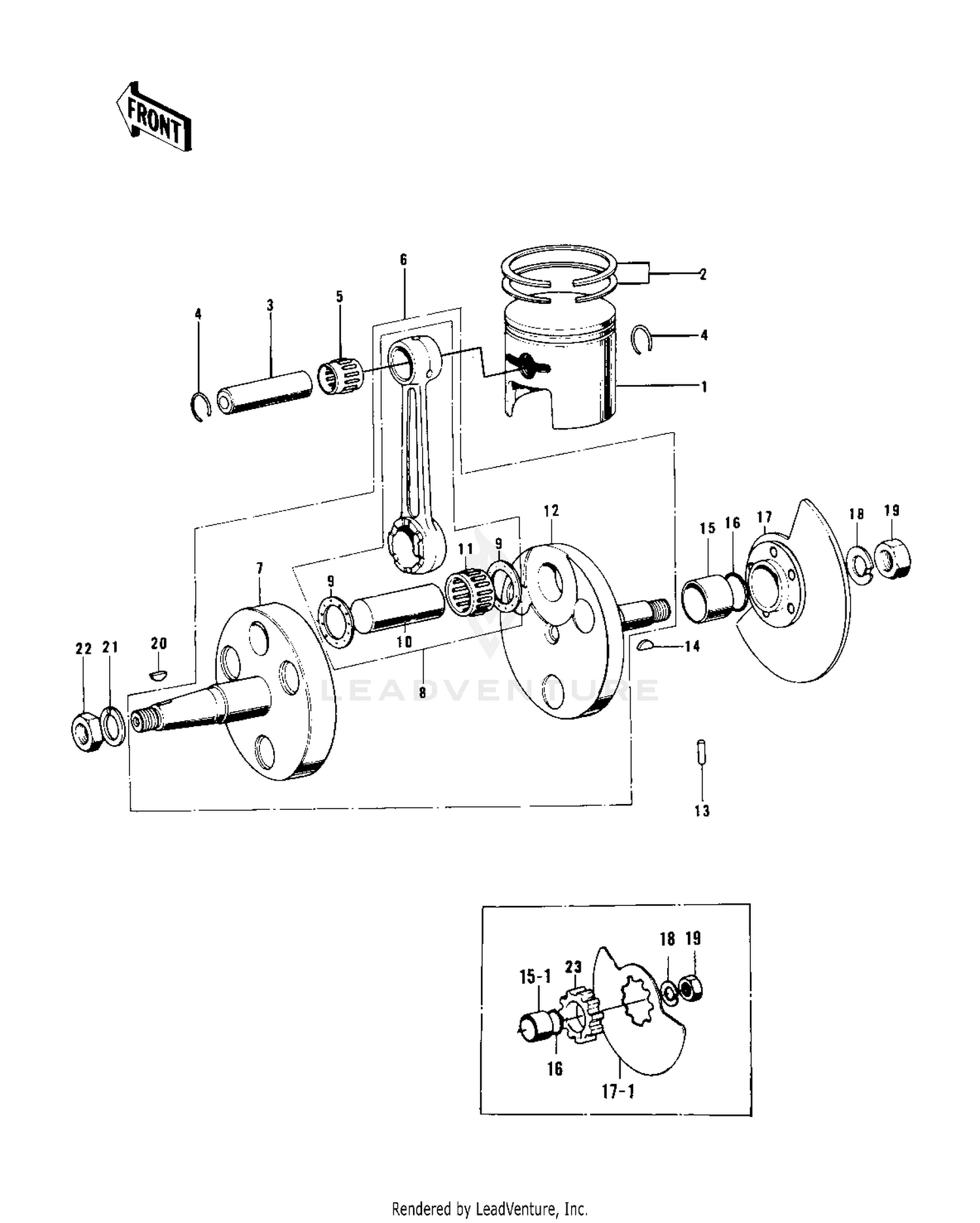

| Ref | Part Number | Description |
|---|
| 1 |
13001-0713 |
PISTON-ENGINE,STD This part replaces 13001-057. Price: $101.72 |
| 1 |
13027-057 |
PISTON,0.040 O-S Price: $102.52 |
| 1 |
13029-0702 |
PISTON-ENGINE L,O/S 0 This part replaces 13029-059. Price: $144.64 |
| 2 |
13008-043 |
RING SET,STD Price: $80.49 |
| 2 |
13024-050 |
RING NET,0.040 O.S Price: $72.11 |
| 2 |
13025-047 |
RING NET,0.020 O.S Price: $72.11 |
| 3 |
13002-003 |
PIN-PISTON Price: $16.11 |
| 4 |
92036-003 |
CIRCLIP PISTON PIN Price: $0.65 |
| 6 |
13036-043 |
CRANK&CONROD ASSY Price: $408.49 |
| 7 |
13037-1136 |
CRANKSHAFT,LH Price: $187.12 |
| 8 |
13044-5015 |
CONNECTING ROD SET Price: $172.92 |
| 9 |
92025-047 |
WASHER-SIDE Price: $8.18 |
| 10 |
13035-025 |
CRANK PIN Price: $25.14 |
| 12 |
13037-1135 |
CRANKSHAFT,RH Price: $187.12 |
| 13 |
610A0410 |
ROLLER,4X10 Price: $4.31 |
| 14 |
92038-003 |
WOODRUFF KEY PRY PINI Price: $5.37 |
| 16 |
670B2016 |
O RING,16MM Price: $1.36 |
| 18 |
92024-003 |
WASHER LOCK 12MM Price: $4.78 |
| 19 |
92015-006 |
NUT 12MM Price: $5.59 |
| 20 |
510A3200 |
KEY-WOODRUFF Price: $2.70 |
| 21 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 22 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
