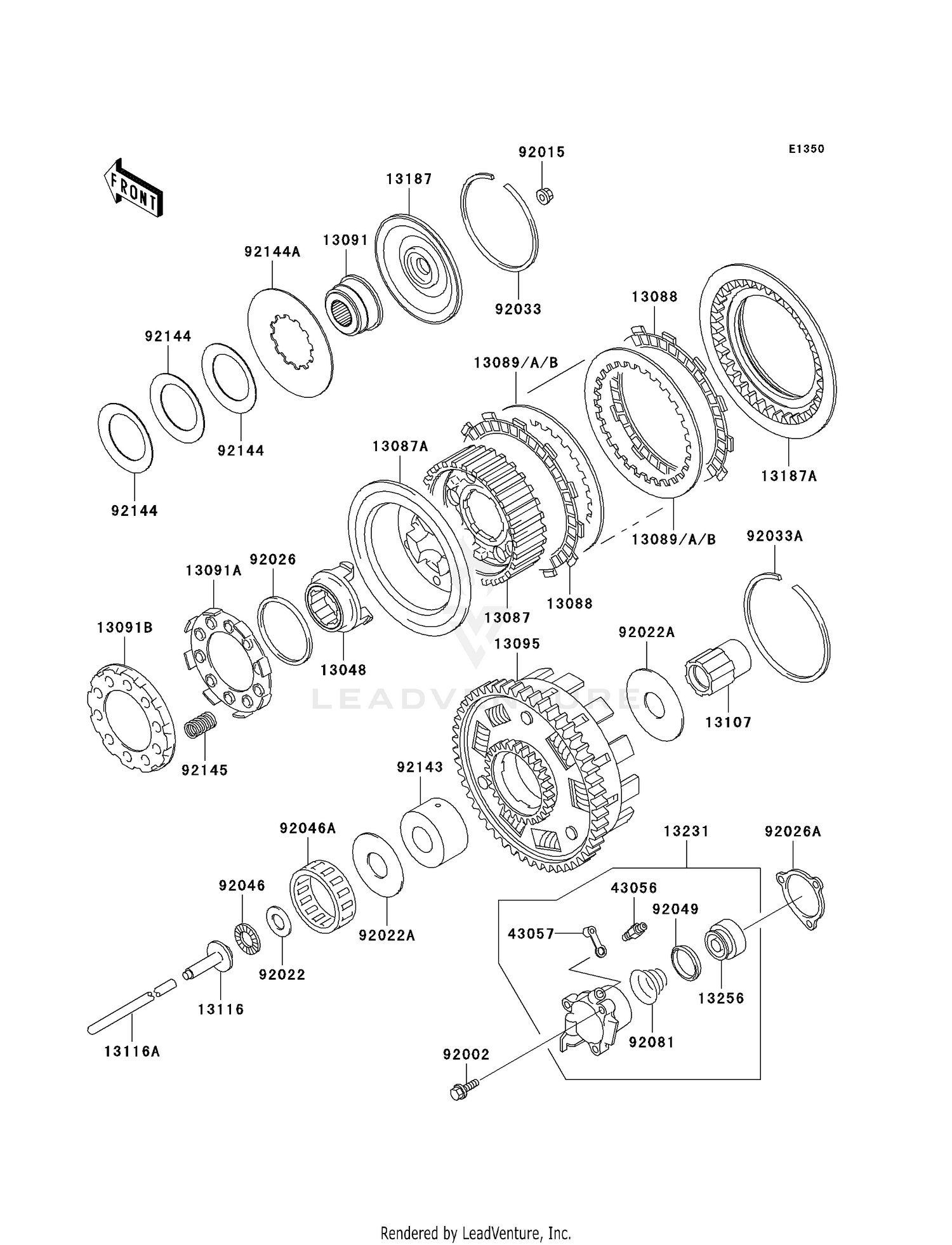

| Ref | Part Number | Description |
|---|
| 13048 |
13048-0015 |
CAM-DAMPER This part replaces 13048-1087. Price: $96.01 |
| 13087 |
13087-1103 |
HUB-CLUTCH,OUTER Price: $235.98 |
| 13087A |
13087-1110 |
HUB-CLUTCH,INNER Price: $301.88 |
| 13088 |
13088-1018 |
PLATE-FRICTION Price: $20.06 |
| 13089 |
13089-1075 |
PLATE-CLUTCH,T=2.0 Price: $14.01 |
| 13089A |
13089-1080 |
PLATE-CLUTCH,T=1.6 Price: $15.40 |
| 13089B |
13089-1081 |
PLATE-CLUTCH,T=2.3 Price: $15.40 |
| 13091 |
13091-1494 |
HOLDER,CLUTCH SPRING Price: $66.00 |
| 13091A |
13091-1495 |
HOLDER,DAMPER SPRING Price: $96.29 |
| 13091B |
13091-1496 |
HOLDER,DAMPER SPRING Price: $91.90 |
| 13095 |
13095-1395 |
HOUSING-COMP-CLUTCH This part replaces 13095-1342. Price: $932.46 |
| 13107 |
13107-1237 |
SHAFT,CLUTCH CAM DAMPER Price: $95.85 |
| 13116 |
13116-1102 |
ROD-PUSH,CLUTCH Price: $36.78 |
| 13116A |
13116-1132 |
ROD-PUSH Price: $29.70 |
| 13187 |
13187-1063 |
PLATE-CLUTCH OPERATING Price: $47.44 |
| 13187A |
13187-1066 |
PLATE-CLUTCH OPERATING Price: $93.28 |
| 13231 |
13231-1073 |
RELEASE-ASSY-CLUTCH Price: $121.08 |
| 13256 |
13256-1052 |
PISTON Price: $59.07 |
| 43056 |
43056-1056 |
BREATHER-BRAKE This part replaces 43056-1055. Price: $14.30 |
| 43057 |
43057-1001 |
CAP-BREATHER Price: $4.91 |
| 92002 |
92002-1612 |
BOLT,6X25 Price: $5.05 |
| 92015 |
92015-1461 |
NUT,20MM Price: $24.15 |
| 92022 |
92022-1463 |
WASHER,15.1X29X1.0 Price: $5.00 |
| 92022A |
92022-1857 |
WASHER,25.3X56X2.0 Price: $14.23 |
| 92026 |
92026-1043 |
SPACER,59X70X3.5 Price: $27.73 |
| 92026A |
92026-1263 |
SPACER,CLUTCH RELEASE Price: $16.69 |
| 92033 |
92033-1238 |
RING-SNAP Price: $15.24 |
| 92033A |
92033-1239 |
RING-SNAP Price: $10.53 |
| 92046 |
92046-1052 |
BEARING-NEEDLE,AXK1102 Price: $14.47 |
| 92046A |
92046-1175 |
BEARING-NEEDLE Price: $38.70 |
| 92049 |
92049-1165 |
SEAL-OIL,PISTON Price: $19.64 |
| 92081 |
92081-1644 |
SPRING,CLUTCH RELEASE Price: $8.51 |
| 92143 |
92143-1076 |
COLLAR,INPUT SHAFT Price: $50.75 |
| 92144 |
92144-1188 |
SPRING,LIMITER Price: $12.96 |
| 92144A |
92144-1934 |
SPRING,CLUTCH Price: $35.90 |
