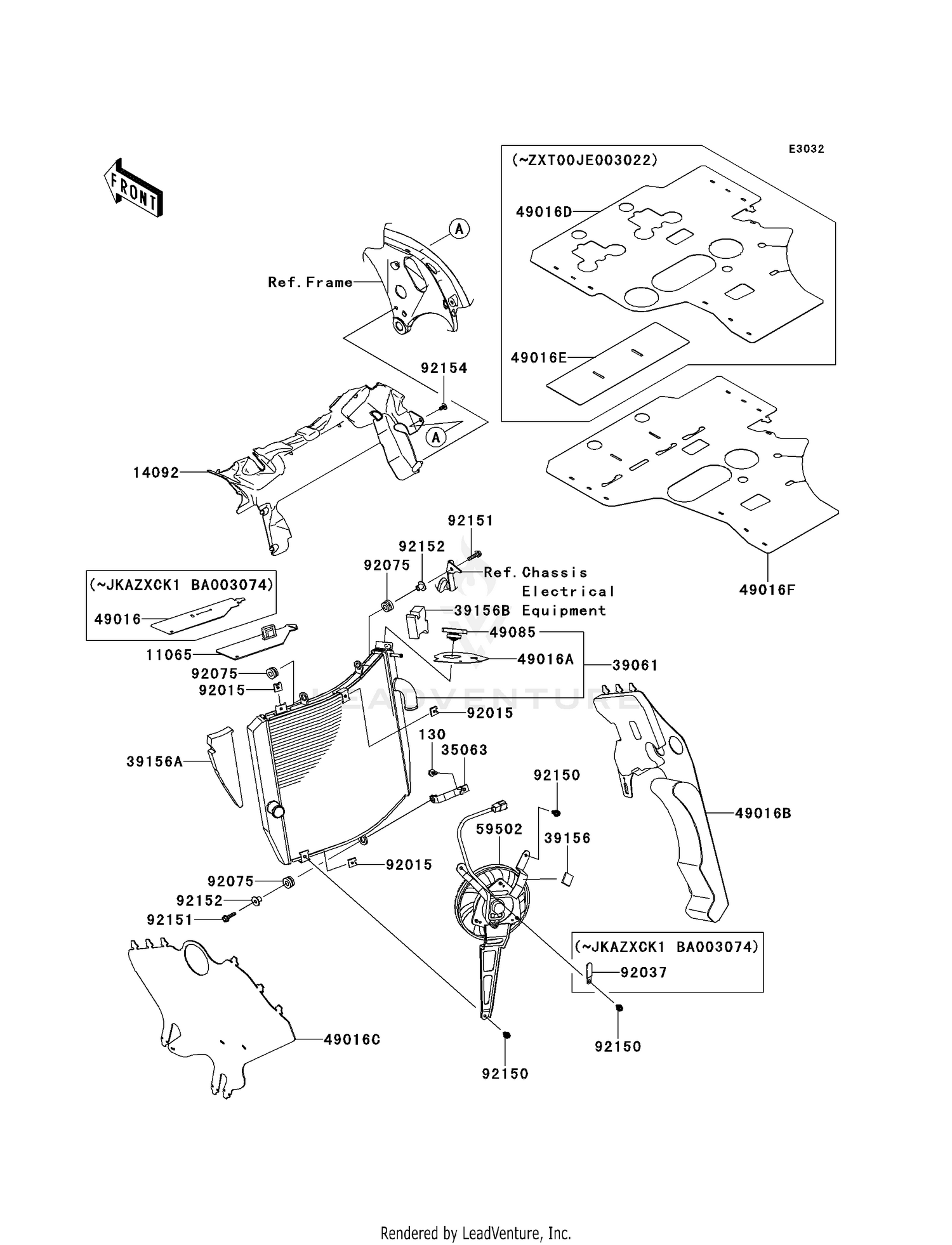

RADIATOR
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BA0614 | BOLT-FLANGED,6X14 Price: $1.20 |
| 14092 | 14093-0427 | COVER This part replaces 14092-0945. Price: $58.78 |
| 35063 | 35063-0701 | STAY Price: $14.56 |
| 39061 | 39061-0566 | RADIATOR-ASSY Price: $863.51 |
| 39156 | 39156-0285 | PAD Price: $1.33 |
| 39156A | 39156-0669 | PAD Price: $20.44 |
| 39156B | 39156-0671 | PAD Price: $9.34 |
| 49016A | 49016-0085 | COVER-SEAL Price: $3.95 |
| 49016B | 49016-0567 | COVER-SEAL,ENGINE RH Price: $87.41 |
| 49016C | 49016-0569 | COVER-SEAL,ENGINE LH Price: $98.53 |
| 49085 | 49085-1078 | CAP-ASSY-PRESSURE Price: $52.03 |
| 59502 | 59502-0574 | FAN-ASSY This part replaces 59502-0049. Price: $464.75 |
| 92015 | 92015-1487 | NUT Price: $4.80 |
| 92075 | 92075-1123 | DAMPER,RUBBER Price: $5.00 |
| 92150 | 92150-1186 | BOLT,6X12 Price: $3.37 |
| 92151 | 92151-1225 | BOLT,FLANGED,6X25 Price: $2.46 |
| 92152 | 92152-1074 | COLLAR Price: $6.22 |
