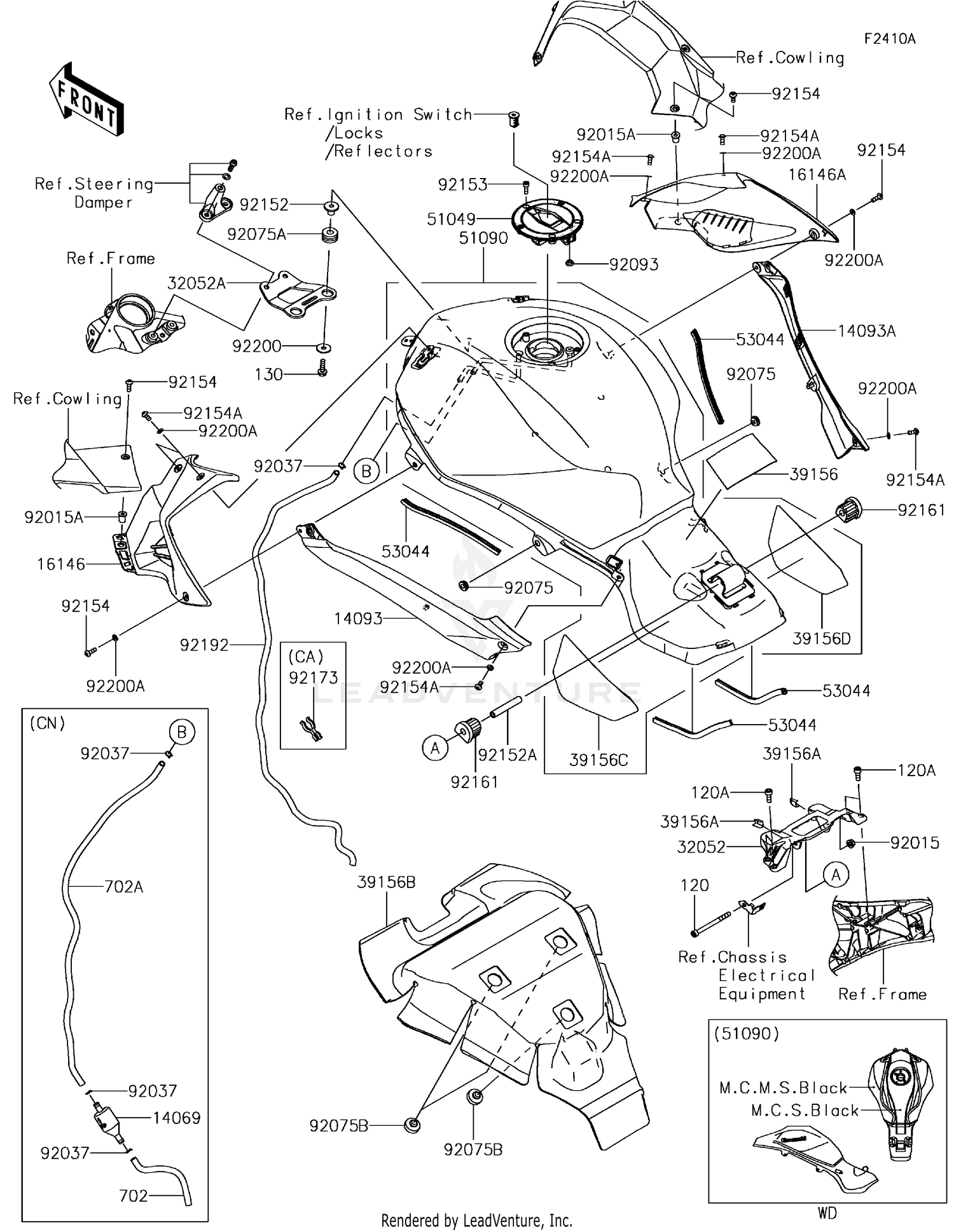

| Ref | Part Number | Description |
|---|
| 120 |
120CA0675 |
BOLT-SOCKET,6X75 Price: $3.29 |
| 120A |
120CB0616 |
BOLT-SOCKET,6X16 Price: $1.27 |
| 14093 |
14093-0180 |
COVER,KNEE GRIP,LH Price: $54.07 |
| 14093A |
14093-0181 |
COVER,KNEE GRIP,RH Price: $54.07 |
| 16146 |
16146-0780-53X |
COVER-ASSY,TANK,LH,M.C.S.BLACK Price: $502.39 |
| 16146A |
16146-0781-53X |
COVER-ASSY,TANK,RH,M.C.S.BLACK Price: $502.39 |
| 32052 |
32052-0763 |
BRACKET-TANK,RR Price: $65.23 |
| 32052A |
32052-0764 |
BRACKET-TANK,FR Price: $25.04 |
| 39156 |
39156-1778 |
PAD,RR FRM Price: $5.08 |
| 39156A |
39156-1784 |
PAD,15X20X0.2 Price: $1.02 |
| 39156B |
39156-2940 |
PAD,FUEL TANK This part replaces 39156-1848. Price: $111.14 |
| 39156C |
39156-1942 |
PAD,FUEL TANK,LH Price: $21.29 |
| 39156D |
39156-1943 |
PAD,FUEL TANK,RH Price: $21.29 |
| 51049 |
51049-0758 |
CAP-TANK,FUEL This part replaces 51049-0721. Price: $140.61 |
| 51090 |
51090-5222-62E |
TANK-COMP-FUEL,M.C.S.BLACK+BLK Price: $4,208.49 |
| 53044 |
53044-0582 |
TRIM,FUEL TANK Price: $3.75 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92015A |
92015-1757 |
NUT,WELL,5MM Price: $7.29 |
| 92075 |
92075-1011 |
DAMPER,6X16X7 Price: $7.33 |
| 92075A |
92075-1690 |
DAMPER,10X24X12 Price: $5.00 |
| 92075B |
92075-281 |
DAMPER,9X24X14 Price: $6.22 |
| 92093 |
92093-1030 |
SEAL,FUEL TANK CAP Price: $7.77 |
| 92152 |
92152-0091 |
COLLAR,6.3X10X14.5 Price: $11.71 |
| 92152A |
92152-1964 |
COLLAR,6X10X60.2 Price: $18.44 |
| 92153 |
92153-1616 |
BOLT,SOCKET,5X16 Price: $1.34 |
| 92154 |
92154-1560 |
BOLT,SOCKET,5X16 Price: $2.49 |
| 92154A |
92154-1561 |
BOLT,SOCKET,5X12 Price: $2.49 |
| 92161 |
92161-1737 |
DAMPER,FUEL TANK Price: $5.69 |
| 92192 |
92192-1669 |
TUBE,DRAIN,6X9X808 Price: $10.62 |
| 92200 |
92200-1087 |
WASHER,6.5X22X1.6 Price: $3.94 |
| 92200A |
92200-1820 |
WASHER,5.2X10X1.0 Price: $0.63 |
