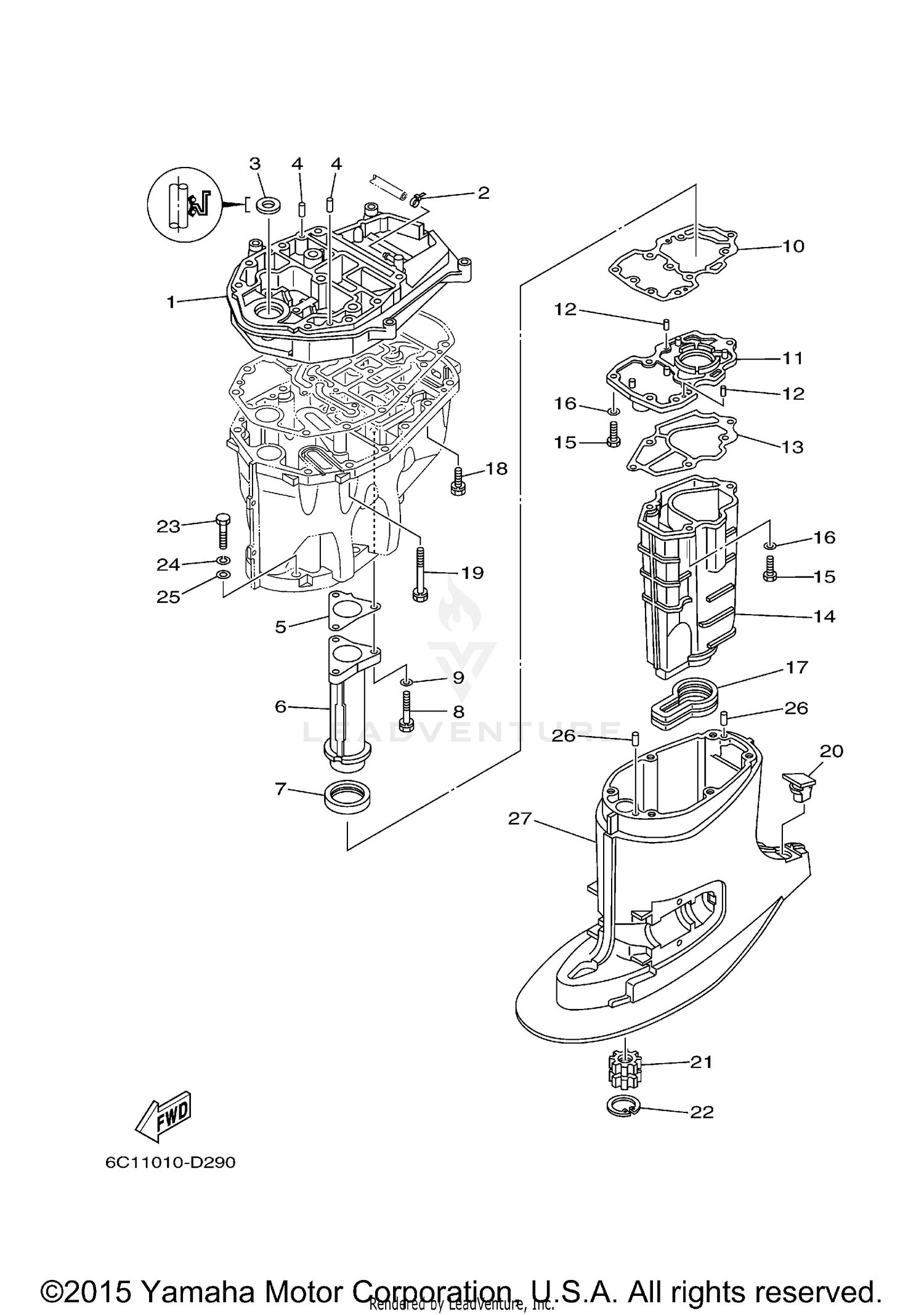

| Ref | Part Number | Description |
|---|
| 1 |
6C5-41137-03-00 |
GUIDE, EXHAUST This part replaces 6C5-41137-00-8D. Price: $333.05 |
| 2 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 3 |
93103-18011-00 |
OIL SEAL Price: $37.75 |
| 4 |
93608-12M05-00 |
PIN, DOWEL Price: $10.40 |
| 5 |
6C5-41133-00-00 |
GASKET, EXHAUST MANIFOLD 1 Price: $4.50 |
| 6 |
6C5-41131-00-CA |
MANIFOLD, EXT. 1 This part replaces 6C5-41131-00-5B. Price: $317.05 |
| 7 |
6C5-46132-00-00 |
GASKET 1 Price: $33.70 |
| 8 |
90119-06120-00 |
BOLT, WITH WASHER Price: $4.65 |
| 9 |
90201-06015-00 |
WASHER, PLATE Price: $2.55 |
| 10 |
6C5-41134-00-00 |
GASKET, EXHAUST MANIFOLD Price: $20.55 |
| 11 |
6C5-45181-00-CA |
PLATE This part replaces 6C5-45181-00-5B. Price: $91.90 |
| 12 |
93604-10M03-00 |
PIN, DOWEL Price: $5.20 |
| 13 |
6C5-41135-00-00 |
GASKET, EXHAUST MANIFOLD Price: $13.75 |
| 14 |
6C5-14711-00-CA |
MUFFLER 1 This part replaces 6C5-14711-00-5B. Price: $248.25 |
| 15 |
90101-06M27-00 |
BOLT This part replaces 97075-06025-00. Price: $3.35 |
| 16 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 17 |
6C5-45123-00-00 |
GASKET, MUFFLER Price: $16.60 |
| 18 |
97080-08030-00 |
BOLT This part replaces 90119-08M79-00. Price: $4.60 |
| 19 |
90119-08M82-00 |
BOLT, WITH WASHER Price: $5.99 |
| 20 |
6C5-45155-02-00 |
CAP This part replaces 6C5-45155-00-00. Price: $10.95 |
| 21 |
69W-45318-00-00 |
BUSHING, DRIVE SHAFT Price: $64.65 |
| 22 |
93420-36M01-00 |
CIRCLIP Price: $11.10 |
| 23 |
97075-10045-00 |
BOLT Price: $27.05 |
| 24 |
92990-10100-00 |
WASHER, SPRING This part replaces 92995-10100-00. Price: $3.25 |
| 25 |
92990-10600-00 |
WASHER, PLATE This part replaces 92995-10600-00. Price: $3.00 |
| 26 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
