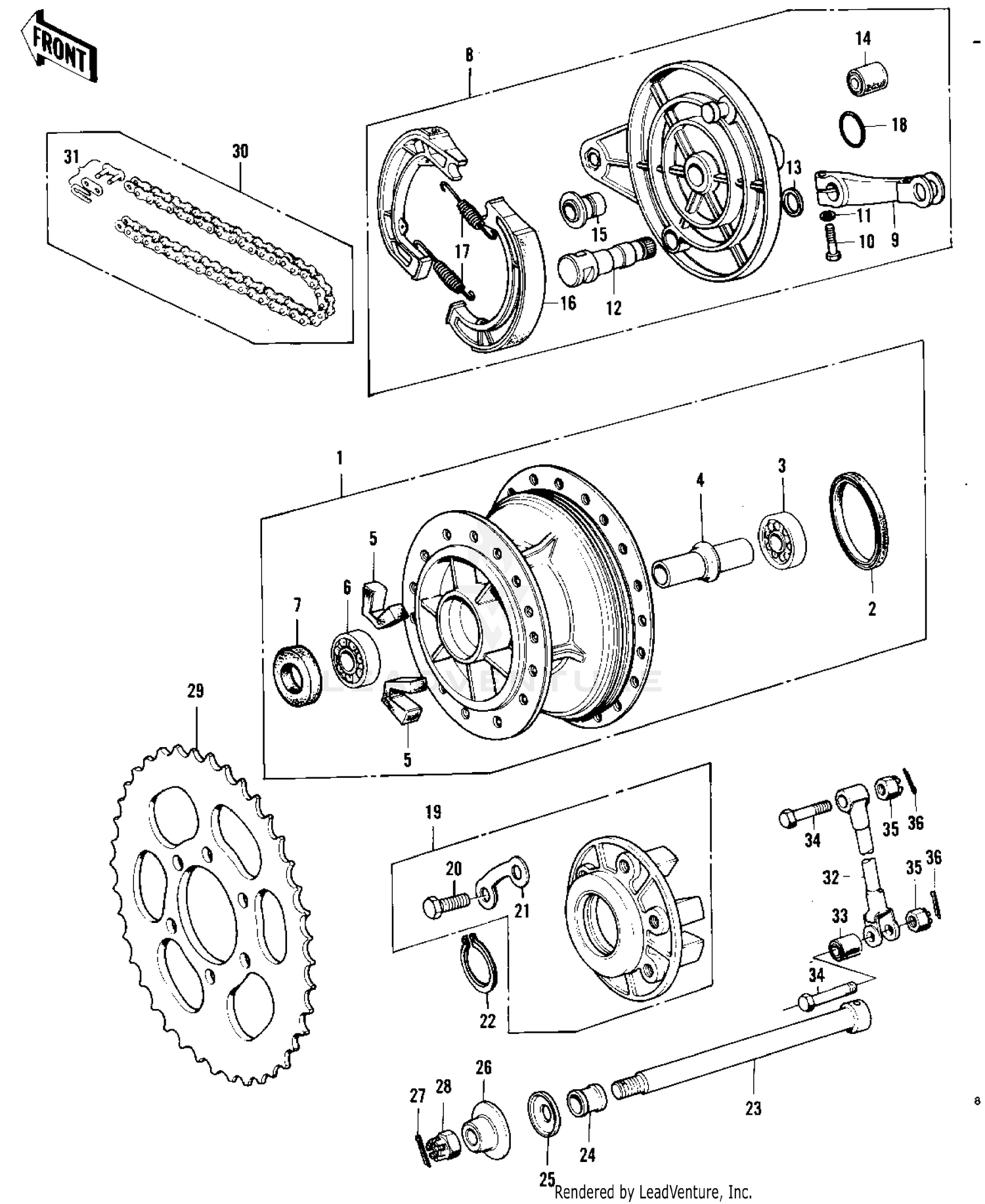

| Ref | Part Number | Description |
|---|
| 2 |
657G506506 |
OIL SEAL,#50656 Price: $9.07 |
| 3 |
601B6203Z |
BALL BEARING,#6203ZC3 Price: $27.81 |
| 4 |
42010-025 |
SPACER,RR BRAKE DRUM Price: $8.25 |
| 5 |
42014-020 |
DAMPER-REAR HUB SHOCK Price: $15.96 |
| 6 |
601B6203 |
BEARING BALL #6203 Price: $14.12 |
| 7 |
92052-003 |
OIL SEAL-COUPLING Price: $13.38 |
| 9 |
42029-018 |
LEVER-BRAKE CAM Price: $37.26 |
| 10 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 11 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 12 |
42026-022 |
CAMSHAFT,REAR BRAKE Price: $16.44 |
| 13 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 14 |
92092-008 |
BUSH-RR BRK PEDAL RUB Price: $5.53 |
| 15 |
42032-032 |
COLLAR-REAR HUB Price: $9.41 |
| 16 |
41048-1107 |
SHOE-BRAKE This part replaces 42019-011. Price: $37.39 |
| 17 |
42020-004 |
SPRING-BRAKE SHOE Price: $8.51 |
| 18 |
670B3034 |
O RING,34MM Price: $2.05 |
| 20 |
92001-109 |
BOLT-REAR SPROCKET Price: $4.03 |
| 21 |
92088-007 |
WASHER LOCK Price: $13.51 |
| 22 |
480J5200 |
CIRCLIP,52MM Price: $5.16 |
| 23 |
42031-031 |
AXLE-REAR Price: $45.99 |
| 24 |
42032-035 |
COLLAR-REAR AXLE,R.H Price: $9.93 |
| 25 |
41042-010 |
DUST-SHIELD-CAM SHAFT Price: $4.29 |
| 26 |
42032-034 |
COLLAR-REAR AXLE,L.H Price: $7.89 |
| 27 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 28 |
92015-1951 |
NUT,CASTLE,16MM This part replaces 92015-055. Price: $11.50 |
| 32 |
43007-030 |
TORQUE LINK-REAR BRK Price: $15.73 |
| 33 |
92092-008 |
BUSH-RR BRK PEDAL RUB Price: $5.53 |
| 34 |
92003-085 |
BOLT-HEX HEAD,10X42 Price: $3.52 |
| 35 |
321AA1000 |
NUT-CASTLE,10MM This part replaces 321B1000. Price: $4.99 |
