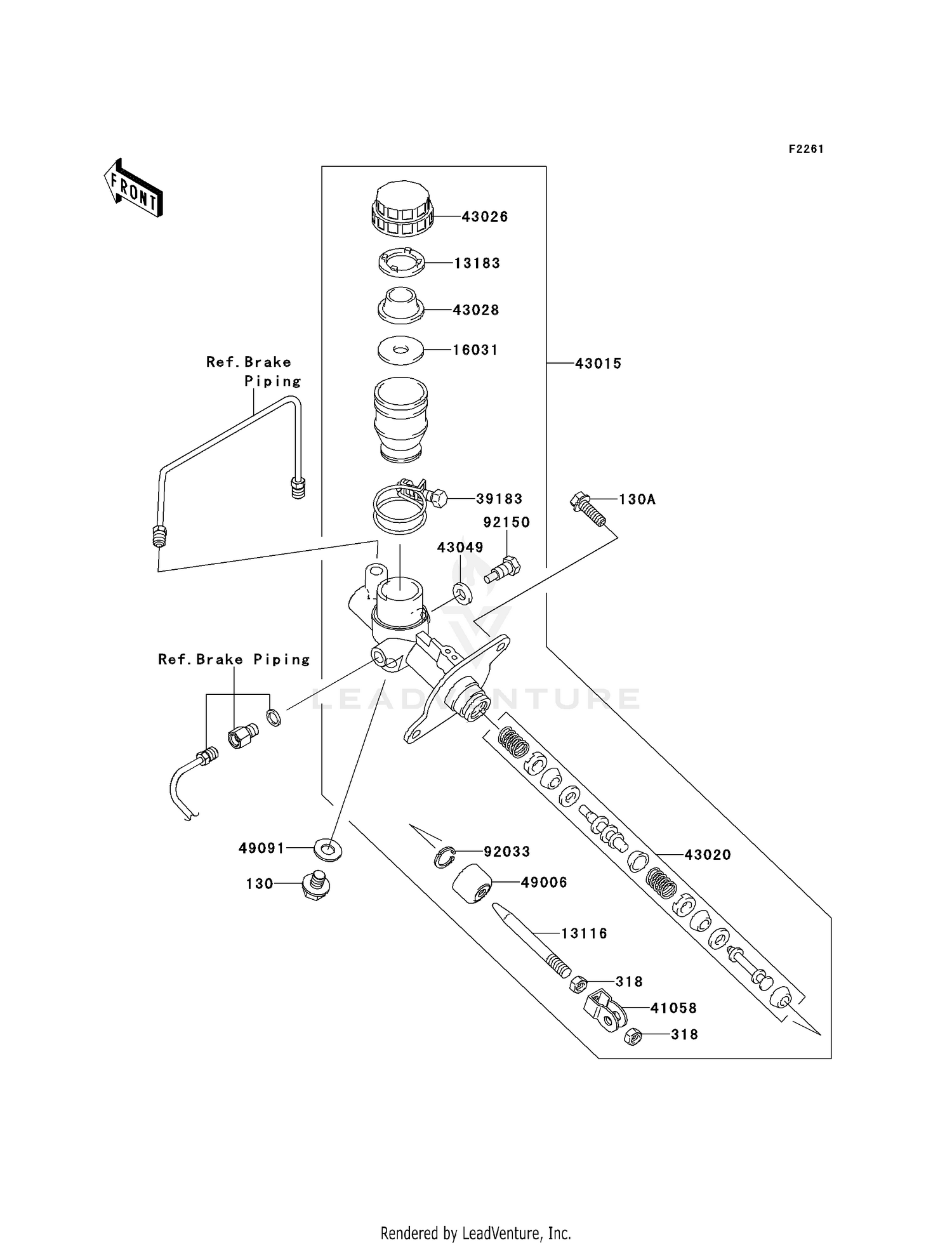

MASTER CYLINDER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130AA1012 | BOLT-FLANGED,10X12 Price: $4.69 |
| 130A | 130BA0825 | BOLT-FLANGED,8X25 Price: $2.95 |
| 318 | 318BA0800 | NUT-HEX-SMALL,8MM Price: $1.34 |
| 13116 | 13116-1134 | ROD-PUSH Price: $33.65 |
| 13183 | 13183-1306 | PLATE Price: $4.39 |
| 16031 | 16031-1069 | FLOAT Price: $7.60 |
| 39183 | 39183-1055 | BAND-ASSY Price: $11.07 |
| 41058 | 41058-1057 | RODEND-BRAKE Price: $17.48 |
| 43015 | 43015-0834 | CYLINDER-ASSY-MASTER This part replaces 43015-1683. Price: $378.75 |
| 43020 | 43020-0038 | PISTON-COMP-BRAKE This part replaces 43020-1124. Price: $77.01 |
| 43026 | 43026-1067 | CAP-BRAKE Price: $26.91 |
| 43028 | 43028-1078 | DIAPHRAGM Price: $15.87 |
| 43049 | 43049-1065 | PACKING Price: $2.76 |
| 49006 | 49006-1245 | BOOT Price: $7.60 |
| 49091 | 49091-0001 | WASHER-SEAL,10.1X14.5X1.5 Price: $2.15 |
| 92033 | 92033-1255 | RING-SNAP Price: $3.54 |
