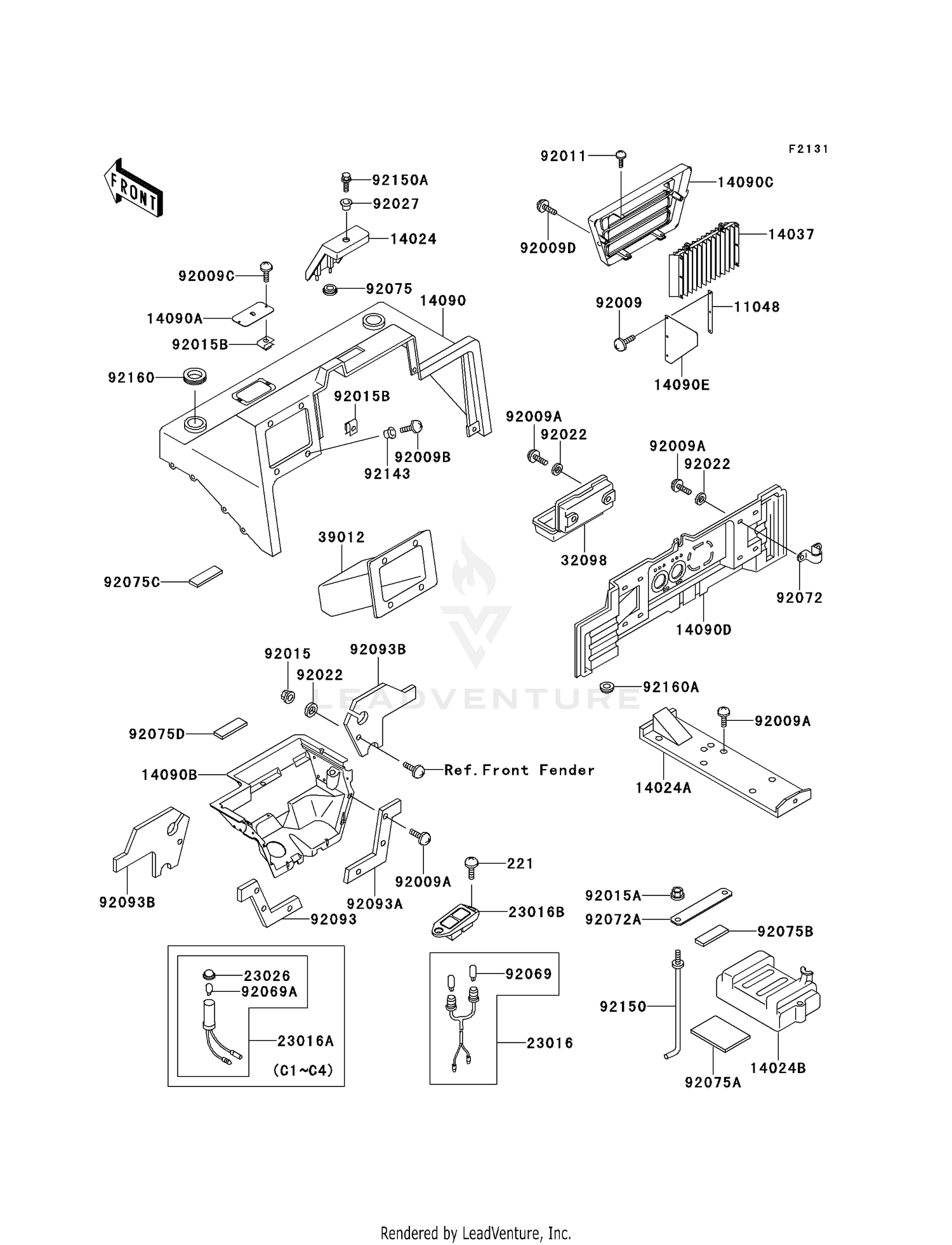

| Ref | Part Number | Description |
|---|
| 11048 |
11048-1085 |
BRACKET,SCREEN Price: $21.42 |
| 14024 |
14024-1788-6L |
COVER,MAINTENANCE,F.R Price: $74.00 |
| 14024A |
14091-0118 |
COVER,FLOOR,CNT This part replaces 14024-1791. Price: $110.20 |
| 14024B |
14024-1792 |
COVER,BATTERY Price: $50.39 |
| 14037 |
14037-1177 |
SCREEN Price: $58.17 |
| 14090 |
14090-1240-6L |
COVER,UPP,F.RED Price: $458.43 |
| 14090A |
14090-1241-B1 |
COVER,RADIATOR CAP,F. Price: $20.91 |
| 14090B |
14090-1242 |
COVER,LWR Price: $119.15 |
| 14090C |
14090-1243-6L |
COVER,FRONT GRILL,F.R Price: $143.26 |
| 14090D |
14090-1247 |
UNDER COVER,SEAT Price: $153.82 |
| 14090E |
14090-1326 |
COVER,SCREEN Price: $11.10 |
| 23016A |
23016-1128 |
LAMP-ASSY,TEMP Price: $54.60 |
| 23026 |
23026-1157 |
LENS,TEMP LAMP Price: $4.33 |
| 32098 |
32098-1052 |
CASE-TOOL Price: $33.37 |
| 39012 |
39012-1053 |
CASE-STORAGE Price: $71.71 |
| 92009 |
92009-1111 |
SCREW,6X18,WHITE Price: $4.78 |
| 92009A |
92009-1166 |
SCREW,TAPPING,6X16 Price: $5.52 |
| 92009B |
92172-0002 |
SCREW,6X18 This part replaces 92009-1181. Price: $2.80 |
| 92009C |
92009-1662 |
SCREW,6X14 This part replaces 92009-1288. Price: $3.92 |
| 92009D |
92009-1735 |
SCREW,6X55 This part replaces 92009-1353. Price: $5.84 |
| 92011 |
92011-562 |
SCREW 0.16X0.5 Price: $1.65 |
| 92015 |
92015-1233 |
NUT,FLANGED,6MM,BLACK This part replaces 92015-1386. Price: $5.52 |
| 92015A |
92015-1406 |
NUT,FLANGED,8MM Price: $4.45 |
| 92015B |
92015-1678 |
NUT,CLAMP,6MM Price: $5.52 |
| 92022 |
92022-1346 |
WASHER,6.5X20X1.6,BLACK Price: $0.49 |
| 92027 |
92027-1920 |
COLLAR,L=14.1 Price: $6.57 |
| 92069A |
92069-1059 |
BULB,12V 1.7W,T10 Price: $4.96 |
| 92072 |
92072-1252 |
BAND Price: $11.91 |
| 92072A |
92072-1255 |
BAND,BATTERY Price: $4.57 |
| 92075 |
92075-1067 |
DAMPER Price: $4.69 |
| 92075A |
92075-1076 |
DAMPER Price: $8.86 |
| 92075B |
92075-1214 |
DAMPER Price: $4.39 |
| 92075C |
92075-1658 |
DAMPER,AIR FILTER COV Price: $4.86 |
| 92075D |
92160-1094 |
DAMPER,BATTERY This part replaces 92075-1903. Price: $5.59 |
| 92093 |
92093-1293 |
SEAL,FRONT FENDER,LH Price: $9.64 |
| 92093A |
92093-1294 |
SEAL,FRONT FENDER,RH Price: $10.00 |
| 92093B |
92093-1295 |
SEAL,LOWER COVER Price: $22.57 |
| 92143 |
92143-1087 |
COLLAR Price: $4.31 |
| 92150 |
92150-1293 |
BOLT,BATTERY Price: $10.65 |
| 92150A |
92150-1360 |
BOLT,6X25 Price: $4.33 |
| 92160 |
92160-1142 |
DAMPER Price: $9.30 |
