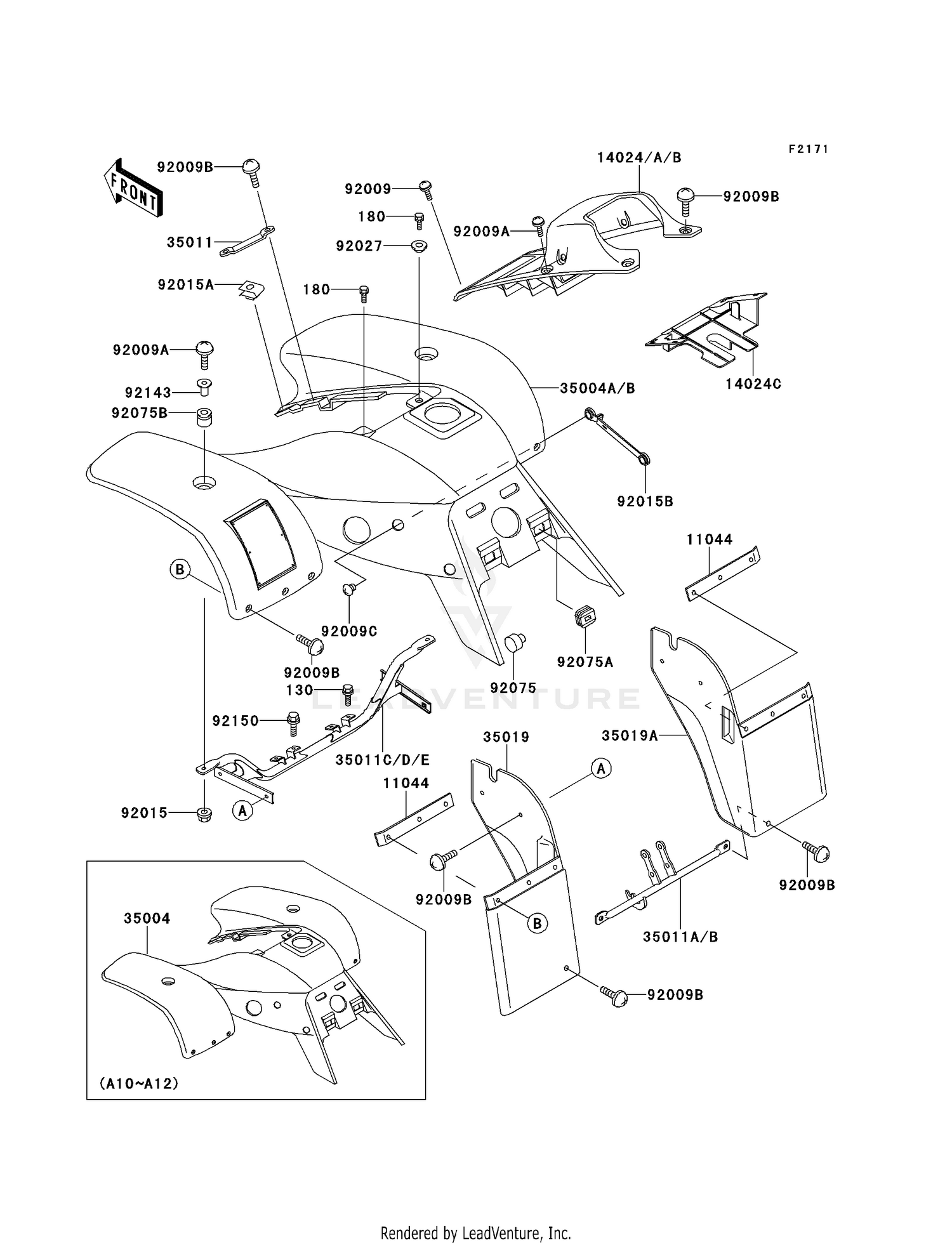

| Ref | Part Number | Description |
|---|
| 130 |
130CA0612 |
BOLT-FLANGED,6X12 This part replaces 130P0612. Price: $3.96 |
| 180 |
180AA0635 |
BOLT-UPSET-WS This part replaces 180D0635. Price: $0.92 |
| 11044 |
11044-1934 |
BRACKET,FLAP Price: $11.40 |
| 14024B |
14024-1268-6L |
COVER, FRONT Price: $31.46 |
| 14024C |
14024-1297 |
COVER,FRONT Price: $11.30 |
| 35004A |
35004-1379-6F |
FENDER-FRONT,P.WHITE Price: $192.09 |
| 35011 |
35011-1324 |
STAY Price: $12.14 |
| 35011B |
35011-1637-CD |
STAY,FLAP,F.RED Price: $31.89 |
| 35011D |
35063-1169 |
STAY,FRONT FENDER This part replaces 35011-1642-CD. Price: $43.93 |
| 35019 |
35019-1172 |
FLAP,LH Price: $26.21 |
| 35019A |
35019-1173 |
FLAP,RH Price: $26.21 |
| 92009 |
92172-0002 |
SCREW,6X18 This part replaces 92009-1181. Price: $2.80 |
| 92009A |
92009-1256 |
SCREW,6X22,BLACK Price: $2.78 |
| 92009B |
92009-1662 |
SCREW,6X14 This part replaces 92009-1288. Price: $3.92 |
| 92009C |
92009-1508 |
SCREW,16MM Price: $6.45 |
| 92015 |
92015-1233 |
NUT,FLANGED,6MM,BLACK Price: $5.52 |
| 92015A |
92015-1678 |
NUT,CLAMP,6MM Price: $5.52 |
| 92015B |
92015-1701 |
NUT Price: $12.48 |
| 92027 |
92027-1933 |
COLLAR,L=5.6 Price: $5.78 |
| 92075 |
92075-023 |
DAMPER RUBB DUAL SEAT Price: $4.92 |
| 92075A |
92075-1834 |
DAMPER Price: $9.18 |
| 92075B |
92075-222 |
DAMPER,CASE Price: $7.34 |
| 92143 |
92143-1016 |
COLLAR,L=9.6 Price: $6.22 |
