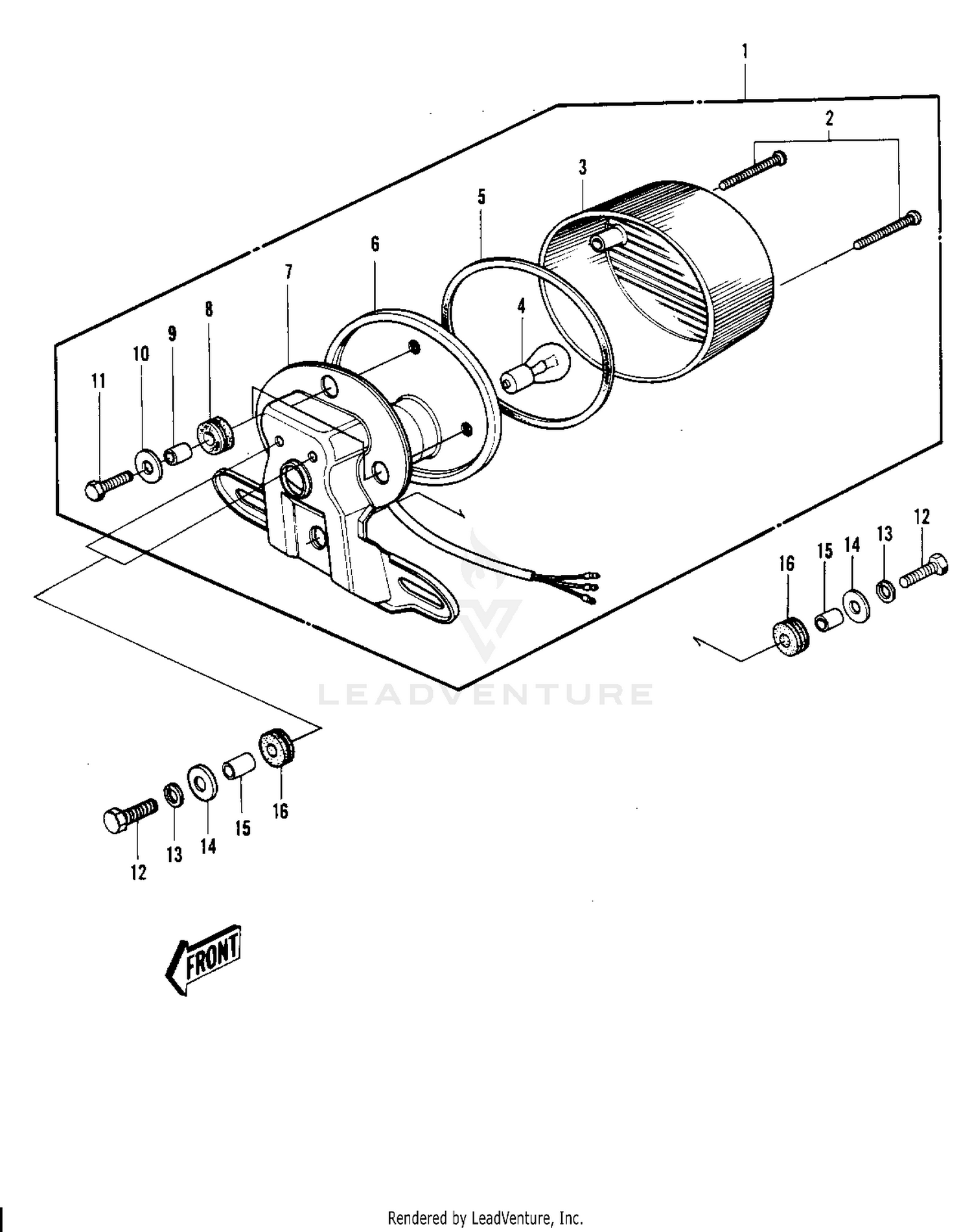

| Ref | Part Number | Description |
|---|
| 1 |
23024-026-21 |
LAMP ASSY-TAIL,BLACK Price: $143.37 |
| 2 |
220E0435A |
SCREW-PAN HEAD,4X35 Price: $8.56 |
| 3 |
23026-023 |
LENS-TAIL LAMP Price: $131.51 |
| 4 |
92069-060 |
BULB,12V 32/3CP(23/8W) Price: $9.70 |
| 5 |
23028-018 |
GASKET-TAIL LAMP LENS Price: $12.32 |
| 6 |
23027-030 |
CASE,TAIL LAMP Price: $142.14 |
| 7 |
23036-022-21 |
BKT-LICENSE PLT,BLACK Price: $105.30 |
| 8 |
92075-076 |
DAMPER RUBBER Price: $4.78 |
| 9 |
92027-129 |
COLLAR,6.8X10X8.5 Price: $5.00 |
| 10 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 11 |
112BA0622 |
BOLT-UPSET This part replaces 112B0622. Price: $3.74 |
| 12 |
112BA0622 |
BOLT-UPSET This part replaces 112B0622. Price: $3.74 |
| 13 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 14 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 15 |
92027-120 |
COLLAR,6.8X10X10.5 Price: $5.00 |
