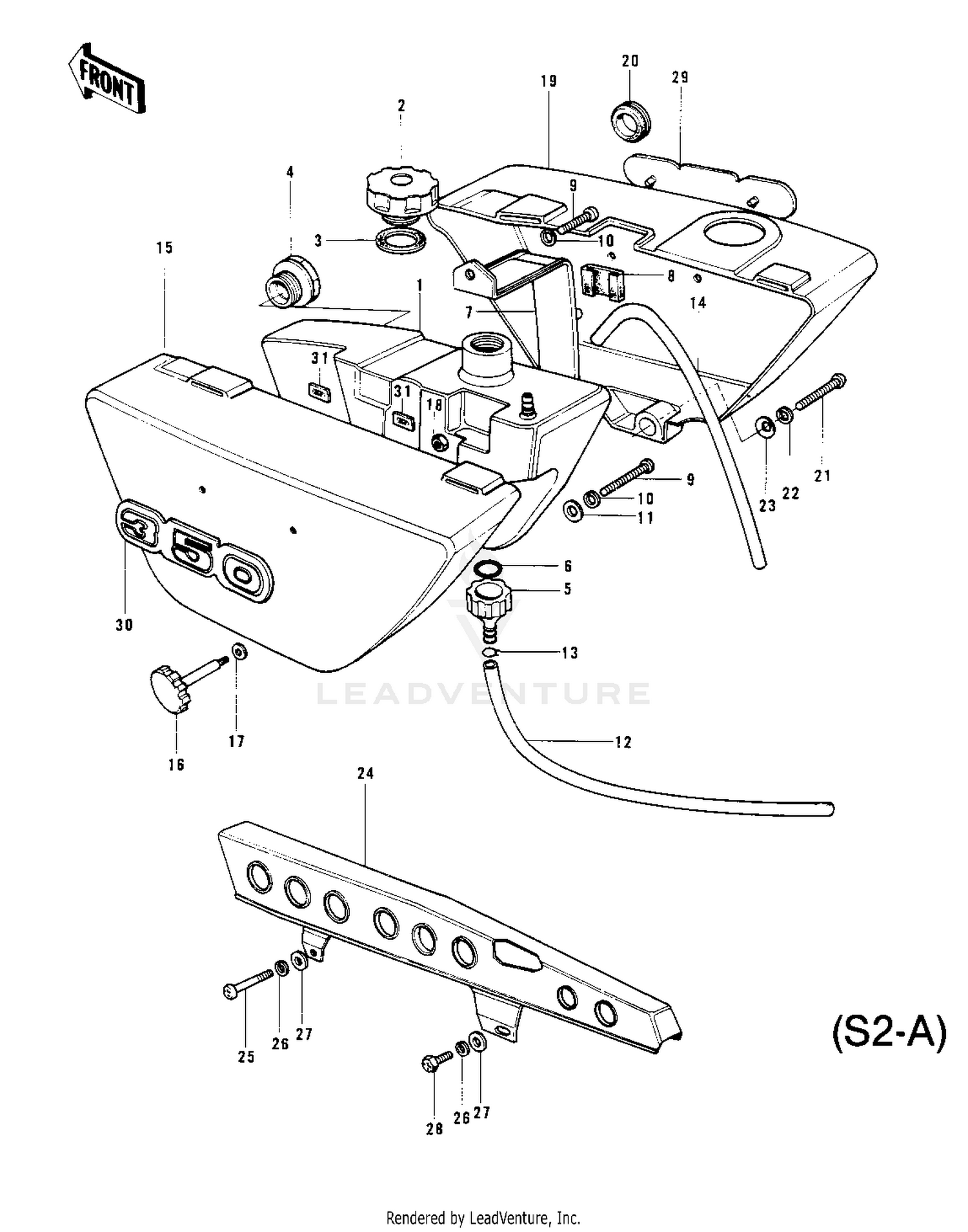

| Ref | Part Number | Description |
|---|
| 1 |
52001-033 |
TANK-OIL Price: $50.76 |
| 2 |
52003-020 |
CAP-OIL TANK Price: $11.75 |
| 3 |
92065-086 |
GASKET-OIL TANK Price: $5.17 |
| 4 |
52015-005 |
GAUGE-OIL LEVEL Price: $8.58 |
| 5 |
52020-001 |
FILTER-OIL Price: $30.90 |
| 6 |
670B2015 |
O RING,15MM Price: $1.42 |
| 7 |
52018-002 |
BAND-OIL TANK Price: $7.66 |
| 8 |
31082-010 |
DAMPER RUBBER-OIL TNK Price: $9.50 |
| 9 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 10 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 11 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 12 |
92059-072 |
PIPE-OIL Price: $38.33 |
| 13 |
92037-010 |
CLAMP,TUBE Price: $3.92 |
| 14 |
700Q051000 |
TUBE-PVC This part replaces 700Q05600. Price: $1.24 |
| 15 |
36001-039-91 |
COVER-L.H SIDE,ORANGE Price: $59.52 |
| 15 |
36001-039-93 |
COVER-L.H SIDE,C.BLUE Price: $75.42 |
| 16 |
92077-020 |
KNOB Price: $3.85 |
| 17 |
92075-041 |
DAMPER RUBB SIDE COV Price: $0.56 |
| 18 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 19 |
36007-031-91 |
COVER,RH SIDE,ORANGE Price: $59.67 |
| 19 |
36007-031-93 |
COVER,RH SIDE,C.BLUE Price: $88.91 |
| 20 |
92071-065 |
GROMMET-R.H SIDE COV Price: $8.33 |
| 21 |
220E0635 |
SCREW-PAN HEAD, 6X35 Price: $3.64 |
| 22 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 23 |
411S0600 |
WASHER-PLAIN,6MM This part replaces 411D0600. Price: $2.06 |
| 24 |
36014-040-21 |
CASE-CHAIN,FR BLACK Price: $40.97 |
| 25 |
220E0655 |
SCREW PAN HEAD 6X55 Price: $3.72 |
| 26 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 27 |
92022-193 |
WASHER,6.5X20X1.6,WHITE Price: $5.33 |
| 28 |
92001-121 |
BOLT,HEX HEAD,6X14 Price: $4.39 |
| 29 |
56018-135 |
EMBLEM-R.H SIDE COVER Price: $12.55 |
| 30 |
56018-136 |
EMBLEM-L.H SIDE COVER Price: $24.94 |
