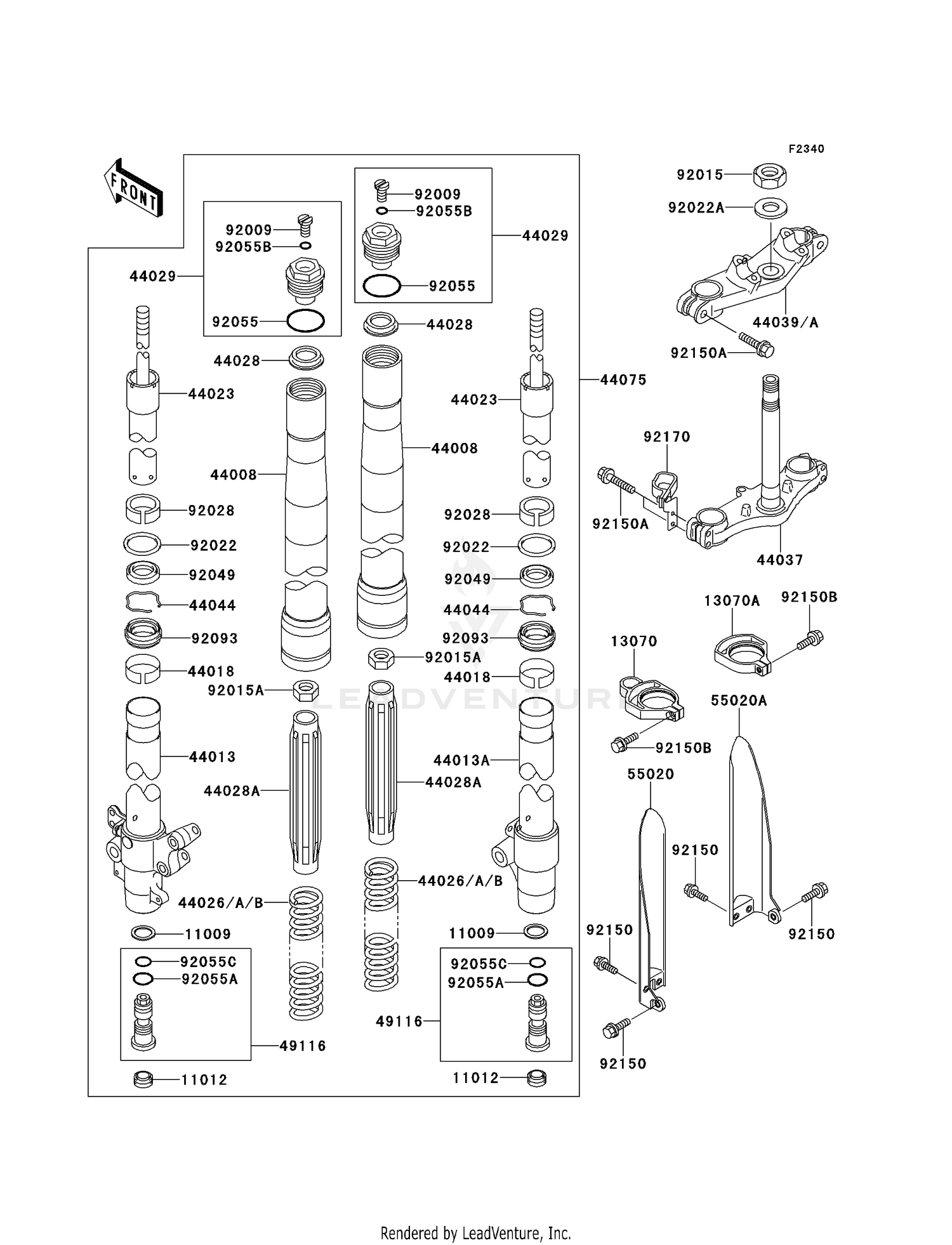

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11012 |
11012-1692 |
CAP Price: $6.16 |
| 13070 |
13070-0049-RZ |
GUIDE,PROTECTOR,LH,WH This part replaces 13070-1310-RZ. Price: $20.80 |
| 13070A |
13070-0050-RZ |
GUIDE,PROTECTOR,RH,WH This part replaces 13070-1311-RZ. Price: $20.80 |
| 44008 |
44008-1041-14 |
PIPE-FORK OUTER,A.N.G Price: $421.22 |
| 44013 |
44013-1441 |
PIPE-FORK INNER,LH Price: $278.84 |
| 44013A |
44013-1442 |
PIPE-FORK INNER,RH Price: $305.25 |
| 44018 |
44018-1058 |
PISTON-FORK Price: $21.36 |
| 44023 |
44023-1119 |
CYLINDER-SET-FORK Price: $369.74 |
| 44026A |
44026-1634 |
SPRING-FRONT FORK,K=2.84N/MM Price: $60.49 |
| 44028 |
44028-1085 |
GUIDE-FORK SPRING Price: $37.72 |
| 44028A |
44028-1090 |
GUIDE-FORK SPRING Price: $40.90 |
| 44029 |
44029-1152 |
SEAT-FORK SPRING Price: $67.65 |
| 44037 |
44037-1360 |
HOLDER-FORK UNDER Price: $324.88 |
| 44039 |
44039-1294 |
HOLDER-FORK UPPER This part replaces 44039-1274. Price: $135.85 |
| 44044 |
92033-1100 |
RING-SNAP,FORK OIL This part replaces 44044-015. Price: $14.94 |
| 44075 |
44075-1057-14 |
DAMPER-SET-FORK,A.N.G Price: $1,611.75 |
| 49116 |
49116-1153 |
VALVE-ASSY,FORK Price: $141.32 |
| 55020 |
55020-1611-RZ |
GUARD,FORK,LH,WHITE Price: $30.07 |
| 55020A |
55020-1612-RZ |
GUARD,FORK,RH,WHITE Price: $30.07 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92015 |
92210-1521 |
NUT,STEERING STEM,22MM This part replaces 92015-1653. Price: $16.69 |
| 92015A |
92015-1839 |
NUT Price: $19.64 |
| 92022 |
92022-1275 |
WASHER,FRONT FORK Price: $7.34 |
| 92022A |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1656 |
BUSHING Price: $16.18 |
| 92049 |
92049-1394 |
SEAL-OIL,FORK OUTER TUBE Price: $19.64 |
| 92055 |
92055-1123 |
RING-O Price: $6.22 |
| 92055A |
670B2018 |
O RING,18MM This part replaces 92055-1156. Price: $1.42 |
| 92055B |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055C |
92055-1502 |
RING-O,FORK VALVE Price: $7.45 |
| 92093 |
92093-1426 |
SEAL,FORK OUTER TUBE Price: $22.90 |
| 92150 |
92150-1340 |
BOLT,6X14 Price: $5.07 |
| 92150A |
92150-1499 |
BOLT Price: $5.50 |
| 92150B |
92150-1802 |
BOLT,5X16 Price: $5.00 |
