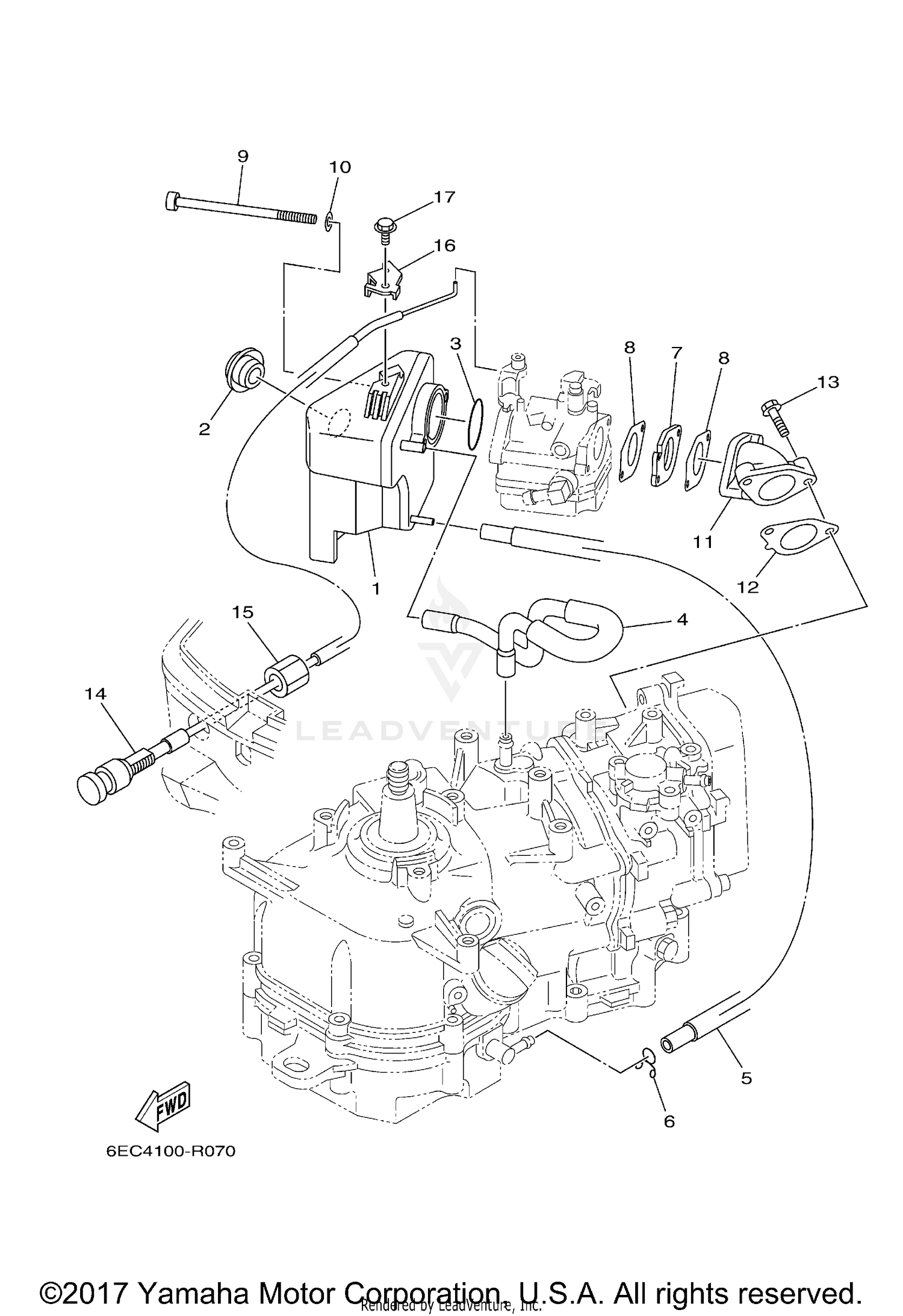

INTAKE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BX-14440-00-00 | SILENCER ASSY, INTAKE Price: $79.60 |
| 2 | 90480-18M74-00 | GROMMET Price: $5.50 |
| 3 | 93210-320A7-00 | O-RING This part replaces 93210-32817-00. Price: $4.65 |
| 4 | 6EE-F4314-00-00 | PIPE 4 Price: $24.65 |
| 5 | 6EE-E316F-00-00 | HOSE, OIL 1 Price: $34.90 |
| 6 | 90467-09M09-00 | CLIP Price: $1.15 |
| 7 | 6EE-E3647-00-00 | GASKET, MANIFOLD 3 Price: $11.35 |
| 9 | 90110-06350-00 | BOLT, HEXAGON SOCKET HEAD Price: $10.65 |
| 10 | 90201-06106-00 | WASHER, PLATE Price: $99,999.99 |
| 11 | 6EE-13641-00-00 | MANIFOLD, INTAKE 1 This part replaces 6BX-E3641-10-00. Price: $171.50 |
| 13 | 90119-06MA3-00 | BOLT, WITH WASHER Price: $3.20 |
| 14 | 6EE-26330-00-00 | STARTER CABLE ASSY This part replaces 6EE-F6330-00-00. Price: $41.60 |
| 15 | 90179-11001-00 | NUT Price: $6.70 |
| 16 | 6EE-E3151-00-00 | STAY Price: $5.95 |
