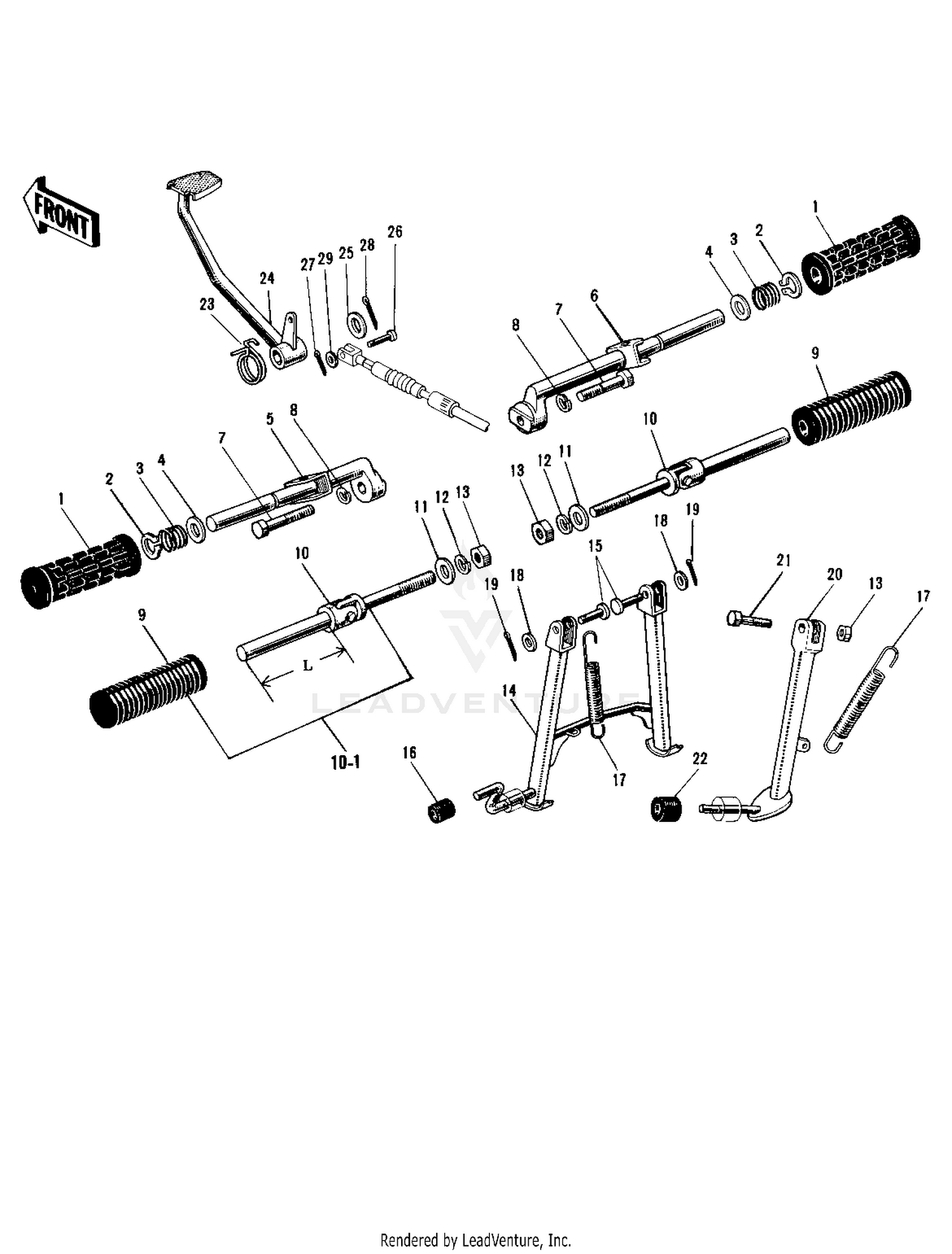

| Ref | Part Number | Description |
|---|
| 1 |
92076-015 |
RUBBER FOOTREST Price: $24.67 |
| 2 |
480J1600 |
CIRCLIP-TYPE-C,16MM Price: $4.31 |
| 3 |
34006-002 |
SPRING FOOTREST PEG Price: $5.75 |
| 4 |
92022-049 |
WASHER FOLDING PEG Price: $3.17 |
| 5 |
34003-013 |
BAR FOOTREST L.H Price: $77.95 |
| 6 |
34003-015 |
BAR FOOTREST R.H Price: $30.34 |
| 7 |
92003-165 |
BOLT,HEX HEAD,12X56 Price: $16.37 |
| 8 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 11 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 12 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 13 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 14 |
34011-034 |
STAND-MAIN Price: $59.02 |
| 15 |
92043-041 |
PIN JOINT Price: $10.10 |
| 16 |
92075-046 |
DAMPER RUBB MAIN STND Price: $3.28 |
| 17 |
34023-005 |
SPRING MAIN STAND Price: $10.92 |
| 18 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 19 |
550AA2525 |
PIN-COTTER,2.5X25 This part replaces 550D2525. Price: $1.36 |
| 22 |
92160-1655 |
DAMPER,SIDE STAND This part replaces 92075-031. Price: $10.21 |
| 23 |
43005-011 |
SPRING BRAKE PEDAL Price: $8.34 |
| 24 |
43001-027 |
PEDAL BRAKE Price: $119.01 |
| 25 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 26 |
92043-034 |
PIN R BRK CABLE JOINT Price: $9.19 |
| 27 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 28 |
550AA3025 |
PIN-COTTER,3.0X25 This part replaces 550D3025. Price: $0.62 |
