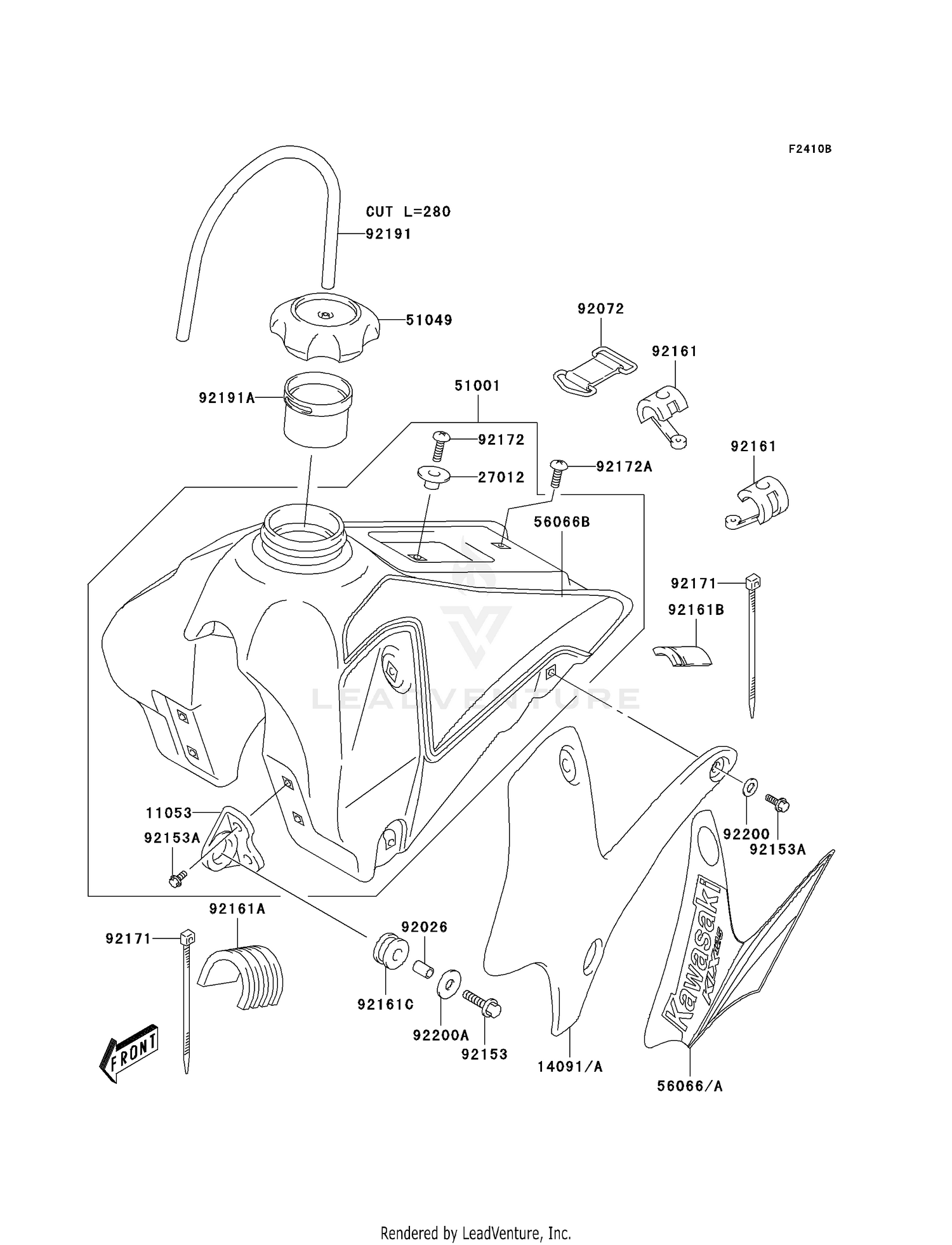

| Ref | Part Number | Description |
|---|
| 11053 |
11053-S001 |
BRACKET,FUEL TANK FRO Price: $12.89 |
| 14091 |
14091-S062-908 |
COVER,FUEL TANK,RH,L. Price: $46.09 |
| 14091A |
14091-S063-908 |
COVER,FUEL TANK,LH,L. Price: $46.09 |
| 27012 |
27012-S003 |
HOOK,SEAT FRONT Price: $9.23 |
| 51001 |
51001-S024-539 |
TANK-COMP-FUEL,BLACK Price: $388.82 |
| 51049 |
51049-S017 |
CAP-TANK This part replaces 51049-S004. Price: $43.94 |
| 56066 |
56066-S058-910 |
PATTERN,RH,BLK/GLD/GR This part replaces 56066-S048-910. Price: $97.53 |
| 56066A |
56066-S059-910 |
PATTERN,LH,BLK/GLD/GR This part replaces 56066-S049-910. Price: $111.74 |
| 56066B |
56066-S050-913 |
PATTERN,SET,TANK,BLAC Price: $150.16 |
| 92026 |
92026-S049 |
SPACER,FUEL TANK FRON Price: $2.79 |
| 92072 |
92072-S004 |
BAND,FUEL TANK REAR Price: $15.27 |
| 92153 |
92153-S579 |
BOLT This part replaces 92153-S003. Price: $2.40 |
| 92153A |
92153-S578 |
BOLT This part replaces 92153-S144. Price: $1.92 |
| 92161 |
92161-S062 |
DAMPER,FUEL TANK Price: $9.27 |
| 92161A |
92161-S063 |
DAMPER,FUEL TANK Price: $24.70 |
| 92161B |
92161-S064 |
DAMPER,FUEL TANK Price: $9.27 |
| 92161C |
92161-S065 |
DAMPER Price: $6.55 |
| 92171 |
92171-S056 |
CLAMP,FUEL TANK CUSHI Price: $4.92 |
| 92172 |
92172-S295 |
SCREW This part replaces 92172-S019. Price: $1.92 |
| 92172A |
92172-S296 |
SCREW This part replaces 92172-S055. Price: $1.92 |
| 92191 |
92191-S091 |
TUBE,FUEL TANK BREATH This part replaces 92191-S028. Price: $9.59 |
| 92191A |
92191-S029 |
TUBE,FUEL TANK FILLER Price: $8.18 |
| 92200 |
92200-S078 |
WASHER Price: $2.64 |
