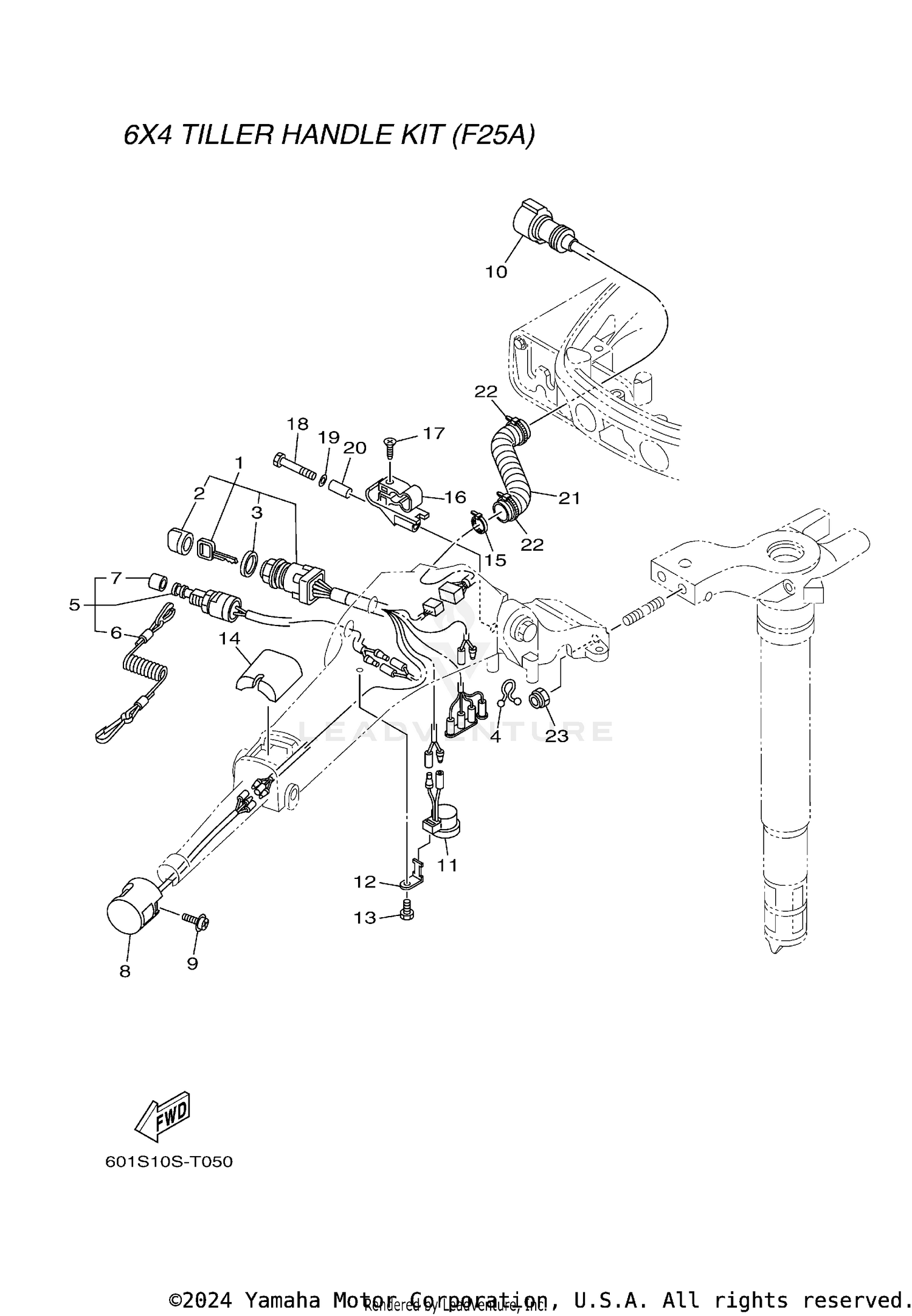

| Ref | Part Number | Description |
|---|
| 1 |
6X4-82510-02-00 |
MAIN SWITCH ASSY Price: $191.85 |
| 2 |
676-82577-01-00 |
CAP, KEY Price: $6.55 |
| 3 |
703-82532-00-00 |
CAP Price: $9.45 |
| 4 |
90465-18147-00 |
CLAMP This part replaces 90464-08M07-00. Price: $8.49 |
| 5 |
69W-82575-00-00 |
ENGINE STOP SWITCH ASSY Price: $84.00 |
| 6 |
682-82556-00-00 |
LANYARD, STOP SWITCH Price: $8.20 |
| 7 |
689-8257Y-00-00 |
CAP Price: $9.05 |
| 8 |
6X4-82563-01-00 |
TRIM & TILT SWITCH ASSY Price: $179.25 |
| 9 |
97985-06216-00 |
SCREW, WITH WASHER This part replaces 97980-06216-00. Price: $3.20 |
| 10 |
6X4-82586-11-00 |
EXT., WIRE HARNESS (L:950MM) This part replaces 6X4-82586-10-00. Price: $518.15 |
| 11 |
6X4-83383-00-00 |
BUZZER Price: $53.30 |
| 12 |
6X4-83386-00-00 |
STAY, BUZZER Price: $4.05 |
| 13 |
97D95-06014-00 |
BOLT, HEXAGON DEEP Price: $1.55 |
| 14 |
6X4-81942-01-00 |
COVER Price: $23.55 |
| 15 |
90465-13M39-00 |
CLAMP This part replaces 90465-13M36-00. Price: $5.50 |
| 16 |
62Y-82361-00-00 |
CLAMP, CORD Price: $8.70 |
| 17 |
90161-06M03-00 |
SCREW, TAPPING Price: $4.60 |
| 18 |
97D95-06035-00 |
BOLT, HEXAGON DEEP Price: $1.00 |
| 19 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 20 |
90387-06M26-00 |
COLLAR Price: $10.20 |
| 21 |
90447-22006-00 |
HOSE, WITH SPRING Price: $4.50 |
| 22 |
437-83936-11-00 |
BAND, SWITCH CORD This part replaces 90465-13M24-00. Price: $5.00 |
