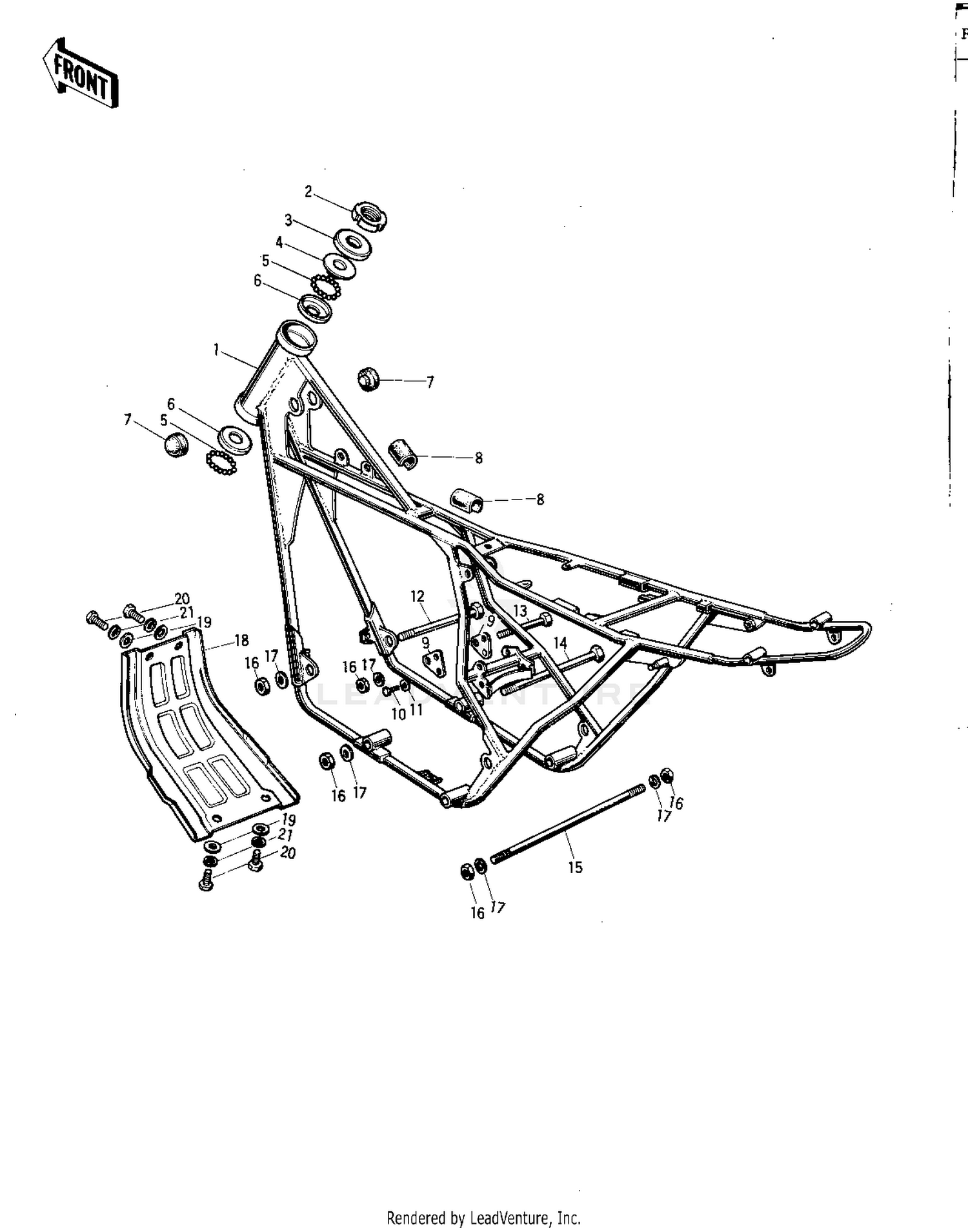

| Ref | Part Number | Description |
|---|
| 1 |
32002-040 |
FRAME Price: $393.39 |
| 2 |
92090-006 |
NUT STEERING STEM LCK Price: $15.04 |
| 3 |
46098-005 |
CAP STEERING STEM Price: $4.03 |
| 4 |
92047-003 |
CONE STERNG BERG UPP Price: $9.99 |
| 5 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 6 |
92048-005 |
RACE STEERING BEARING Price: $12.37 |
| 7 |
92075-050 |
DAMPER RUBB FUEL TANK Price: $6.61 |
| 8 |
51067-002 |
MAT FUEL TANK Price: $17.44 |
| 9 |
32030-020 |
PLATE-ENGINE MOUNT Price: $5.45 |
| 10 |
115BA0820 |
BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52 |
| 11 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 12 |
113B12163A |
BOLT-HEX HEAD,12X163 Price: $9.85 |
| 13 |
113B12151A |
BOLT-HEX HEAD,12X151 Price: $7.55 |
| 14 |
113B12254A |
BOLT HEX HEAD 12X254 Price: $13.17 |
| 15 |
92006-002 |
STUD Price: $10.24 |
| 16 |
92015-1381 |
NUT,12MM This part replaces 314B1200. Price: $2.67 |
| 17 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 18 |
55011-013 |
GUARD-ENGINE Price: $30.02 |
| 19 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 20 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
