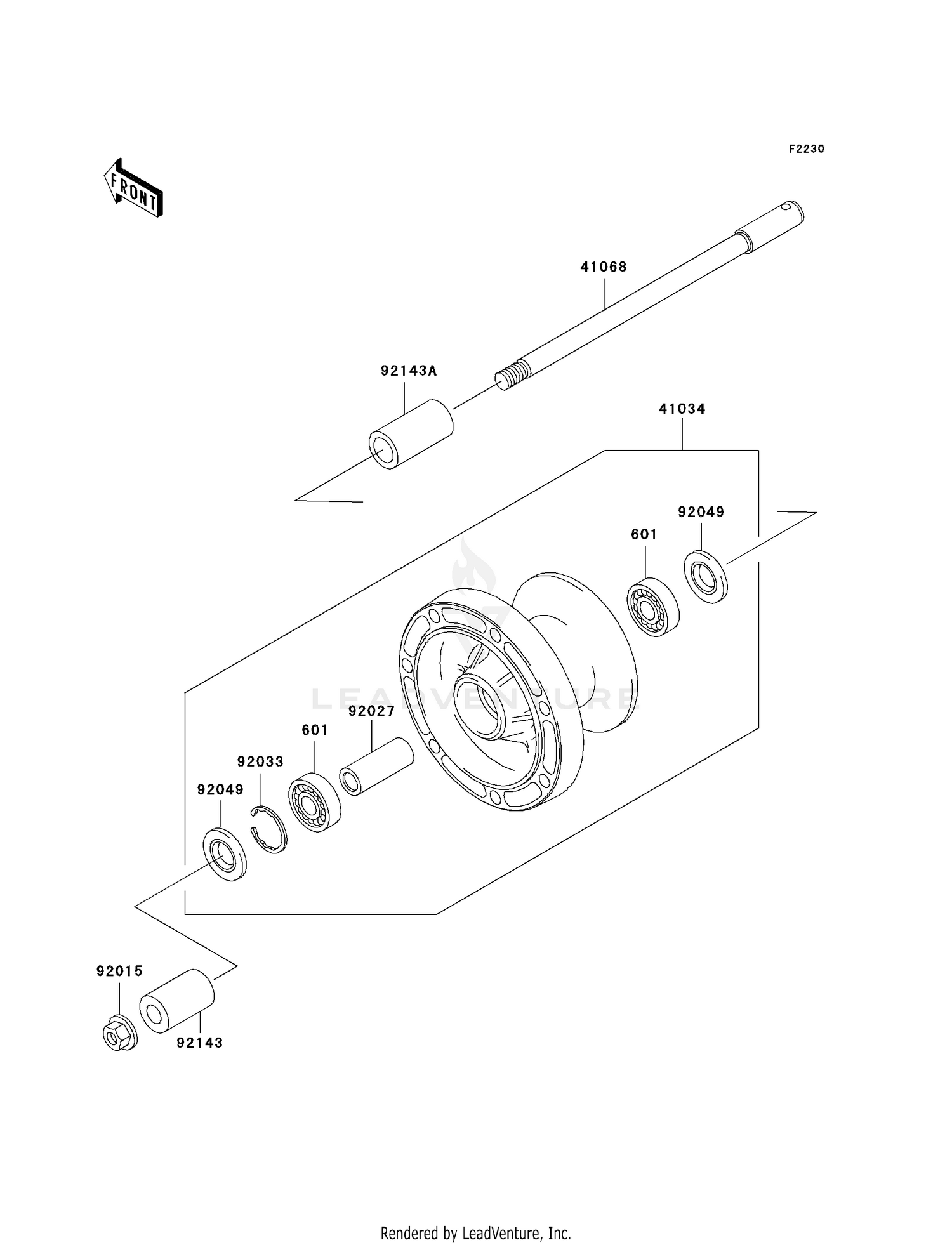

FRONT WHEEL
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 601 | 601B6004UU | BEARING-BALL,#6004UUC3 Price: $28.82 |
| 41034 | 41034-1266 | DRUM-ASSY,FRONT BRAKE Price: $756.59 |
| 41068 | 41068-0058 | AXLE,FR Price: $75.55 |
| 92015 | 92015-1993 | NUT,FLANGED,18MM Price: $9.51 |
| 92027 | 92027-1752 | COLLAR,20.2X28X70 Price: $18.57 |
| 92033 | 92033-1041 | RING-SNAP,42MM Price: $6.16 |
| 92049 | 92049-1057 | SEAL-OIL,BJN30427-C3 Price: $9.28 |
| 92143 | 92143-1837 | COLLAR,FR AXLE,LH,L=4 Price: $36.45 |
