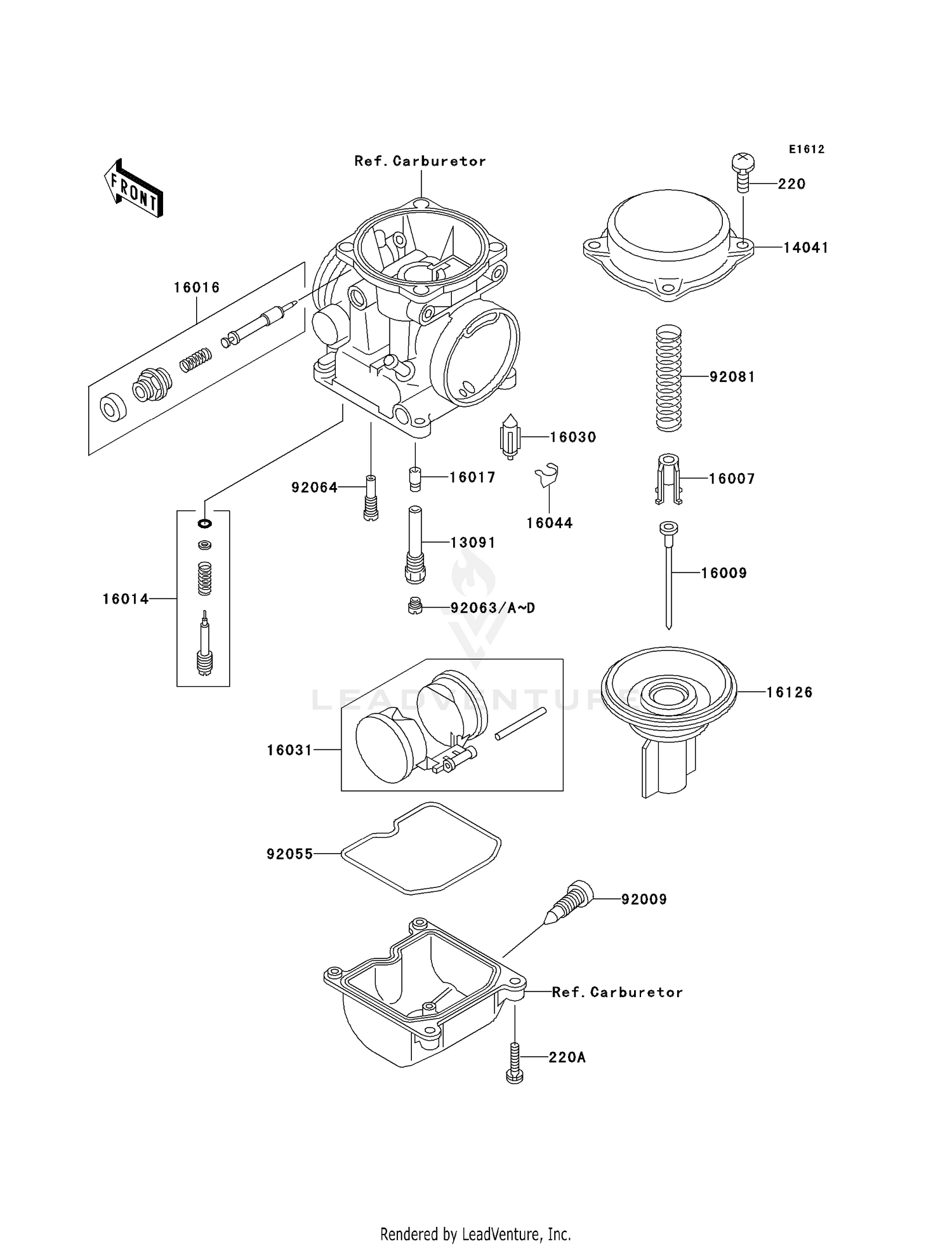

CARBURETOR PARTS
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 220 | 220AA0408 | SCREW-PAN-CROS,4X8 Price: $0.68 |
| 220A | 220AA0414 | SCREW-PAN-CROS Price: $4.60 |
| 13091 | 13091-1713 | HOLDER Price: $30.79 |
| 14041 | 14041-1076 | TOP-CHAMBER Price: $95.95 |
| 16007 | 16007-1120 | SEAT-SPRING Price: $26.23 |
| 16009 | 16009-1895 | NEEDLE-JET,N2WE Price: $35.50 |
| 16014 | 16014-1081 | SCREW-PILOT AIR Price: $24.57 |
| 16016 | 16016-1092 | PLUNGER Price: $59.33 |
| 16017 | 16017-1376 | JET-NEEDLE Price: $48.24 |
| 16030 | 16030-1007 | VALVE-FLOAT Price: $47.99 |
| 16031 | 16031-1077 | FLOAT Price: $53.59 |
| 16044 | 16044-007 | CLAMP,FLOAT VALVE Price: $7.91 |
| 16126 | 16126-1160 | VALVE,VACUUM Price: $200.34 |
| 92009 | 92009-1551 | SCREW,DRAIN,6X0.75 Price: $9.91 |
| 92055 | 92055-1222 | RING-O,FLOAT CHAMBER Price: $17.44 |
| 92063C | 92063-1115 | JET-MAIN,#102 This part replaces 92063-1090. Price: $15.04 |
| 92064 | 92064-1101 | JET-PILOT,#35 Price: $17.03 |
