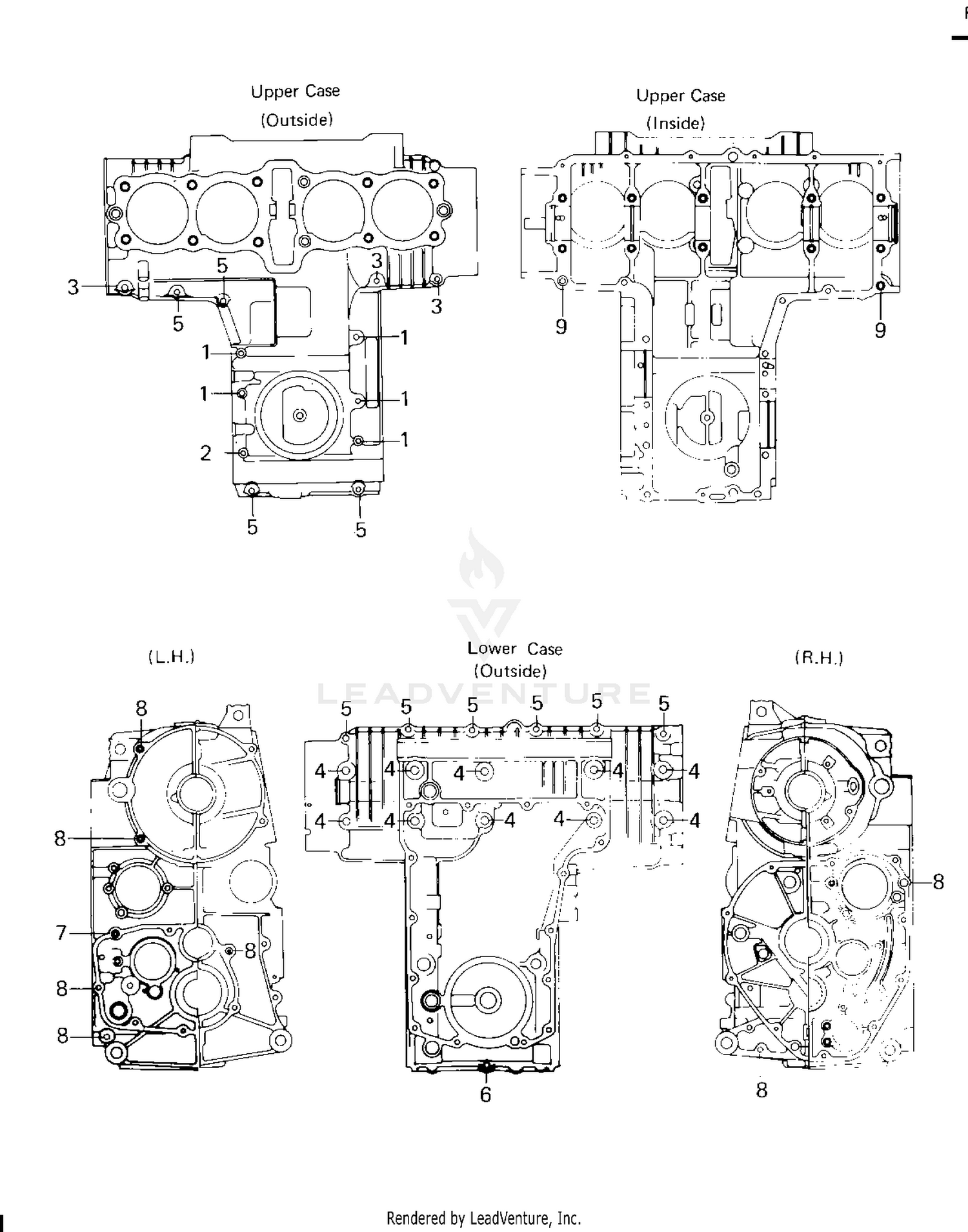

CRANKCASE BOLT & STUD PATTERN
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92003-111 | BOLT,HEX HEAD,6X99 Price: $3.88 |
| 2 | 92003-113 | BOLT,HEX HEAD,6X116 Price: $5.03 |
| 3 | 130BA0650 | BOLT-FLANGED,6X50 This part replaces 130G0650. Price: $1.03 |
| 4 | 130CA0895 | BOLT-FLANGED,8X95 This part replaces 130P0895. Price: $11.40 |
| 5 | 92003-109 | BOLT,HEX HEAD,6X41 Price: $6.67 |
| 6 | 92003-194 | BOLT,6X105 Price: $3.11 |
| 7 | 551A0614 | PIN-DOWEL,6X14 Price: $3.92 |
| 8 | 92042-007 | PIN,DOWEL,6.3X8X14 Price: $5.70 |
