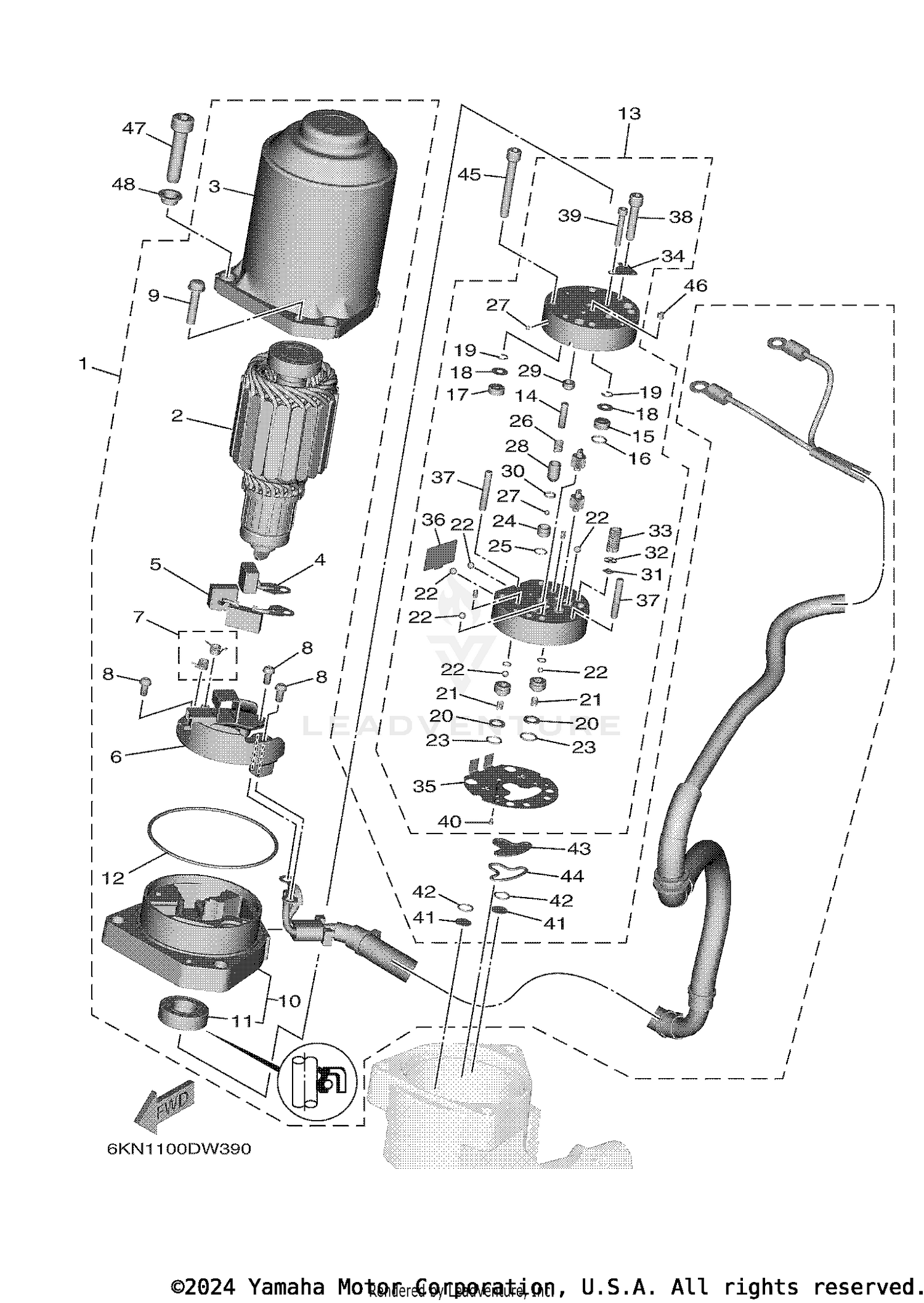

| Ref | Part Number | Description |
|---|
| 1 |
6KN-43880-00-00 |
MOTOR ASSY Price: $617.40 |
| 2 |
6GR-43805-00-00 |
ARMATURE ASSY Price: $602.30 |
| 3 |
6GR-43804-00-00 |
STATOR ASSY Price: $442.60 |
| 4 |
6GR-43892-00-00 |
BRUSH 2 Price: $36.00 |
| 5 |
6GR-82181-00-00 |
CIRCUIT BREAKER COMP Price: $198.85 |
| 6 |
6GR-4380F-00-00 |
PLATE, BRUSH HOLDER Price: $125.70 |
| 7 |
6GR-4386K-00-00 |
SPRING, BRUSH Price: $63.60 |
| 8 |
98507-04010-00 |
SCREW, PAN HEAD This part replaces 97602-04310-00. Price: $3.55 |
| 9 |
67C-43879-10-00 |
SCREW, WITH WASHER Price: $4.20 |
| 13 |
6GR-43830-00-00 |
GEAR PUMP ASSY Price: $374.80 |
| 14 |
93603-08072-00 |
PIN,DOWEL Price: $3.65 |
| 15 |
6CJ-43841-00-00 |
PISTON, SHUTTLE Price: $13.75 |
| 16 |
6H1-43883-00-00 |
O-RING Price: $3.55 |
| 17 |
6CJ-4384M-00-00 |
PISTON, SHUTTLE 2 Price: $23.55 |
| 18 |
69A-4384F-00-00 |
SEAL, MAIN VALVE Price: $3.55 |
| 19 |
99080-03600-00 |
CIRCLIP This part replaces 99002-03600-00. Price: $3.55 |
| 20 |
6C6-4387G-00-00 |
WASHER Price: $7.45 |
| 21 |
6C6-43853-00-00 |
SPRING, MAIN VALVE Price: $2.85 |
| 22 |
93505-32038-00 |
BALL Price: $0.50 |
| 23 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 24 |
6GR-43851-00-00 |
SEAT, RELIEF VALVE Price: $6.15 |
| 25 |
93210-06519-00 |
O-RING This part replaces 93210-064A5-00. Price: $4.40 |
| 26 |
6C5-43855-10-00 |
SPRING, UP RELIEF Price: $4.05 |
| 27 |
93501-08001-00 |
BALL Price: $1.15 |
| 28 |
6D8-43844-00-00 |
PIN, VALVE SUPPORT Price: $5.95 |
| 29 |
6D8-43843-00-00 |
SCREW, VALVE LOCK Price: $5.55 |
| 30 |
93210-04N51-00 |
O-RING Price: $5.95 |
| 31 |
6H1-4384G-11-00 |
SEAL, RELIEF VALVE Price: $11.40 |
| 32 |
6H1-43844-10-00 |
PIN, VALVE SUPPORT Price: $13.35 |
| 33 |
6GR-43856-00-00 |
SPRING, DOWN RELIEF Price: $4.50 |
| 34 |
6D8-4382L-00-00 |
CAP, RELIEF VALVE Price: $2.40 |
| 35 |
6GR-43895-00-00 |
SEAT, RELIEF VALVE Price: $17.85 |
| 36 |
6C5-43854-00-00 |
SPRING, MANUAL RELEASE Price: $8.85 |
| 37 |
93604-26256-00 |
PIN, DOWEL Price: $1.00 |
| 38 |
91318-05030-00 |
BOLT Price: $2.30 |
| 39 |
91318-03025-00 |
BOLT Price: $1.55 |
| 40 |
91318-03005-00 |
BOLT Price: $2.30 |
| 41 |
6C5-43817-10-00 |
FILTER 2 This part replaces 6C6-43817-00-00. Price: $6.95 |
| 42 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 43 |
6C5-43816-00-00 |
FILTER 1 Price: $16.60 |
| 44 |
6C5-4380G-00-00 |
PLATE Price: $3.55 |
| 45 |
91318-05045-00 |
BOLT Price: $2.05 |
| 46 |
69J-43831-00-00 |
CONNECTOR, SHAFT Price: $43.65 |
| 47 |
90110-08M05-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.25 |
