| Ref | Part Number | Description |
|---|
| 2 |
417223233 |
FIXED FLANGE ASS'Y - Call your local BRP dealership This part replaces 417222969. Price: $344.99 |
| 4 |
417222758 |
Bushing Price: $22.49 |
| 5 |
219702967 |
Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118. Price: $47.99 |
| 6 |
293370037 |
Circlip Price: $3.29 |
| 7 |
417222671 |
Lever Price: $49.99 |
| 8 |
417222947 |
Roller Price: $21.99 |
| 9 |
417004302 |
Stopper Washer Price: $15.99 |
| 10 |
417222594 |
Pin Price: $15.49 |
| 11 |
250400060 |
Cotter Pin This part replaces 732958001. Price: $2.09 |
| 12 |
417223164 |
Lever Axle This part replaces 417009202. Price: $4.59 |
| 13 |
417222312 |
Spring Seat Price: $9.79 |
| 14 |
414817500 |
CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership Price: $33.99 |
| 16 |
417009204 |
Bushing Price: $17.49 |
| 17 |
413703100 |
Loctite 609, 10 ml Price: $26.99 |
| 18 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 Price: $2.89 |
| 19 |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 20 |
417223034 |
GOVERNOR CUP ASS'Y - Call your local BRP dealership Price: $384.99 |
| 21 |
417222940 |
RAMP 616 - Call your local BRP dealership Price: $33.99 |
| 22 |
250400050 |
Spring Pin M10 X 22 This part replaces 250400009. Price: $3.09 |
| 23 |
250000418 |
Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. Price: $4.19 |
| 24 |
417222955 |
CALIBRATION SCREW - Call your local BRP dealership Price: $35.99 |
| 25 |
417005600 |
Washer Price: $4.19 |
| 26 |
233061414 |
Hex. Flange Nut M6 Price: $1.69 |
| 27 |
732401030 |
O-Ring Price: $1.19 |
| 28 |
417223021 |
Slider Shoe This part replaces 420460045. Price: $5.99 |
| 29 |
417009205 |
Guard Price: $21.99 |
| 30 |
250000412 |
Hex. Flange Screw M6 X 12, Scotch Grip This part replaces 210361296. Price: $4.19 |
| 31 |
250200006 |
Spring Washer 14 mm Price: $7.19 |
| 32 |
417120000 |
Drive Pulley Bolt Price: $66.99 |
| 33 |
417127022 |
FIXED FLANGE ASS'Y - Call your local BRP dealership Price: $261.99 |
| 34 |
250000408 |
Screw Socket Set DIN.913 S.Grip This part replaces 206262599. Price: $4.19 |
| 35 |
233061414 |
Hex. Flange Nut M6 Price: $1.69 |
| 37 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership Price: $4.65 |
| 38 |
417126374 |
Front Cam Slider Shoe, Black Price: $3.49 |
| 39 |
417126901 |
BUSHING - Call your local BRP dealership Price: $11.99 |
| 40 |
417126902 |
BUSHING - Call your local BRP dealership Price: $41.99 |
| 41 |
413408300 |
Loctite, Black Max, 3 ml Price: $26.99 |
| 42 |
371911200 |
CIRCLIP - Call your local BRP dealership Price: $4.19 |
| 43 |
417126878 |
CIRCLIP - Call your local BRP dealership Price: $10.99 |
| 44 |
417126445 |
CAM ASS'Y - Call your local BRP dealership Price: $164.99 |
| 45 |
417126381 |
GUARD - Call your local BRP dealership Price: $8.59 |
| 46 |
504099600 |
STOPPER WASHER - Call your local BRP dealership Price: $6.29 |
| 47 |
417126735 |
Release Spring, pink Price: $31.99 |
| 48 |
417126733 |
SPACER - Call your local BRP dealership Price: $13.49 |
| 49 |
417126734 |
HALF KEY - Call your local BRP dealership Price: $9.29 |
| 50 |
504112300 |
SHIM - Call your local BRP dealership Price: $6.29 |
| 51 |
417300252 |
Spacer Price: $5.59 |
| 52 |
417300265 |
Spacer Price: $2.39 |
| 53 |
417300252 |
Spacer Price: $5.59 |
| 54 |
504112000 |
Shim Price: $8.79 |
| 55 |
417300238 |
PROTECTOR - Call your local BRP dealership Price: $8.99 |
| 56 |
517302322 |
Strength Washer Price: $12.99 |
| 57 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership Price: $1.59 |
| 58 |
293800060 |
Loctite 243, 10 ml Price: $21.49 |
| 59 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership Price: $25.99 |
| 60 |
417300586 |
Drive Belt This part replaces 417300197. Price: $154.99 |
| 61 |
417300323 |
BELT GUARD - Call your local BRP dealership Price: $69.99 |
| 63 |
417300246 |
Foam Price: Call Us |
| 64 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership Price: $0.01 |
| 65 |
114045200 |
Hair Pin Price: $11.49 |

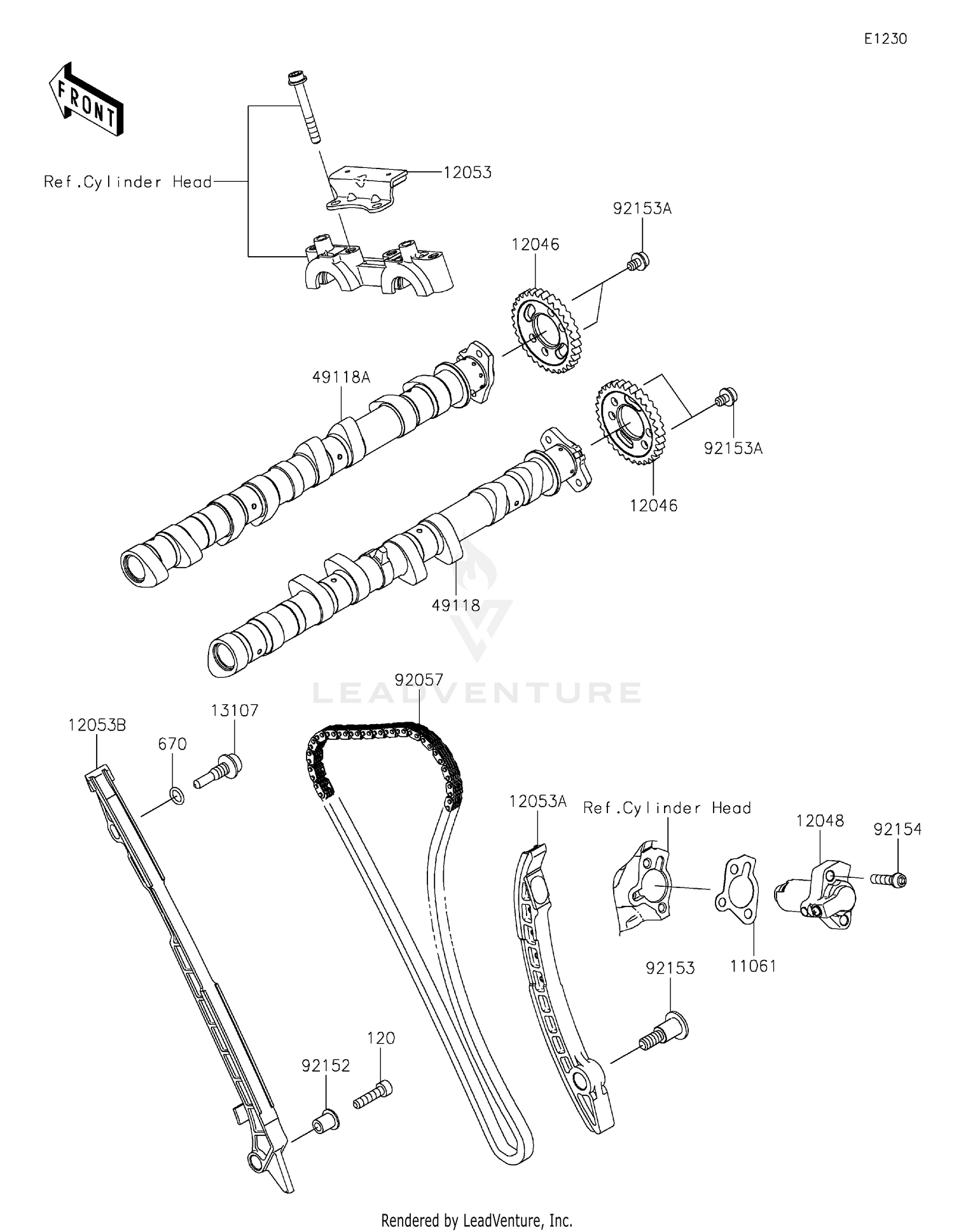

| 120 |
120CA0625 |
BOLT-SOCKET,6X25 Price: $2.06 |
| 11061 |
11061-0796 |
GASKET,TENSIONER Price: $2.64 |
| 12046 |
12046-0601 |
SPROCKET,32T Price: $52.85 |
| 12048 |
12048-0120 |
TENSIONER-ASSY This part replaces 12048-0101. Price: $185.93 |
| 12053 |
12053-0297 |
GUIDE-CHAIN,UPP This part replaces 12053-0041. Price: $45.48 |
| 12053A |
12053-0333 |
GUIDE-CHAIN,RR This part replaces 12053-0217. Price: $113.02 |
| 12053B |
12053-0251 |
GUIDE-CHAIN,FR Price: $75.36 |
| 13107 |
13107-0157 |
SHAFT,CHAIN GUIDE Price: $10.65 |
| 49118 |
49118-0890 |
CAMSHAFT-COMP,INTAKE Price: $647.36 |
| 49118A |
49118-0891 |
CAMSHAFT-COMP,EXHAUST Price: $647.36 |
| 92057 |
92057-0202 |
CHAIN,98XRH2015-126M Price: $110.12 |
| 92152 |
92152-0413 |
COLLAR Price: $8.68 |
| 92153 |
92153-0446 |
BOLT,SOCKET,8X16.7 Price: $10.11 |
| 92153A |
92153-0455 |
BOLT,FLANGED,6X8 Price: $2.55 |
| 92154 |
92154-1457 |
BOLT,SOCKET,6X25 Price: $1.48 |
