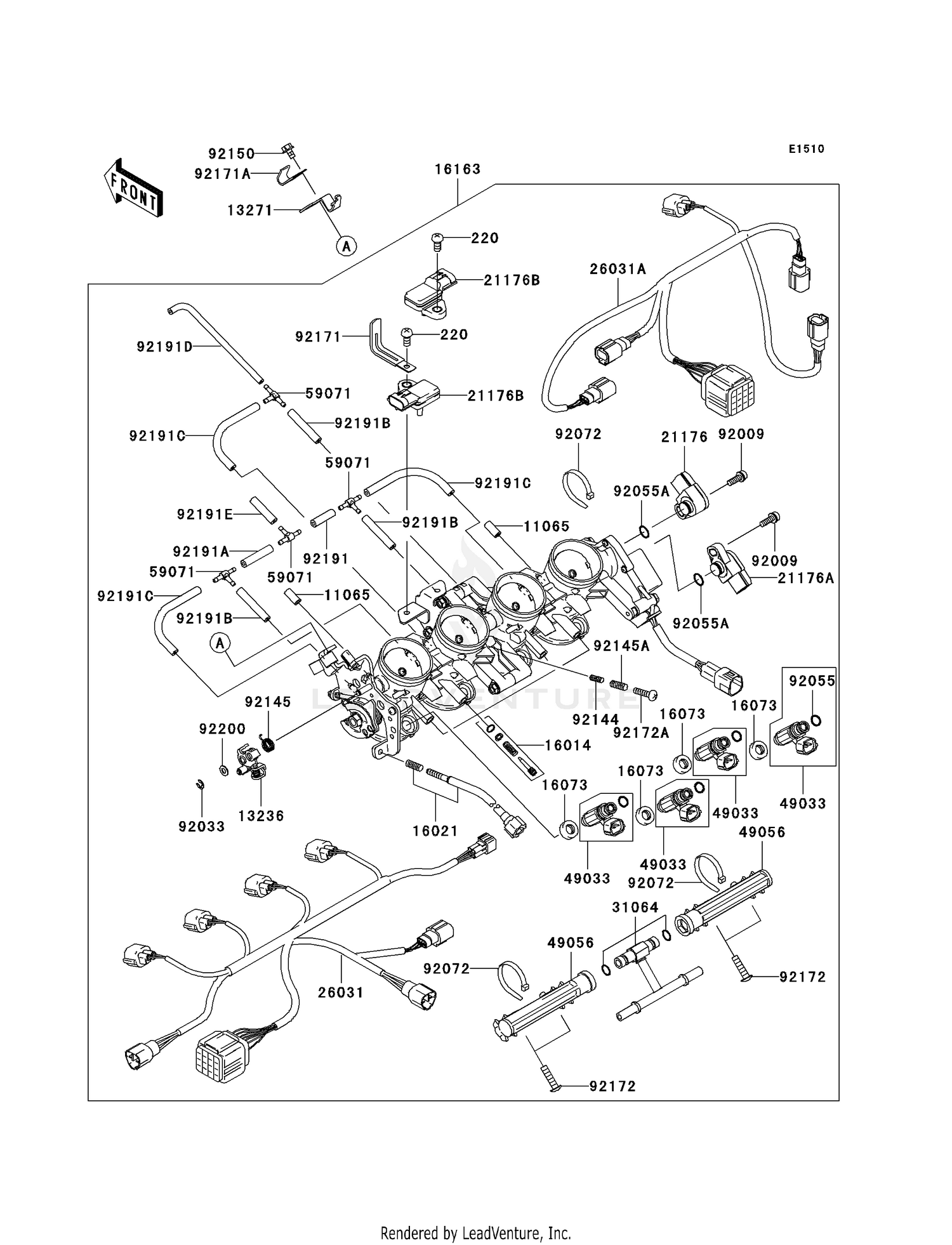

| Ref | Part Number | Description |
|---|
| 220 |
220AB0612 |
SCREW-PAN-CROS,6X12 This part replaces 220C0612. Price: $4.67 |
| 11065 |
11065-0018 |
CAP Price: $6.12 |
| 13236 |
13236-0014 |
LEVER-COMP,FAST IDLE Price: $71.24 |
| 13271 |
13271-0098 |
PLATE Price: $6.58 |
| 16014 |
16014-0002 |
SCREW-PILOT AIR Price: $25.16 |
| 16021 |
16021-0001 |
SCREW-THROTTLE STOP Price: $122.96 |
| 16073 |
16073-3707 |
INSULATOR Price: $6.18 |
| 16163 |
16163-0036 |
THROTTLE-ASSY Price: $2,080.26 |
| 21176 |
21176-0001 |
SENSOR,TPS,SUB Price: $228.63 |
| 21176A |
21176-0002 |
SENSOR,TPS,MAIN Price: $217.59 |
| 21176B |
21176-0058 |
SENSOR,PRESSURE This part replaces 21176-1118. Price: $141.24 |
| 26031 |
26031-0146 |
HARNESS Price: $138.40 |
| 26031A |
26031-1081 |
HARNESS Price: $71.98 |
| 31064 |
31064-0018 |
PIPE-COMP,FUEL Price: $106.68 |
| 49033 |
49033-0006 |
NOZZLE-INJECTION Price: $150.45 |
| 49056 |
49056-0001 |
PIPE-INJECTION Price: $103.85 |
| 59071 |
59071-3752 |
JOINT,3WAY,T Price: $10.19 |
| 92009 |
92009-1981 |
SCREW,THROTTLE SENSOR Price: $2.41 |
| 92033 |
92033-0004 |
RING-SNAP,FAST IDLE Price: $2.78 |
| 92055 |
92055-1622 |
RING-O,INJECTION NOZZLE Price: $1.95 |
| 92055A |
92055-1671 |
RING-O Price: $3.73 |
| 92072 |
92072-0012 |
BAND,SUB-HARNESS Price: $5.00 |
| 92144 |
92144-1451 |
SPRING Price: $9.58 |
| 92145 |
92145-0054 |
SPRING,FAST IDLE Price: $21.49 |
| 92145A |
92145-0055 |
SPRING,THROTTLE SYNCR Price: $16.26 |
| 92150 |
92150-1406 |
BOLT,5X8 Price: $3.94 |
| 92171 |
92171-0112 |
CLAMP Price: $7.55 |
| 92171A |
92171-1539 |
CLAMP Price: $2.80 |
| 92172 |
92172-0064 |
SCREW,PIPE INJECTION Price: $2.80 |
| 92172A |
92172-0065 |
SCREW,THROTTLE SYNCRO Price: $3.04 |
| 92191 |
92191-0020 |
TUBE,3X7X25 Price: $2.39 |
| 92191A |
92191-0021 |
TUBE Price: $2.83 |
| 92191B |
92191-0022 |
TUBE,3X7X40 Price: $3.23 |
| 92191C |
92191-0023 |
TUBE,3X7X100 Price: $4.14 |
| 92191D |
92191-0024 |
TUBE Price: $6.86 |
| 92191E |
92191-0025 |
TUBE Price: $2.43 |
