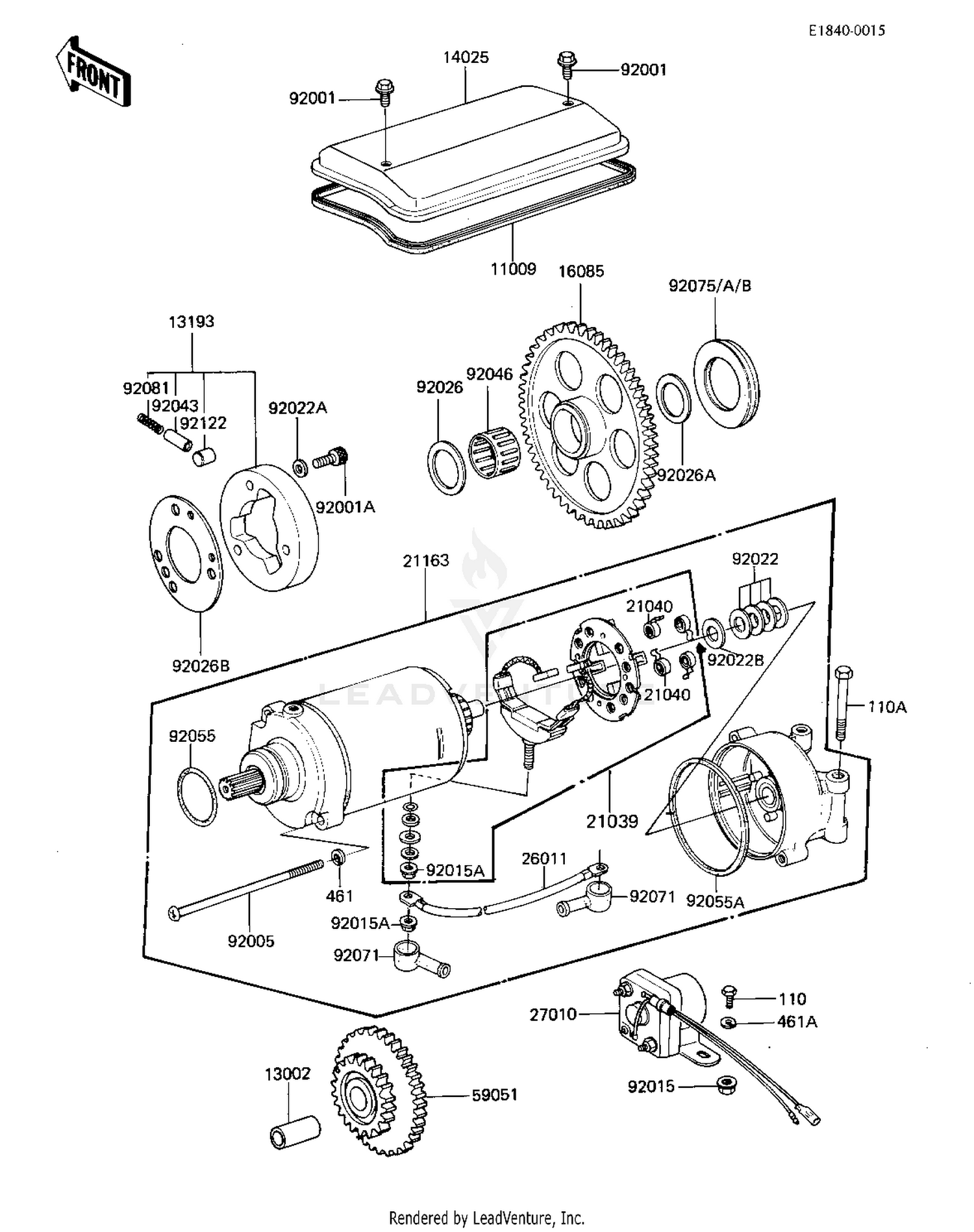

| Ref | Part Number | Description |
|---|
| 110 |
112BA0612 |
BOLT-UPSET This part replaces 110B0612. Price: $1.49 |
| 110A |
92001-1456 |
BOLT,EXCLUSIVE This part replaces 110B0655. Price: $4.90 |
| 461 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 11009 |
21166-001 |
GASKET,START MOTOR CV Price: $36.70 |
| 13002 |
13002-007 |
PIN-PISTON Price: $18.23 |
| 13193 |
13193-1006 |
CLUTCH ASSY,STARTING Price: $178.91 |
| 14025 |
14025-1245 |
COVER Price: $44.12 |
| 16085 |
16085-1012 |
GEAR,STARTING CLUTCH Price: $231.82 |
| 21039 |
21039-1005 |
BRUSH SET,CARBON Price: $182.98 |
| 21040 |
21040-1002 |
SPRING,CARBON BRUSH Price: $11.17 |
| 21163 |
21163-1143 |
STARTER-ELECTRIC This part replaces 21163-1016. Price: $625.66 |
| 26011 |
26011-1135 |
WIRE-LEAD,START MOTOR Price: $74.28 |
| 27010 |
27010-1047 |
SWITCH,MAGNETIC Price: $153.85 |
| 59051 |
21167-002 |
GEAR,STARTING MOTOR Price: $117.48 |
| 92001 |
92001-1151 |
BOLT,6X10 Price: $5.01 |
| 92001A |
120CA0816 |
BOLT-SOCKET,8X16 This part replaces 92003-104. Price: $4.45 |
| 92009 |
21015-005 |
SCREW,PAN HEAD,6X110 Price: $9.81 |
| 92015 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015A |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1195. Price: $2.00 |
| 92022 |
21025-011 |
WASHER,9.1X18X0.2 Price: $6.22 |
| 92022A |
92022-1108 |
WASHER,8.5X13.5X2 Price: $4.31 |
| 92022B |
92022-1132 |
WASHER,9.1X18X0.8 Price: $6.22 |
| 92026 |
92026-1031 |
SPACER Price: $10.35 |
| 92026A |
92026-1033 |
SPACER Price: $7.58 |
| 92026B |
92026-112 |
PLATE,CLUTCH STARTER Price: $10.00 |
| 92043 |
92043-087 |
PIN Price: $12.76 |
| 92046 |
92046-1022 |
BEARING-NEEDLE,K253020S Price: $22.97 |
| 92055 |
92055-1276 |
RING-O This part replaces 21027-004. Price: $9.91 |
| 92071 |
21017-017 |
GROMMET,STARTER TERMINAL Price: $9.43 |
| 92075 |
92075-1129 |
DAMPER RUBBER,6.3T Price: $27.35 |
| 92075A |
92075-1130 |
DAMPER RUBBER,7.3T Price: $24.84 |
| 92075B |
92075-1131 |
DAMPER RUBBER,8.3T Price: $25.83 |
| 92081 |
92081-110 |
SPRING Price: $4.76 |
| 92122 |
92122-001 |
PIN Price: $11.60 |
