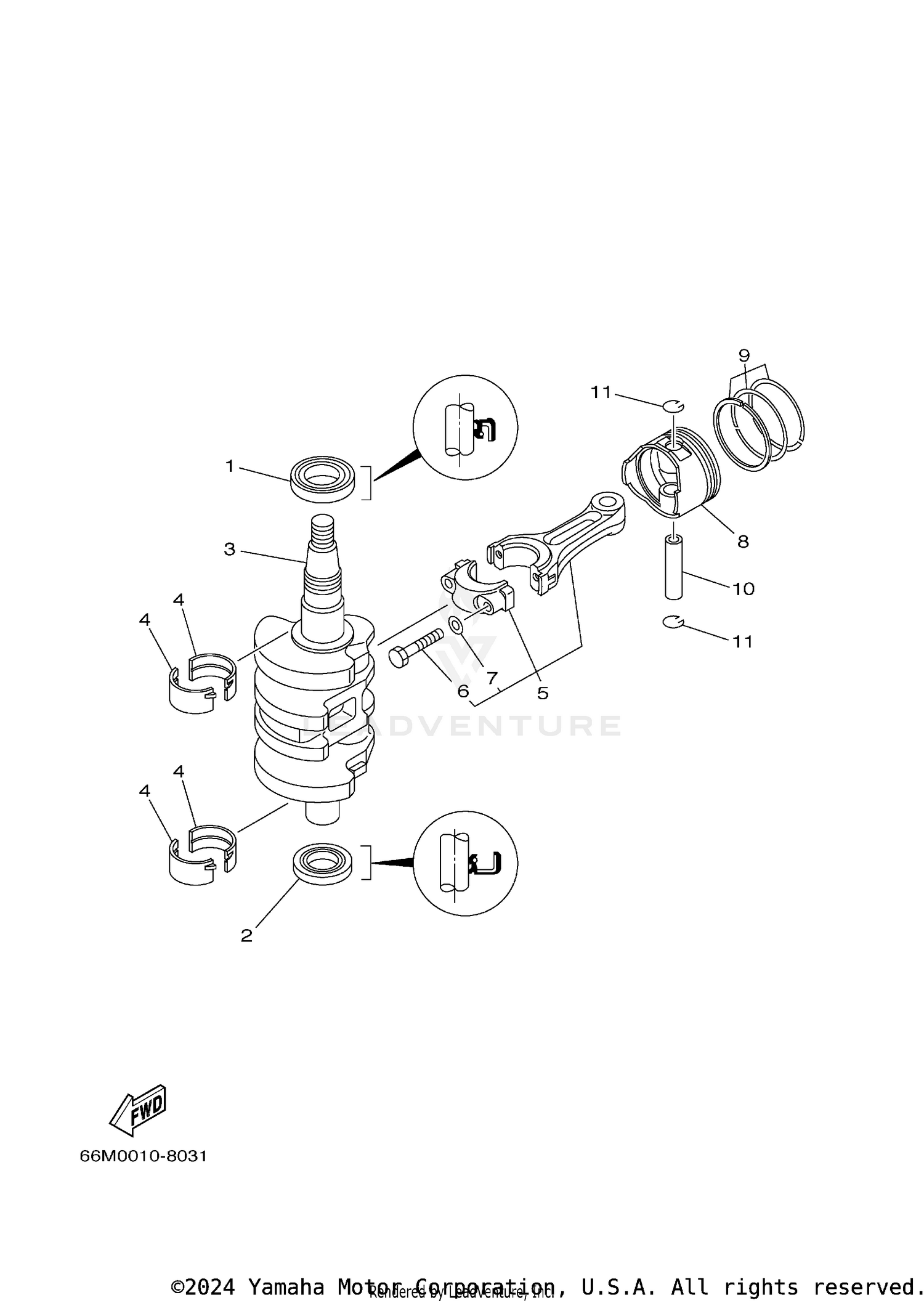

CRANKSHAFT PISTON
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93102-35M51-00 | OIL SEAL Price: $12.35 |
| 2 | 93102-25M52-00 | OIL SEAL Price: $12.35 |
| 3 | 66M-11411-00-00 | CRANKSHAFT Price: $564.75 |
| 5 | 66M-11650-00-00 | CONNECTING ROD ASSY Price: $135.05 |
| 6 | 66M-11654-00-00 | BOLT, CONNECTING ROD Price: $7.70 |
| 7 | 90201-07M01-00 | WASHER, PLATE Price: $2.55 |
| 8 | 66M-11631-00-96 | PISTON (STD) Price: $58.75 |
| 9 | 66N-11603-00-00 | PISTON RING SET (STD) This part replaces 66M-11603-00-00. Price: $42.55 |
| 10 | 634-11633-00-00 | PIN, PISTON Price: $12.60 |
