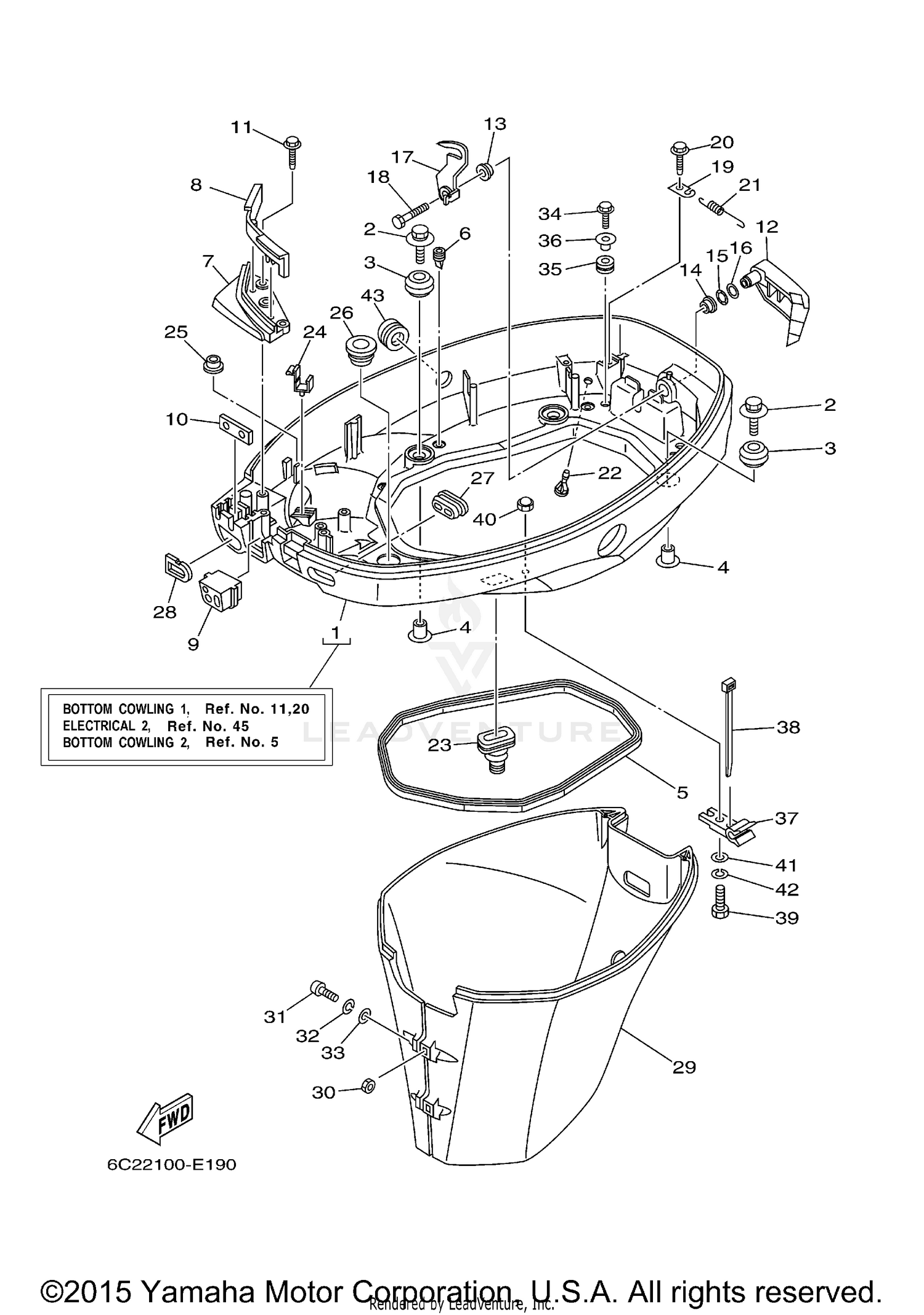

| Ref | Part Number | Description |
|---|
| 1 |
6C5-42710-10-8D |
BOTTOM COWLING ASSY Price: $333.35 |
| 2 |
90119-06295-00 |
BOLT, WITH WASHER This part replaces 90119-06M08-00. Price: $7.99 |
| 3 |
90480-09M12-00 |
GROMMET Price: $6.40 |
| 4 |
90387-06M69-00 |
COLLAR This part replaces 90387-06060-00. Price: $9.65 |
| 5 |
62Y-42716-01-00 |
RUBBER SEAL 1 This part replaces 62Y-42716-00-00. Price: $9.45 |
| 6 |
65W-42717-00-00 |
RUBBER, SEAL 2 Price: $6.70 |
| 7 |
6C5-42738-00-8D |
PLATE, FITTING Price: $30.55 |
| 8 |
6C5-42718-00-00 |
RUBBER, SEAL 3 Price: $6.55 |
| 9 |
6C5-42725-40-00 |
GROMMET This part replaces 6C5-42725-30-00. Price: $21.60 |
| 10 |
62Y-42727-01-00 |
GROMMET This part replaces 62Y-42727-00-00. Price: $6.75 |
| 11 |
90109-06M81-00 |
BOLT Price: $2.70 |
| 12 |
67C-42815-00-8D |
LEVER, CLAMP Price: $24.75 |
| 13 |
90386-12M37-00 |
BUSH Price: $16.60 |
| 14 |
90386-12MA2-00 |
BUSH Price: $5.50 |
| 15 |
90206-12052-00 |
WASHER, WAVE Price: $5.49 |
| 16 |
90201-12M07-00 |
WASHER, PLATE Price: $2.55 |
| 17 |
67C-42816-01-00 |
LEVER, CLAMP Price: $29.25 |
| 18 |
97D95-06014-00 |
BOLT, HEXAGON DEEP This part replaces 97095-06014-00. Price: $1.55 |
| 19 |
66T-43144-00-00 |
HOOK, SPRING Price: $6.25 |
| 20 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 21 |
90506-18M40-00 |
SPRING, TENSION Price: $5.50 |
| 22 |
6BL-44391-00-00 |
NIPPLE, HOSE This part replaces 6H3-44391-01-00. Price: $5.05 |
| 23 |
6BG-42724-01-00 |
GROMMET This part replaces 6C5-42724-00-00. Price: $10.10 |
| 24 |
90464-15M08-00 |
CLAMP This part replaces 90464-09M13-00. Price: $3.55 |
| 25 |
6E7-82317-00-00 |
DAMPER, IGNITION COIL Price: $6.30 |
| 26 |
68U-42727-01-00 |
GROMMET This part replaces 68U-42727-00-00. Price: $3.15 |
| 27 |
6H3-42727-01-00 |
GROMMET This part replaces 6H3-42727-00-00. Price: $1.85 |
| 28 |
61N-24329-01-00 |
SEAL This part replaces 61N-24329-00-00. Price: $7.30 |
| 29 |
67C-42741-10-8D |
APRON Price: $143.10 |
| 30 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 31 |
97885-06025-00 |
SCREW, PAN HEAD This part replaces 97880-06025-00. Price: $5.05 |
| 32 |
92995-06100-00 |
WASHER, SPRING This part replaces 92990-06100-00. Price: $3.45 |
| 33 |
92990-06600-00 |
WASHER, PLATE Price: $2.85 |
| 34 |
90109-06M80-00 |
BOLT Price: $2.95 |
| 35 |
90480-13M24-00 |
GROMMET Price: $9.05 |
| 36 |
90387-06M43-00 |
COLLAR Price: $8.85 |
| 37 |
90464-09M49-00 |
CLAMP Price: $4.60 |
| 38 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 39 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 40 |
95380-06800-00 |
NUT, CROWN Price: $9.49 |
| 41 |
92990-06600-00 |
WASHER, PLATE Price: $2.85 |
| 42 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
